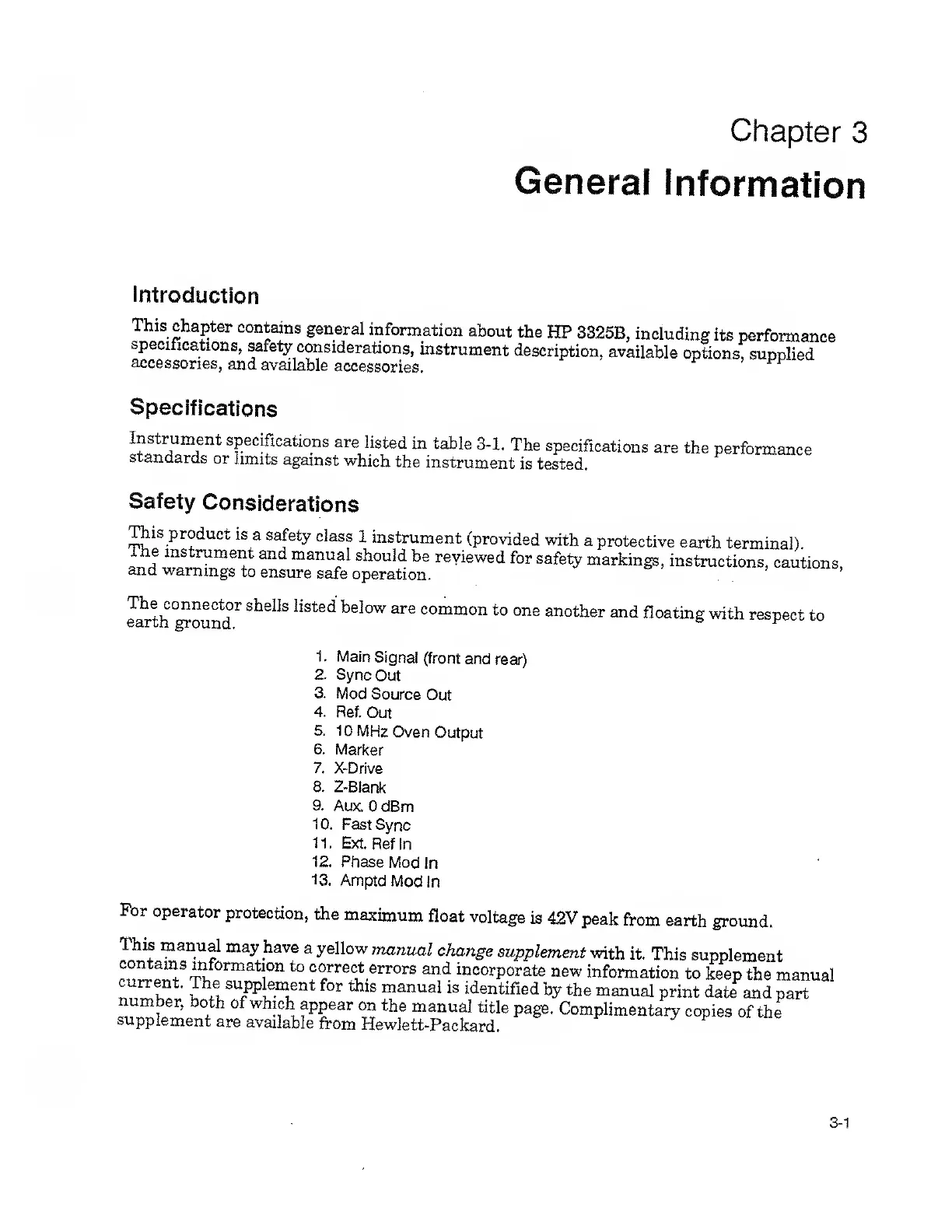

Chapter 3
General Information
Introduction
genial information about the HP 3325B, including its performance
specifications, safety considerations, instrument description, available options, supplied
accessories, and available accessories. ^
Specifications
Instrument specifications are listed in table 3-1. The specifications are the performance
standards or limits against which the instrument is tested.
Safety Considerations
This product is a s^ety class 1 instrument (provided with a protective earth terminal).
The instrument and manual should be reviewed for safety markings, instructions, cautions,
and warnings to ensure safe operation. , ’
The connector shells listed below are common to one another and floating with
earth ground. ^
respect to
1. Main Signal (front and rear)
2. Sync Out
3. Mod Source Out
4. Ref. Out
5. 10 MHz Oven Output
6. Marker
7. X-Drive
8. Z-Blank
9. Aux. 0 dBm
10. Fast Sync
11. Ext. Ref in
12. Phase Mod In
13. Amptd Mod in
For operator protection, the maximum float voltage is 42V peak from earth ground.
TOs manual may have a yellow manual change supplement with it. This supplement
contains information to correct errors and incorporate new information to keep the manual
I” identified by the manual print date and part
mber, both of which appear on the manual title page. Complimentary copies of the
supplement are available from Hewlett-Packard.
3-1
