Specifications

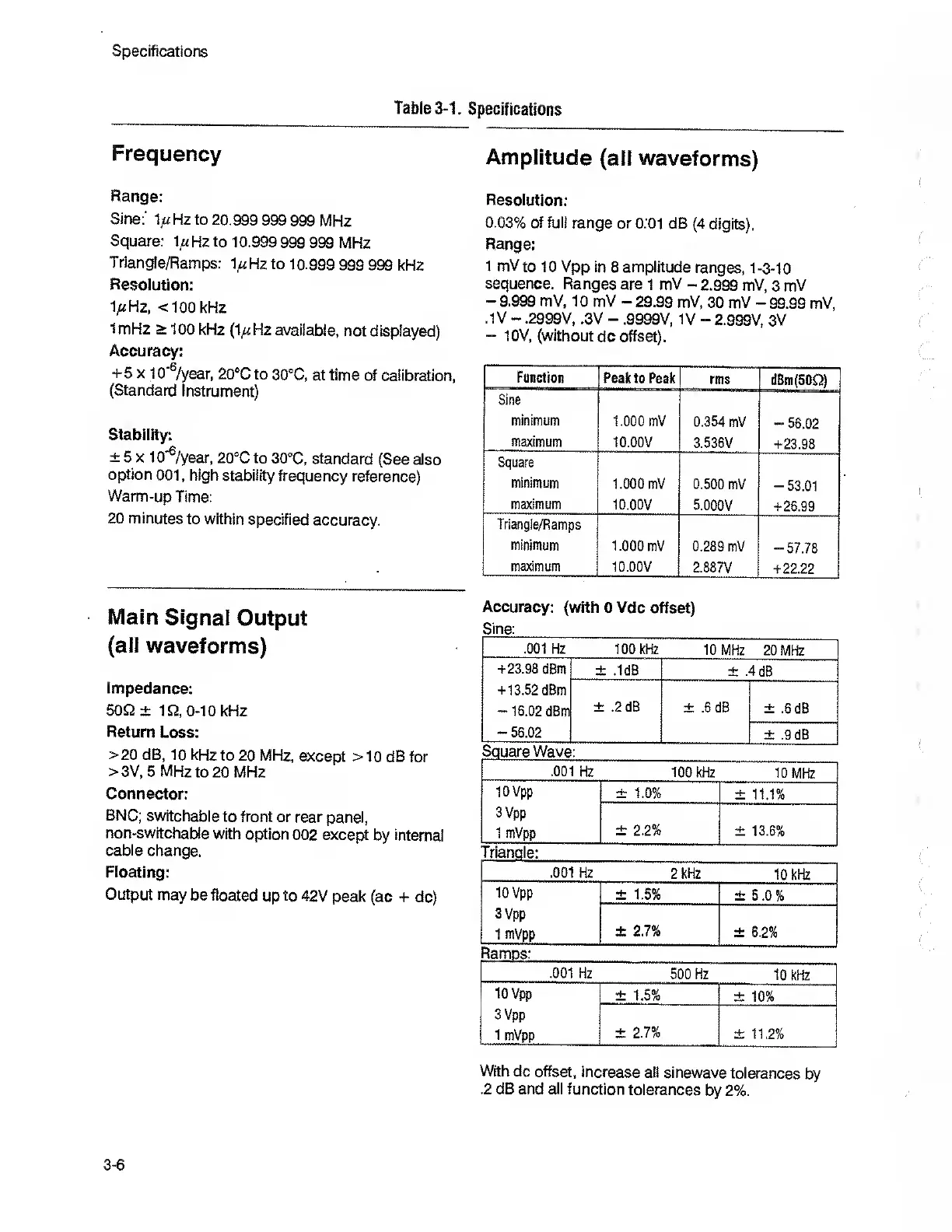

Table 3-1. Specifications
Frequency
Range:
Sine: l/f Hz to 20.999 999 999 MHz
Square: 1/^Hz to 10.999 999 999 MHz
Triangle/Ramps: Hz to 10.999 999 999 kHz
Resolution:
I^Hz, <100 kHz
imHz a 100 kHz (1/i Hz available, not displayed)
Accuracy:
+5x10'®/year, 20'’C to 30°C, at time of calibration,
(Standard Instrument)
Stability:
± 5 X 10"®/year, 20°C to 30°C, standard (See also
option 001, high stability frequency reference)
Warm-up Time:
20 minutes to within specified accuracy.
Main Signal Output
(all waveforms)
impedance:
50Q± 1Q, 0-10 kHz
Return Loss:
>20 dB, 10 kHz to 20 MHz, except > 10 dB for
>3V, 5 MHz to 20 MHz
Connector:
BNC; switchable to front or rear panel,
non-switchable with option 002 except by internal
cable change.
Floating:
Output may be floated up to 42V peak (ac + dc)
Amplitude (all waveforms)
Resolution:
0.03% of full range or 0;01 dB (4 digits).
Range:
1 mV to 10 Vpp in 8 amplitude ranges, 1-3-10
sequence. Ranges are 1 mV - 2.999 mV, 3 mV
- 9.999 mV, 10 mV - 29.99 mV, 30 mV - 99.99 mV,
.IV - .2999V, .3V - .9999V, IV - 2.999V. 3V
- 10V, (without dc offset).
Fynction
Peak to Peak
rms
ilBm(50Q)
Sine
minimum
maximum
1.000 mV
10.00V
0.354 mV
3.536V
^ 56.02
+23.98
Square
minimum
maximum
1.000 mV
10.00V
0.500 mV
5.000V
- 53.01
+26.99
Triangle/Ramps
minimum
maximum
1.000 mV
10.00V
0.289 mV
2.887V
- 57.78
+22.22
Accuracy: (with 0 Vdc offset)
Sine:
.001Hz 100 kHz 10 MHz 20 MHz
+23.98 dBm
+13.52 dBm
-16.02 dBm
- 56.02
± .IdB
± .4dB
± .2dB
± .6dB
± .6dB
± .9dB
Square Wave:
.001Hz 100 kHz 10 MHz
10 Vpp
3 Vpp
1 mVpp
± 1.0%
± 11.1%
± 2.2%
± 13.6%
Triangle:
.001 Hz
2 kHz
10 kHz
10 Vpp
± 1.5%
±5.0%
3 Vpp
1 mVpp
± 2.7%
± 6.2%
Ramos:
.001 Hz
500 Hz
10 kHz
10 Vpp
± 1.6%
± 10%
3 Vpp
1 mVpp
± 2.7%
± 11.2%
With dc offset, increase all sinewave tolerances by
.2 dB and all function tolerances by 2%.
3-6
