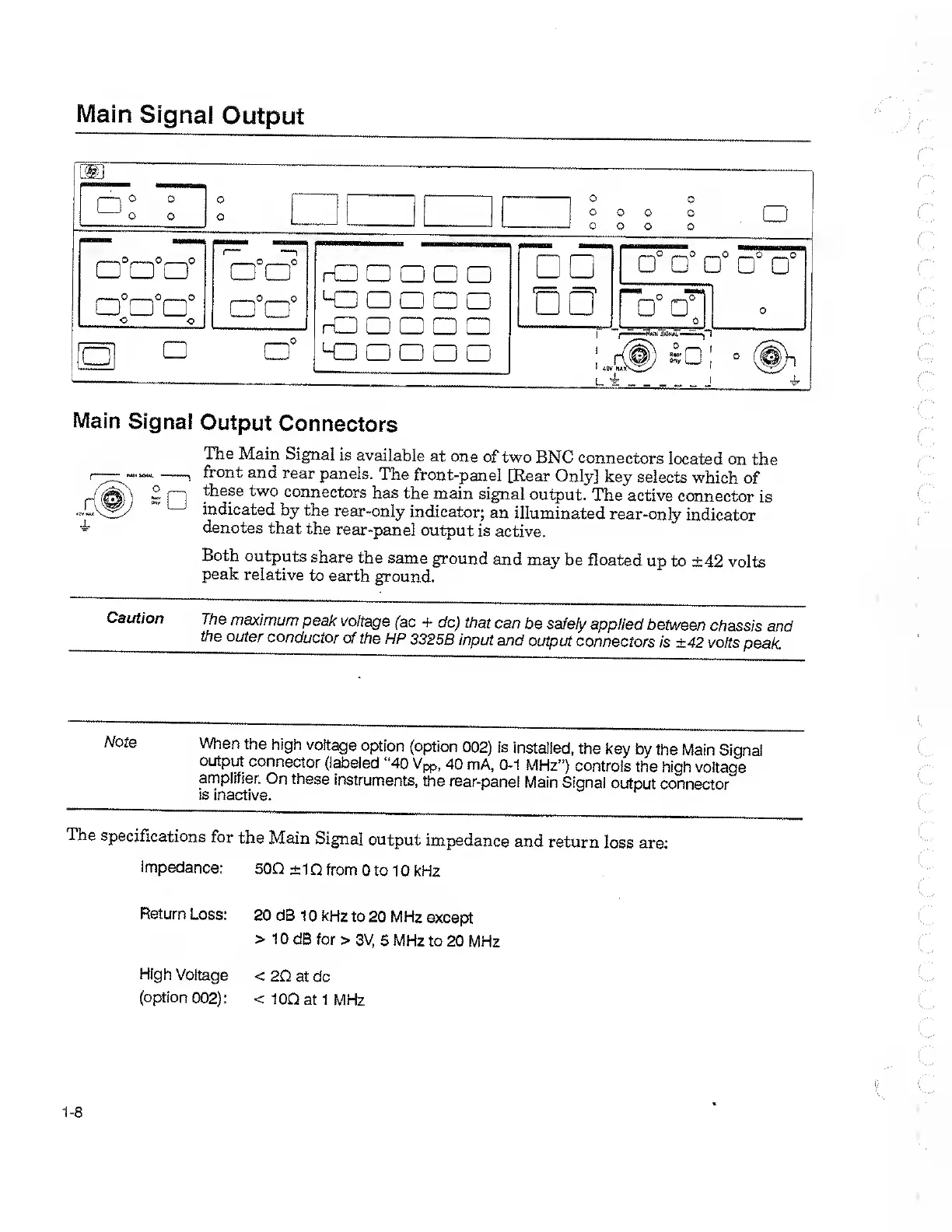

Main
Signal
Output
raaaaa
KZ]
n
Main
Signal
Output
Connectors
The
Main
Signal
is
available
at
one
of
two
BNC
connectors
located
on
the
I—,
front
and
rear
panels.
The
front-panel
[Rear
Only]
key
selects
which
of
S
rn
connectors
has
the
main
signal
output.
The
active
connector
is
indicated
by
the
rear-only
indicator;
an
illuminated
rear-only
indicator
4^
denotes
that
the
rear-panel
output
is
active.
Both
outputs
share
the
same
ground
and
may
be
floated
up
to
±42
volts
peak
relative
to
earth
ground.
Caution
The
maximum
peak
voltage
(ac
+
dc)
that
can
be
safely
applied
between
chassis
and
the
outer
conductor
of
the
HP
3225B
input
and
output
connectors
is
±42
volts
peak.
Note
When
the
high
voltage
option
(option
002)
is
installed,
the
key
by
the
Main
Signal
output
connector
(labeled
“40
Vpp,
40
mA,
0-1
MHz”)
controls
the
high
voltage
amplifier.
On
these
instruments,
the
rear-panel
Main
Signal
output
connector
is
inactive.
The
specifications
for
the
Main
Signal
output
impedance
and
return
loss
are:
Impedance:
500
±
10
from
0
to
10
kHz
Return
Loss;
20
dB
10
kHz
to
20
MHz
except
>
10
dB
for
>
3V,
5
MHz
to
20
MHz
High
Voltage
<
20
at
dc
(option
002);
<
100
at
1
MHz
