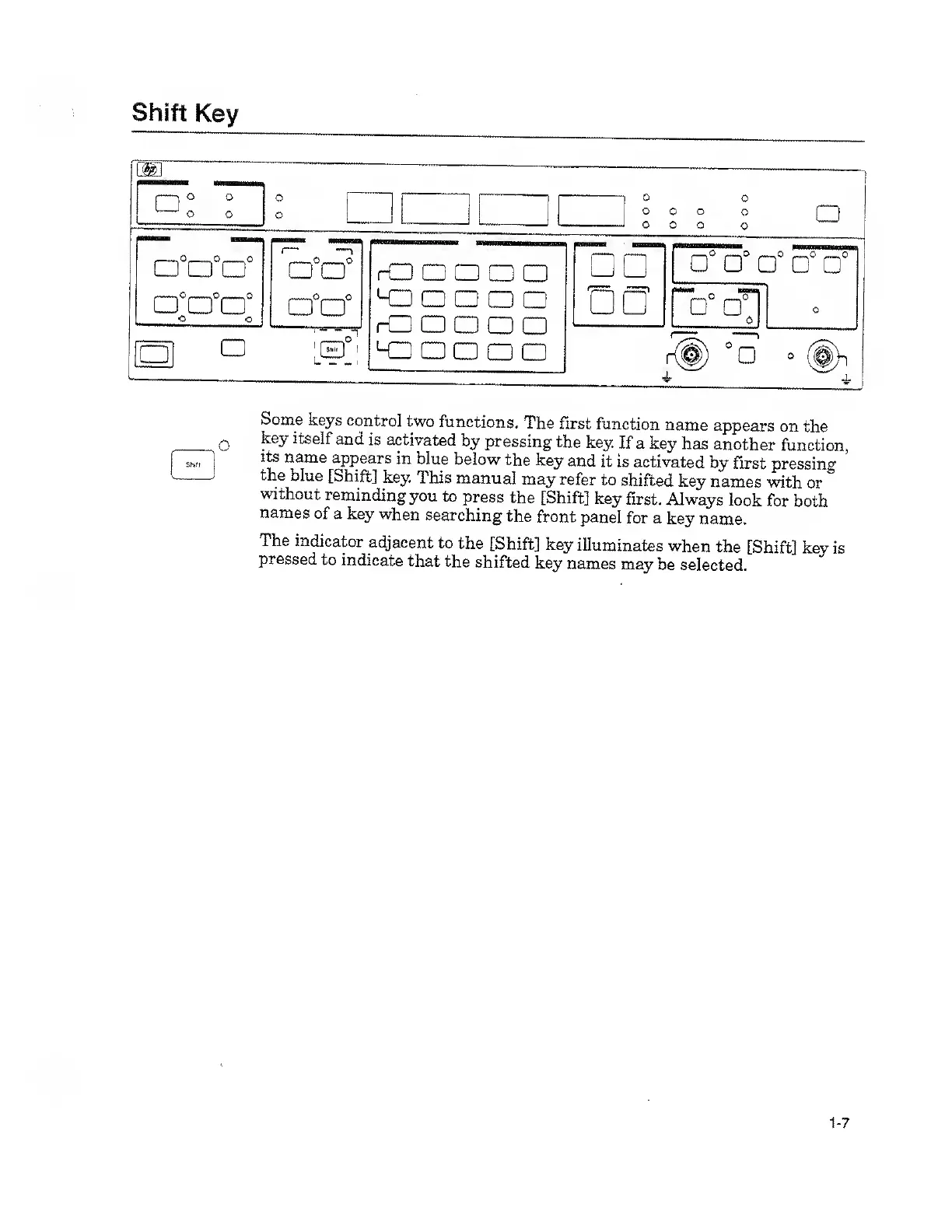

Shift
Key
Some
keys
control
two
functions.
The
first
function
name
appears
on
the
^
key
Itself
and
is
activated
by
pressing
the
key.
If
a
key
has
another
function,
its
name
appears
in
blue
below
the
key
and
it
is
activated
by
first
pressing
the
blue
[Shift]
key
This
manual
may
refer
to
shifted
key
names
with
or
without
reminding
you
to
press
the
[Shift]
key
first.
Always
look
for
both
names
of
a
key
when
searching
the
front
panel
for
a
key
name.
The
indicator
adjacent
to
the
[Shift]
key
illuminates
when
the
[Shift]
key
is
pressed
to
indicate
that
the
shifted
key
names
may
be
selected.
1-7
16
18
Table of Contents
Table of Contents
7
Operation and Reference
11
HP 3325B Turn-On and Warm-Up
11
Turn-On and Power-Up Seif Tests
11
Turn-On State.1-4
14
Power-Down State/Turn-On Preset.1-4
14
Warm-Up
14
The Preset State and the Instrument Preset Key.1-5
15
Shift Key.1-7
17
Main Signal Output
18
Main Signal Output Connectors
18
Selecting the Output Function
21
The Main Function Keys and Indicators
21
Data Entry and Modification
22
The Data Keys.1-12
22
Clear Display
23
Error Messages.1-13
23
Viewing Setup Parameters
24
Modifying Parameter Values.1-15
25
Frequency Step.1-15
25
The Entry Keys.1-16
26
Frequency
26
Amplitude.1-17
27
DC Offset
27
Phase.1-20
30
Asgnzero0.1-20
30
Introduction to Sweeps
31
Start Frequency.1-22
32
Stop Frequency.1-22
32
Time.1-22
32
Marker Frequency.1-23
33
Mkr
33
Reset/Start Sweep.1-24
34
Afx2, Af-I-2 (Modify Bandwidth).1-24
34
Single Sweep.1-24
34
Linear Frequency Sweeps.1-25
35
Log Frequency Sweep
35
Discrete Frequency Sweep.1-26
36
Modulation.1-28
38
Amplitude Modulation.1-28
38
Phase Modulation.1-29
39
Modulation Source.1-29
39
Arbitrary Waveforms
40
Disabling Modulation
40
Storing/Recalling Instrument States.1-31
41
Storing Instrument States.1-31
41
Recalling Instrument States.1-31
41
Memory Clear.1-31
41
Synchronization Outputs
42
External Reference or Oven-Stabilized Frequency Option.1-42
44
10 Mhz Oven Output (High-Stability Frequency Reference)
44
Remote Operation
45
Remote Operation Via HP
46
Description of the HP
46
Capabilities of the HP
46
Bus Structure.2-3
47
HP 3325B HP-Ib Capability.2-5
49
Talk/Listen Addresses.2-5
49
Viewing the HP 3325B HP-IB Address
50
Changing the HP-IB Address.2-7
51
Bus Commands
51
Masking the Status Byte
53
The Status Byte.2-10
54
Remote Operation Via RS-232 Interface
55
Description of the RS-232 Interface
55
The Cable
56
Setting the Switches
57
Remote and Local Functions
59
HP 3325B Remote Operation Command Set.2-16
60
Command Syntax
61
Interrogating the HP 3325B for Setup Parameters
63
Remote Operation Via RS-232 Interface
63
Command Reference
64
HP 3325A Compatibility
101
Example Programs.2-72
102
General Information
107
Introduction
107
Safety Considerations
107
Instrument Description.3-2
108
New or Enhanced Features Ofthehp3325B.3-3
109
Compatibility with the HP 3325A
110
Options.3-5
111
Accessories Supplied
111
Accessories Available
111
