Operation
and
Reference
Aux
0S8m
21-60MHZ
Output

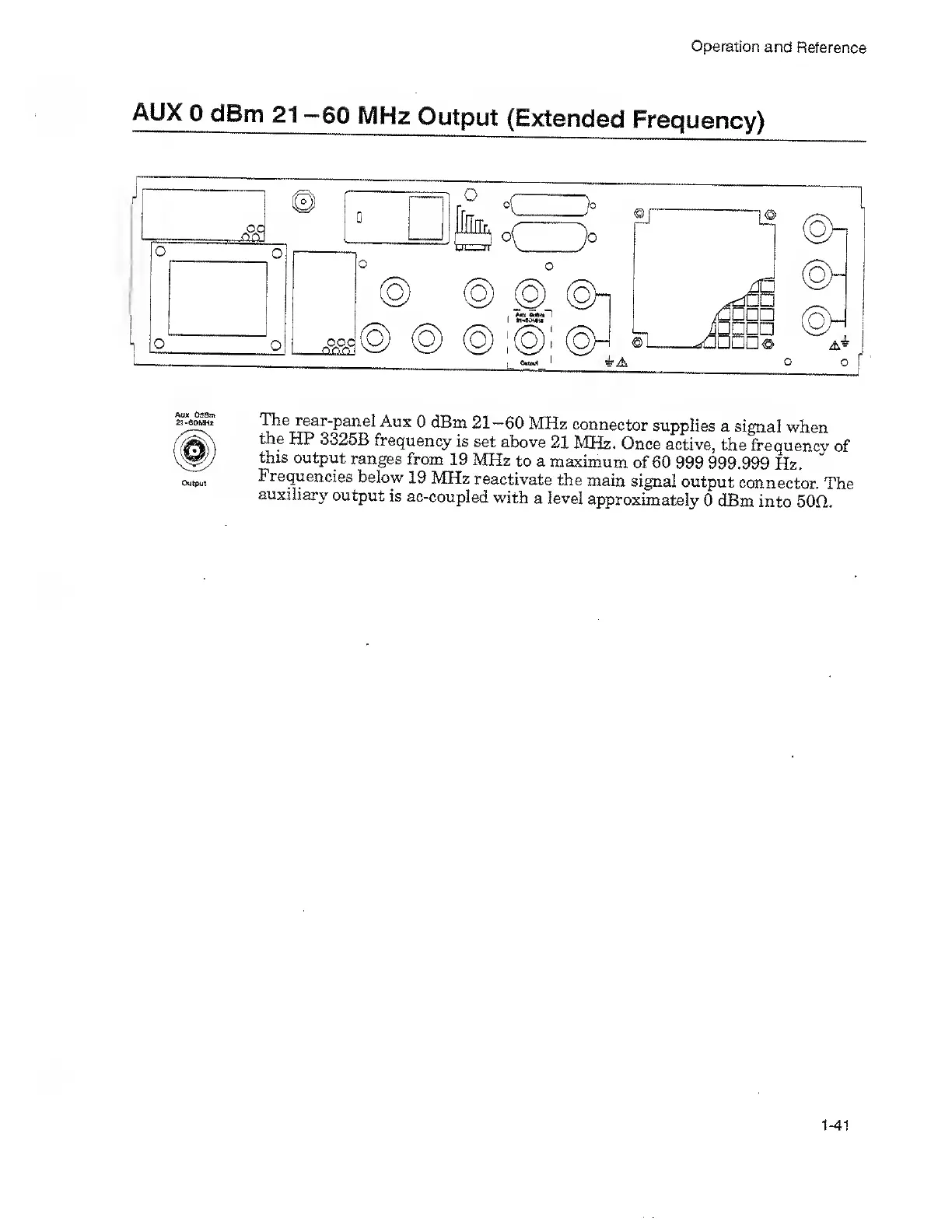

The
rear-panel
Aux
0
dBm
21—60
MHz
connector
supplies
a
signal
when
the
HP
3325B
frequency
is
set
above
21
MHz.
Once
active,
the
frequency
of
this
output
ranges
from
19
MHz
to
a
maximum
of
60
999
999.999
Hz.
Frequencies
below
19
MHz
reactivate
the
main
signal
output
connector.
The
auxiliary
output
is
ac-coupled
with
a
level
approximately
0
dBm
into
500.
1-41
42
44
