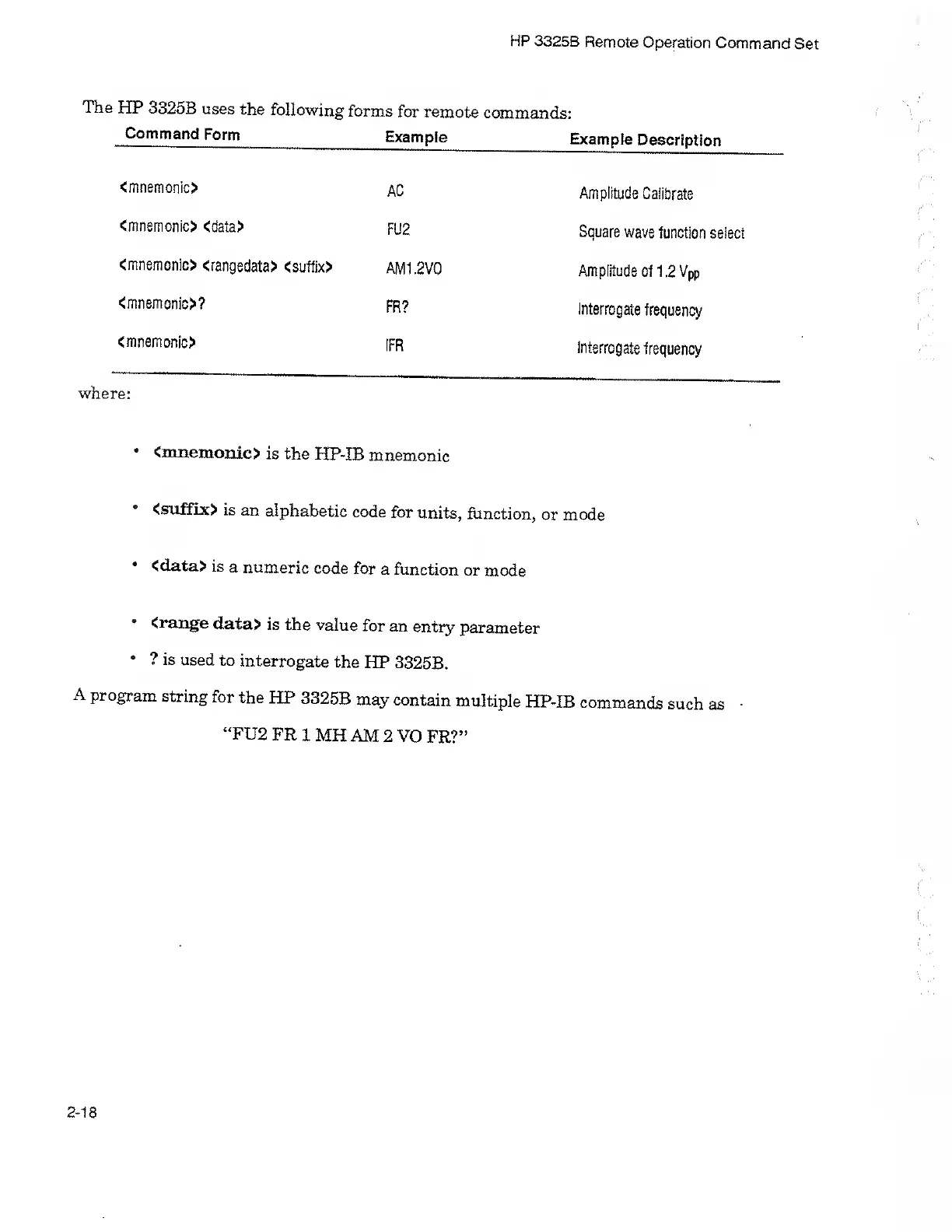

Th©
HP
3325B
uses
the
following
forms
for
remote
commands:
Command
Form
Example
Example
Description
<mnemonic>
AC
Amplitude
Calibrate
<mnemonic>
<data>
FU2
Square
wave
function
select
<mn8monic>
<rangeclata>
<suffix>
AM1.2V0
Amplitude
of
1.2
Vpp
<mnemonic>?
FR?
Interrogate
frequency
<mnemonic>
fFR
Interrogate
frequency
where:
•
CnmemomO
is
the
HP-IB
mnemonic
<suffix>
is
an
alphabetic
code
for
units,
function,
or
mode
<data>
is
a
numeric
code
for
a
function
or
mode
<range
data>
is
the
value
for
an
entry
parameter
“
?
is
used
to
interrogate
the
HP
3325B.
A
program
string
for
the
HP
3325B
may
contain
multiple
HP-IB
commands
such
as
“FU2
FR
1
MH
AM
2
VO
FR?”
