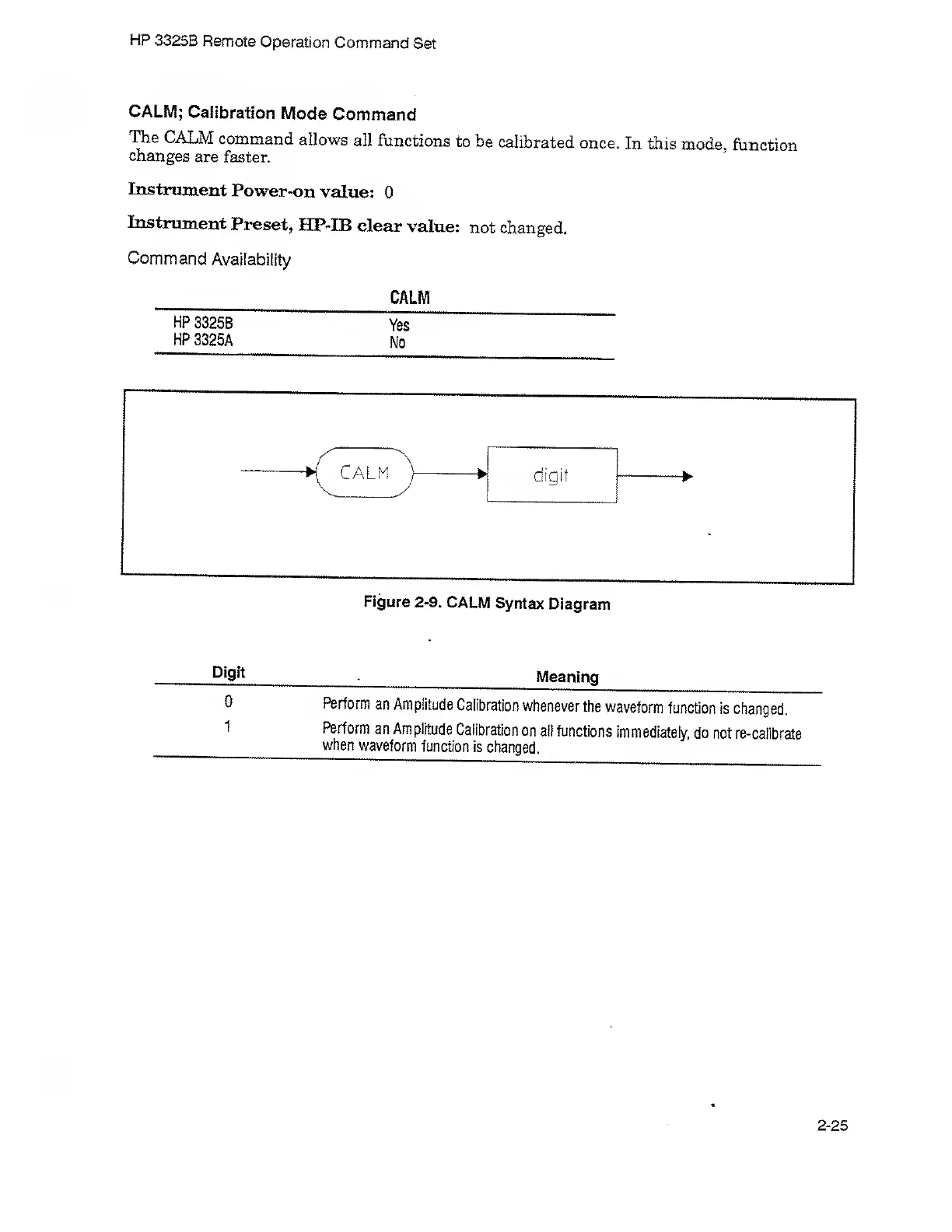

HP
3325B
Remote
Operation
Command
Set
CALM;
Calibration
Mode
Command
CALM
command
allows
all
functions
to
be
calibrated
once.
In
this
mode,
function
changes
are
faster.
Instrument
Power-on
value:
0
Instrument
Preset,
HP-IB
clear
value:
not
changed.
Command
Availability
_CALM_
~HP
33258
HP
3325A
No
^‘9*^
__
Meaning
___
0
Perform
an
Amplitude
Calibration
whenever
the
waveform
function
is
changed.
1
Perform
an
Amplitude
Calibration
on
ail
functions
immediately,
do
not
re-calibrate
_when
waveform
function
Is
changed.
2-25
68
70
