DRCL
and
DSTO;
Discrete
Sweep
Store
and
Recall
Commands
DRCL
recalls
the
discrete
sweep
vector
number
specified
by
the
two
digits.
Start
frequency,
stop
frequency
marker
frequency
and
sweep
time
values
are
overwritten
with
the
recalled’
values,
DSTO
saves
the
current
start
frequency
stop
frequency
marker
frequency
and
sweep
time
values
in
the
discrete
sweep
vector
number
specified
by
the
two
digits.
Command
Availability
DRCL
DSTO
HP
3325B
Yes
Yes
HP
3325A
No
No

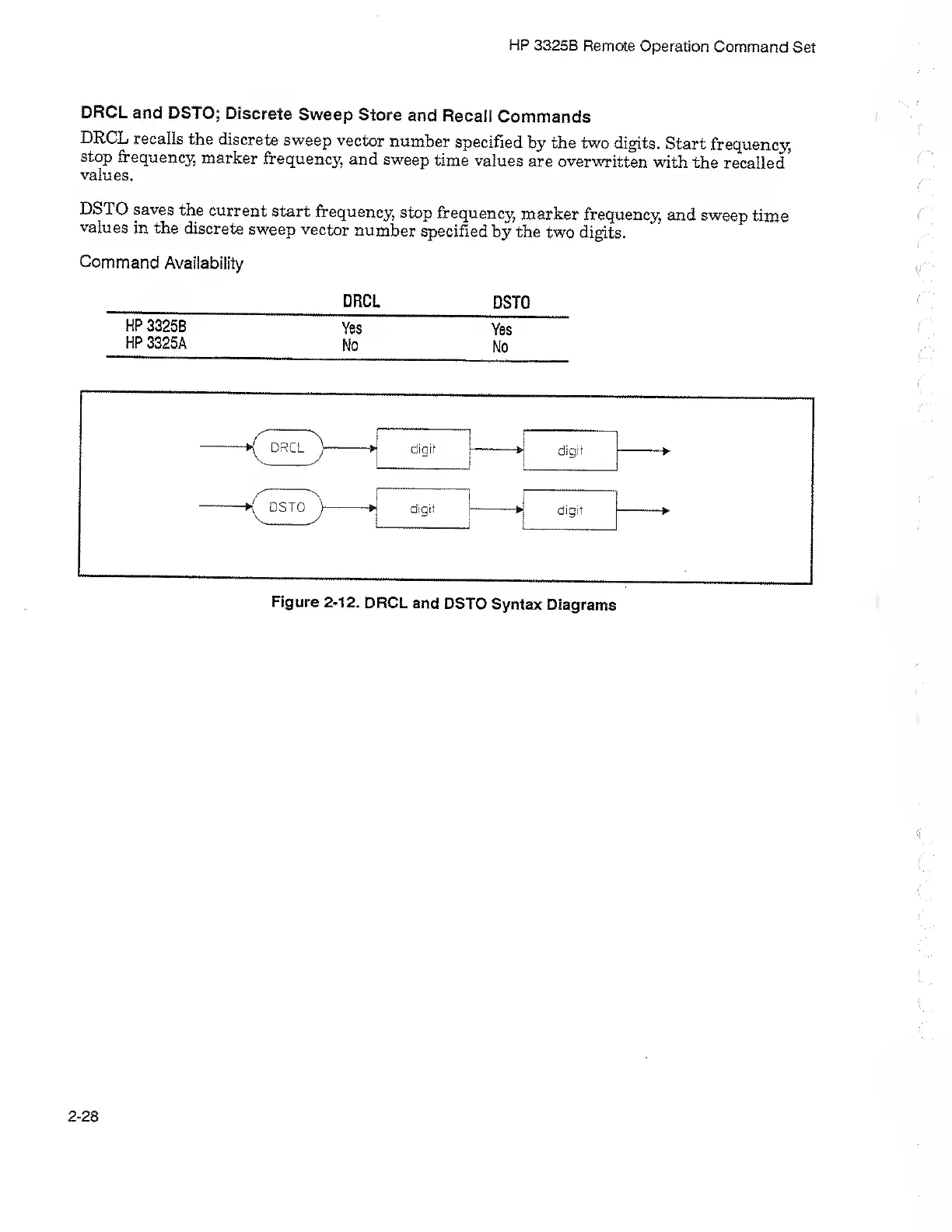

Figure
2-12.
DRCL
and
DSTO
Syntax
Diagrams
71
