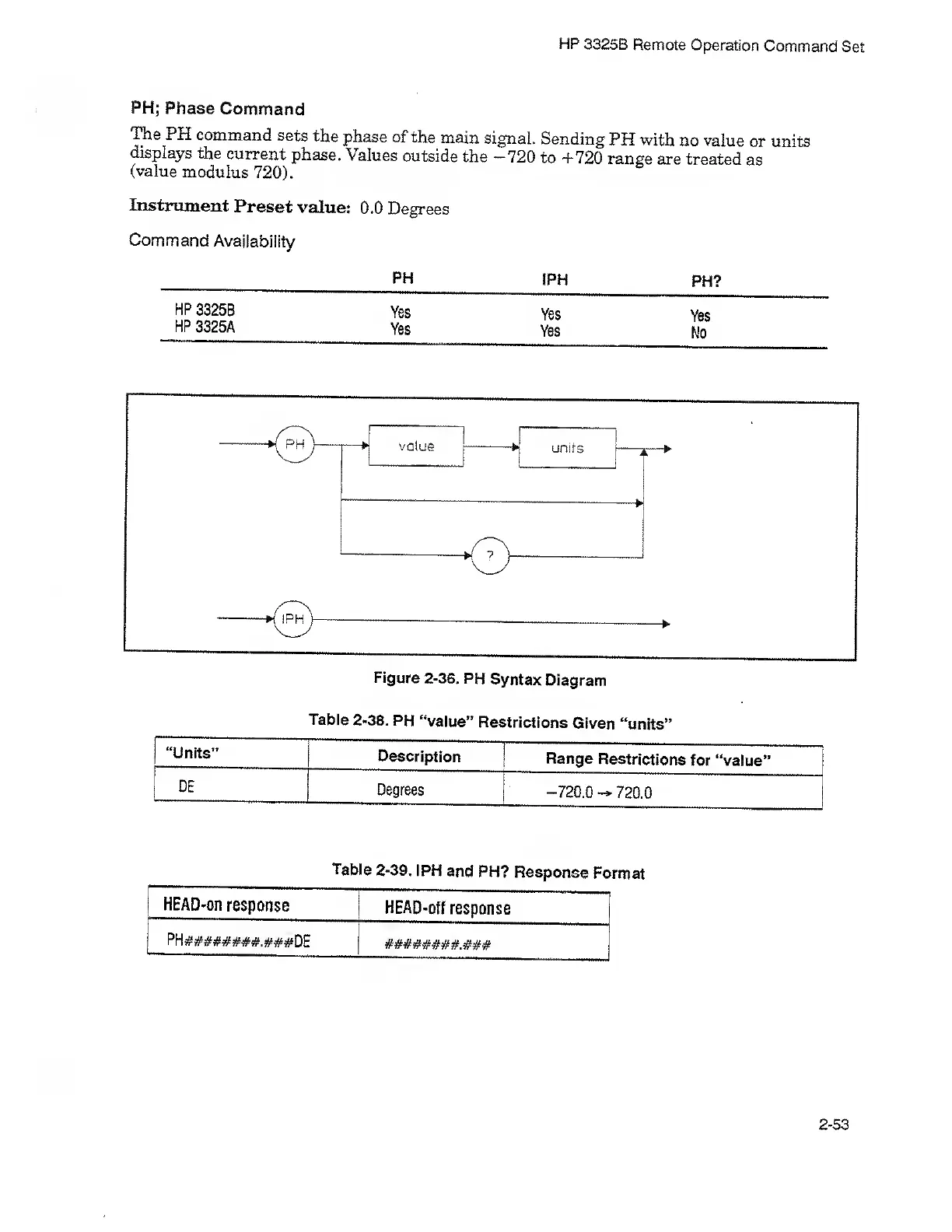

HP 3325B Remote Operation Command Set
PH; Phase Command
The PH command sets the phase of the main signal. Sending PH with no value or units
displays the current phase. Values outside the -720 to 4-720 range are treated as
(value modulus 720).
Instrument Preset value: 0.0 Degrees
Command Availability
HP 3325B
HP 3325A
PH IPH PH?
Yes Yes Yes
Yes Yes No
Figure 2-36. PH Syntax Diagram
Table 2-38. PH “value” Restrictions Given “units”
“Units”
Description
Range Restrictions for “value”
DE
Degrees
-720.0 -> 720.0
Table 2-39. IPH and PH? Response Format
1 HEAD-on response i
HEAD-off response
PH########.###DE
########.###
2-53
