HP 3325B Remote Operation Command Set

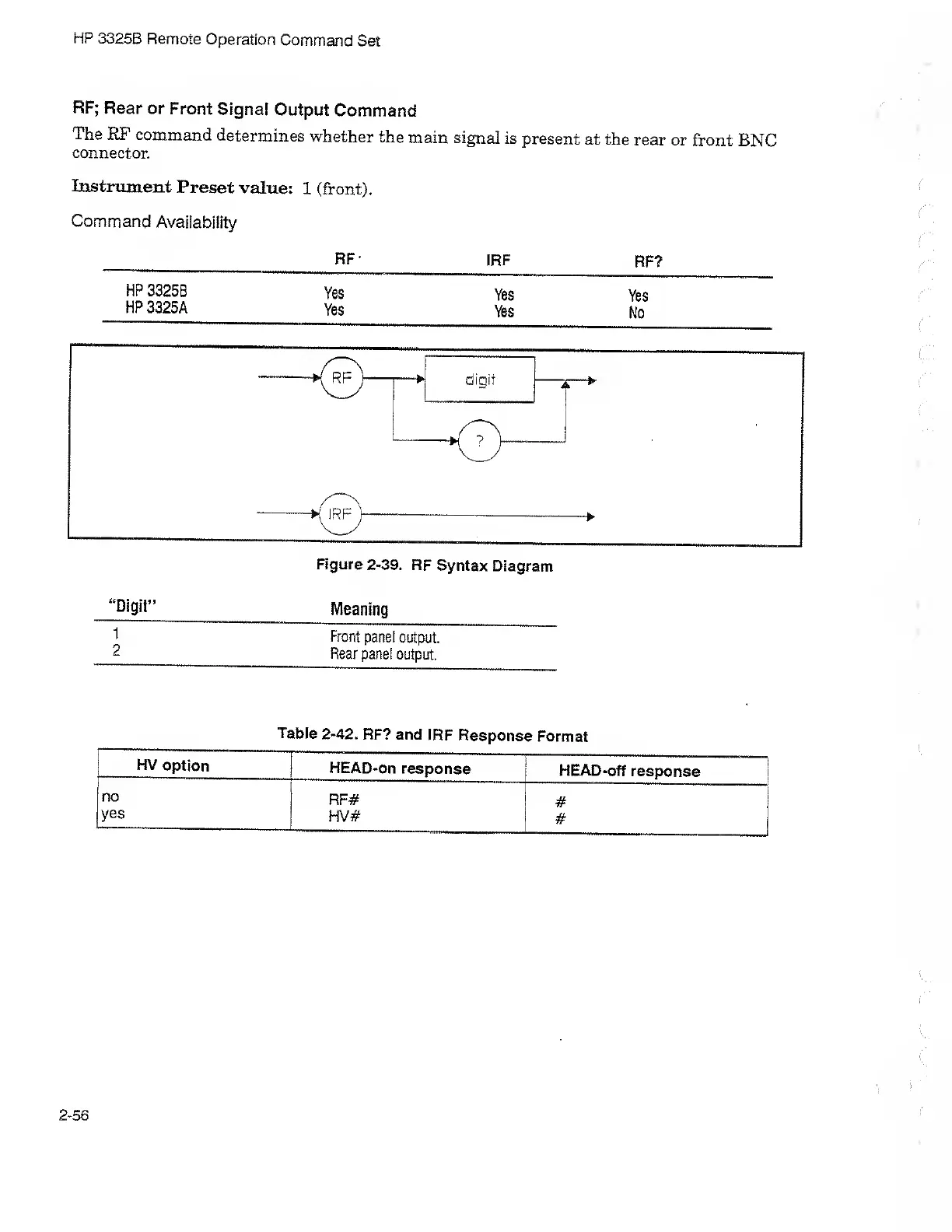

RF; Rear or Front Signal Output Command
The EF command determines whether the main signal is present at the rear or front BNC
connector.
Instrument Preset value: 1 (front).
Command Availability
HP 3325B
HP 3325A
RF IRF RF?
Yes Yes Yes
Yes Yes No
Figure 2-39. RF Syntax Diagram
“Digit”
Meaning
1
Front panel output
2
Rear panel output.
Table 2-42. RF? and IRF Response Format
HV option
HEAD-on response
HEAD-off response
no
RF#
#
yes
HV#
#
2-56
