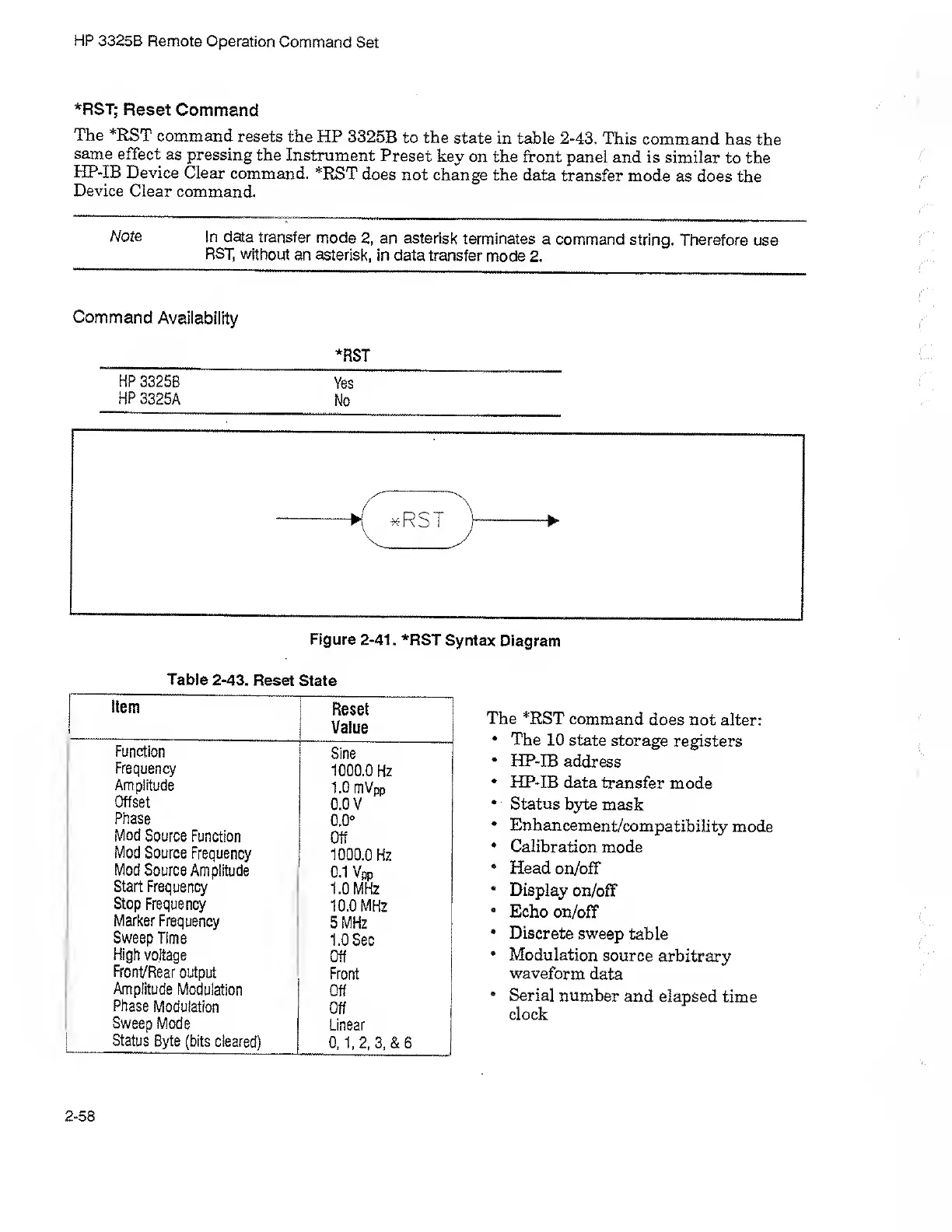

HP 3325B Remote Operation Command Set
*RST; Reset Command
The *RST command resets the HP 3325B to the state in table 2-43. This command has the
same effect as pressing the Instrument Preset key on the front panel and is similar to the
HP-IB Device Clear command. *RST does not change the data transfer mode as does the
Device Clear command.
Note In data transfer mode 2, an asterisk terminates a command string. Therefore use
RST without an asterisk, in data transfer mode 2.
Command Availability
*RST
HP 3325B Yes
HP 3325A No
Table 2-43. Reset State
Item
Reset
Value
Function
Sine
Frequency
1000.0 Hz
Amplitude
1.0 rnVm
Offset
0.0 V
Phase
0.0°
Mod Source Function
Off
Mod Source Frequency
1000.0 Hz
Mod Source Amplitude
0.1 Vpp
Start Frequency
1.0 MHz
Stop Frequency
10.0 MHz
Marker Frequency
5 MHz
Sweep Time
1.0 Sec
High voltage
Off
Fronl/Rear output
Front
Amplitude Modulation
Off
Phase Modulation
Off
Sweep Mode
Linear
Status Byte (bits cleared)
0,1,2, 3, &6
The *RST command does not alter:
• The 10 state storage registers
• HP-IB address
• HP-IB data transfer mode
• Status byte mask
• Enhancement/compatibility mode
• Calibration mode
• Head on/off
• Display on/off
• Echo on/ofT
• Discrete sweep table
• Modulation source arbitrary
waveform data
• Serial number and elapsed time
clock
