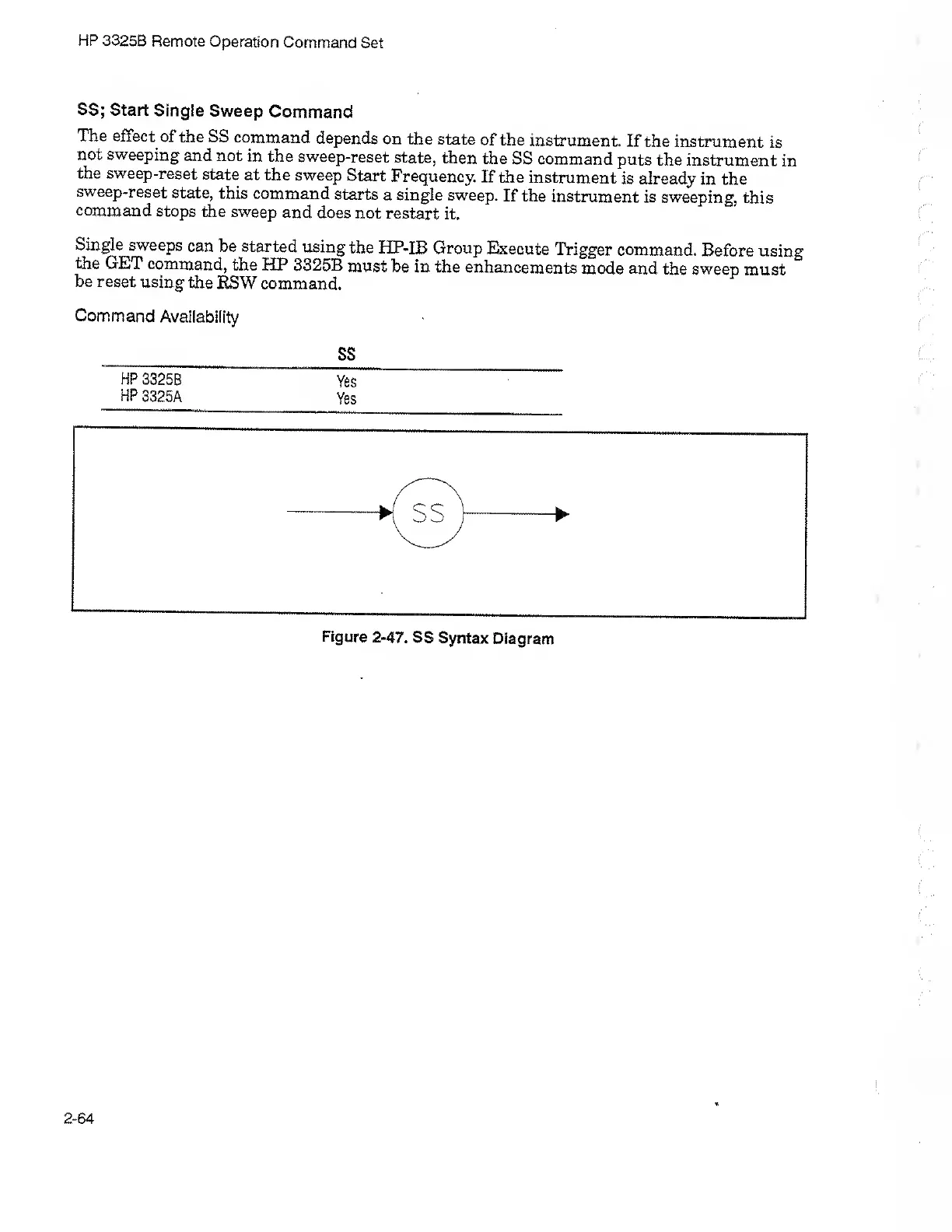

HP
3325B
Remote
Operation
Command
Set
SS;
Start
Single
Sweep
Command
The
effect
of
the
SS
command
depends
on
the
state
of
the
instrument.
If
the
instrument
is
not
sweeping
and
not
in
the
sweep-reset
state,
then
the
SS
command
puts
the
instrument
in
the
sweep-reset
state
at
the
sweep
Start
Frequency.
If
the
instrument
is
already
in
the
sweep-reset
state,
this
command
starts
a
single
sweep.
If
the
instrument
is
sweeping,
this
command
stops
the
sweep
and
does
not
restart
it.
Single
sweeps
can
be
started
using
the
HP-IB
Group
Execute
Trigger
command.
Before
using
the
GET
command,
the
HP
3325B
must
be
in
the
enhancements
mode
and
the
sweep
must
be
reset
using
the
RSW
command.
Command
Availability
SS
"
HP
3325B
Ye^
~
HP
3325A
Yes
2-64
95
97
