Single-ended TDR Measurements
Measuring Transmission Line Percent Reflection
7-31
Figure 7-19

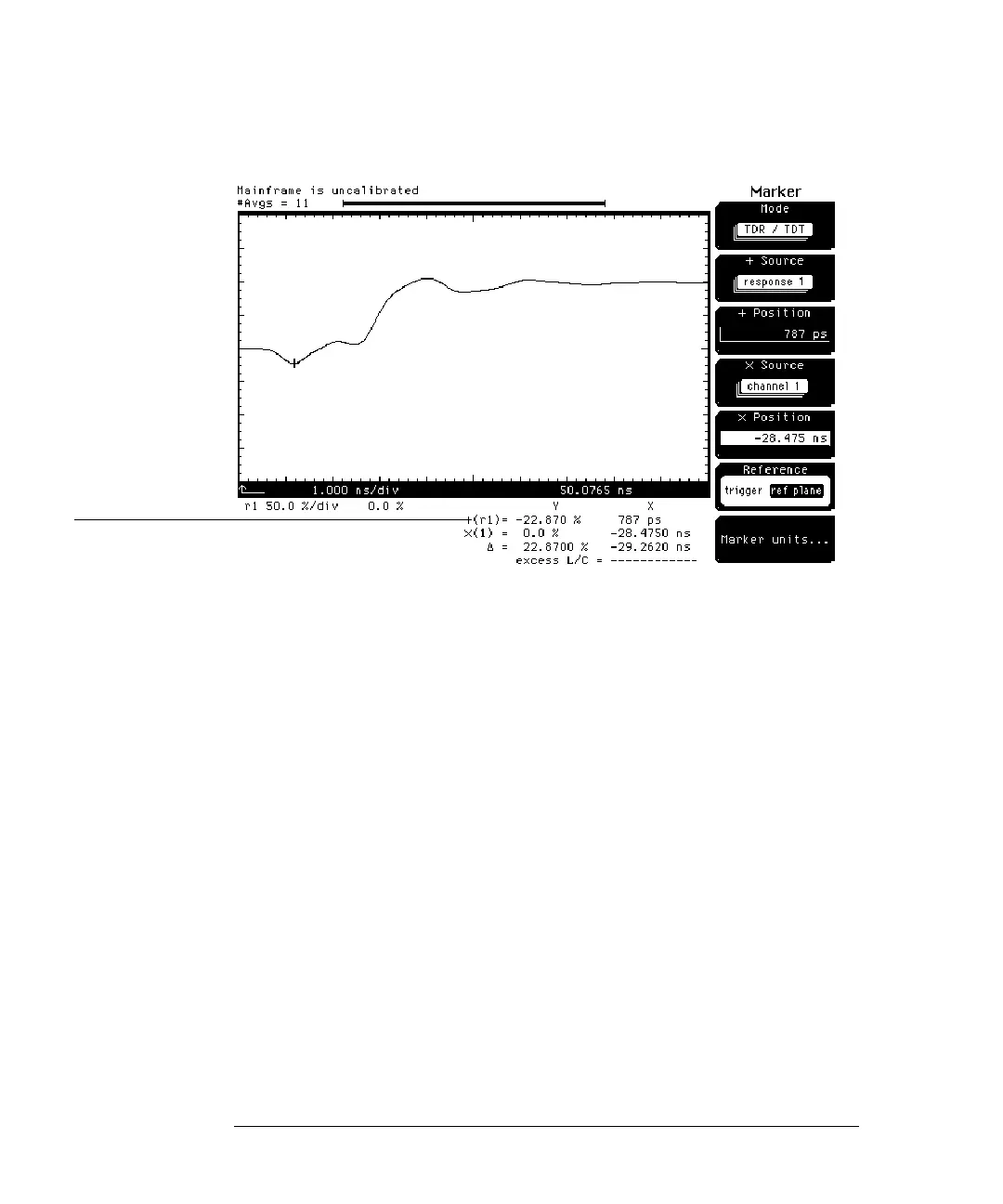

The automated percent reflection at the + marker is seen at the bottom of the
display. The measured value of -22.870 % agrees approximately with the
previously calculated value of -22.40 %.
Wide Trace Percent
Reflection
