Care and Handling of Precision Connectors
Mechanical Inspection
2-12
range will be on the plus (+) scale of the gauge. Also note that the allowable
tolerance range for the test set connectors is different from the range for other
connectors. Both ranges are shown in Figure 2-7 and Figure 2-8. Before
measuring test set connectors, be sure that the power to the test set is off and
that you and your equipment are grounded to prevent electrostatic discharge.

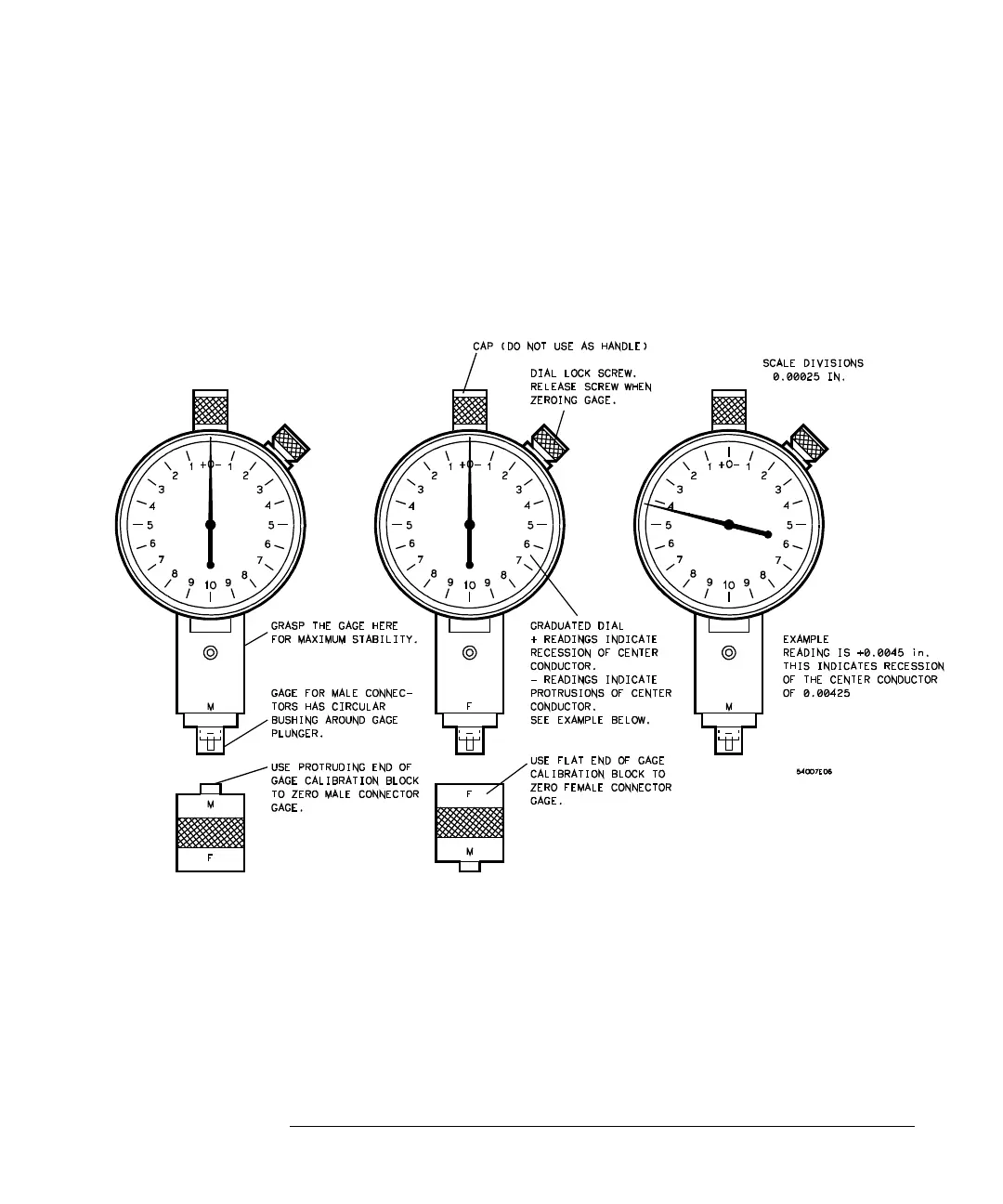

Figure 2-5
Precision 3.5 mm Connector Gauges
