Mod el 5528 A
Di stance Measurem ents
Other Mounting Requirements
Although we have tried to pro vide you with a mal(imum of mounting flel(ibility, there ma y be
situations when you need more capability. For m or e information , you s hould turn to Appendil( C
for dimensions
of the Optics, and the Mounting Hardware.

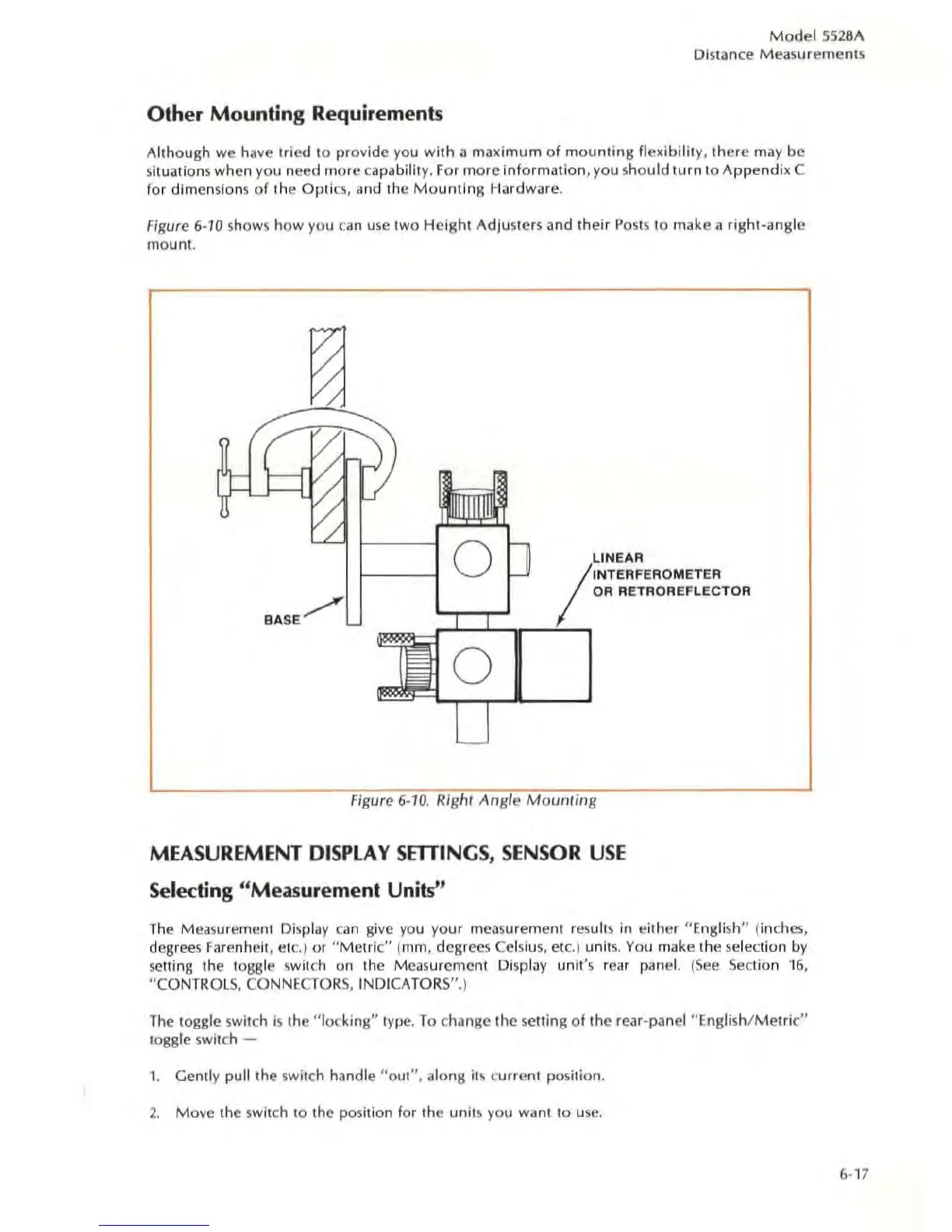

Figure 6- 10 shows h ow you ca n use two Height Adju sters and their Posts to make a righI-angie
mount .
o
OR RETROREFLEC TOR
Figure 6-10. Right Angle Mounting
MEASUREMENT DISPLAY SmINGS, SENSOR USE
Selecting "Measurement Units"
The Mea su rement Display ca n give you your measurement results in either "Engl ish " (inches,
degrees Fa renheit, etc. ) or " Me tric" (mm, degre es Ce l si u s, etc.) units. You make the se lection by
setting the toggle sw it ch on t he Measurement Di sp lay unit' s r ear panel. ( See Section 16 ,
"C ONTROLS. CONNECTORS, I ND ICATORS".)
The toggle switch is the " locking" t ype. To cha nge the selling of Ihe rear-panel "Eng li sh/ M e tric"
toggle sw itch -
1. Gently pull the switch handle "OUI ", al ong its current position.
2. Move the switch to the position for the units you want to use.
6-17
