HP 5528A

Model 5528A
St ra iB htne ss Mea sureme nts
10774A OR 10775A
STRAIGHNTESS
SLOT
TOWARD
END
000
MOUNT
FROM
,_-.______ 10776A
I - POST STRAIGHTNESS
ACCESSORY KIT
Assemble Ih e Straightness Refl ec t or and it s mo untinB hard wa re, u si ng
the
procedure below.
a.
Attach th e Straightness Re fl ec tor to the adjustable mount, using
the screws iden
ti fied by "1".
Make
sure the slot is as fat as po ss ible from th e screws identified
by
" 1 ". ( Thi s wi ll a ll ow f or co rr ec t spacing betwe en thc Turning
Mirror and
the Reflector .)
b. Sc r ew the Accessory Kif 's P os t into Ihe rear of the Adjustable
Mount.
c. Slide the Po st into thc Ila se and s ecure with Ih e lar ge knurled
knob.
Adjustmenl " 2'> allows 360-deBr ee rota li on of th e reflector.
Adjustment
" 3" rotates the re fl ec t or over very small angles to help
in final alignment.

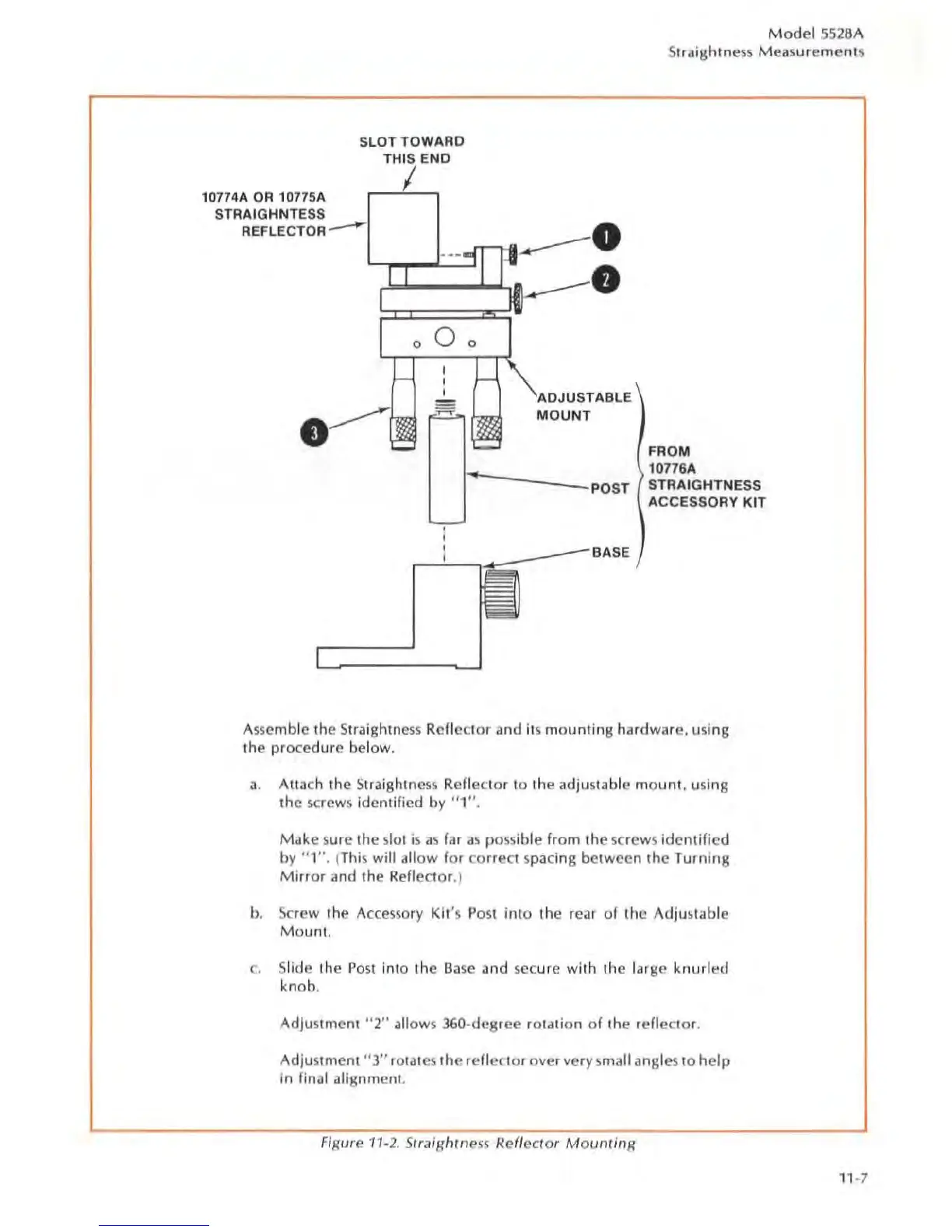

Fi gure 11-2. Stra igh tne ss Refie Cl or Mounting
11 -7
