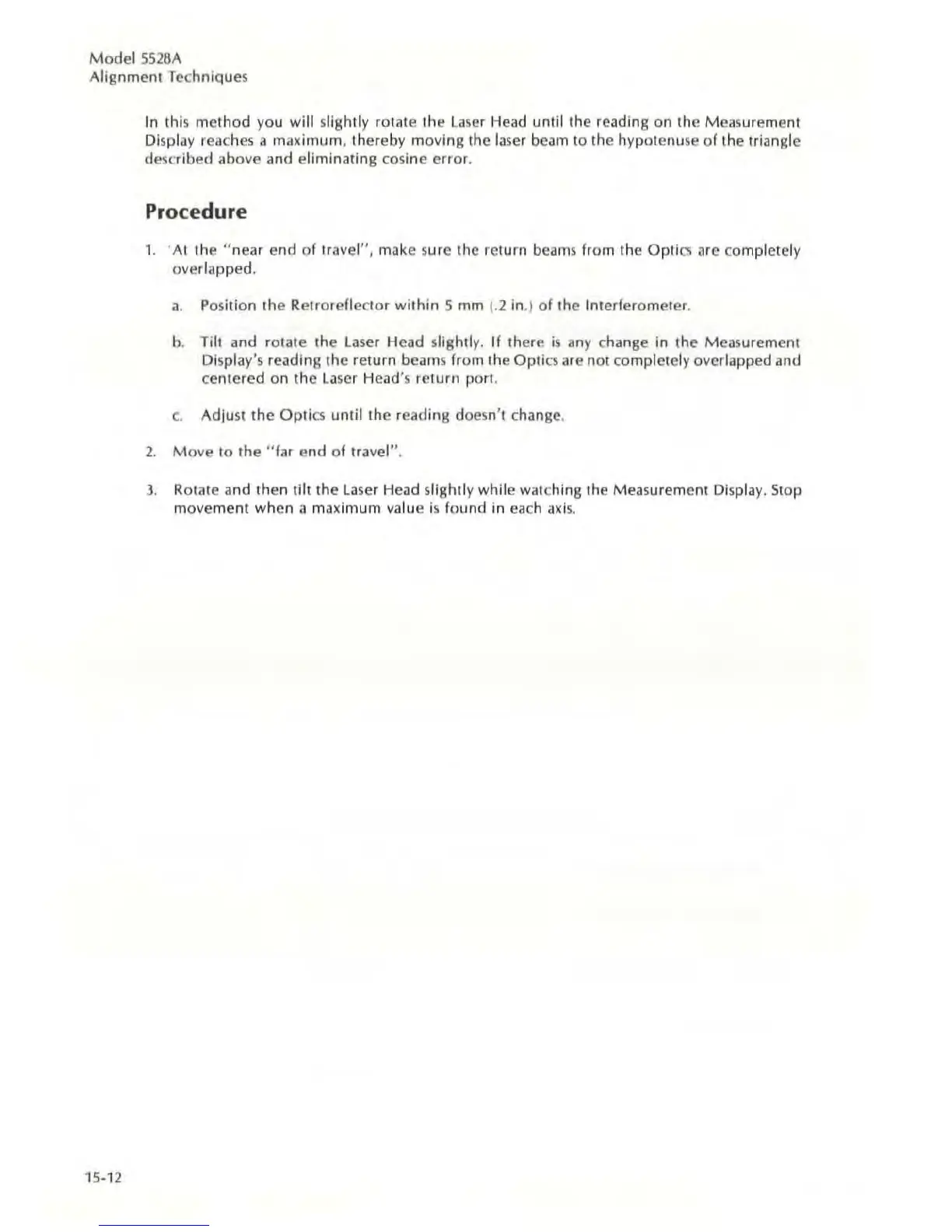

Model
5526A
Alignment Techniques
In
this
method
you will slightly rotate
the
laser
Head until the reading on
the
Measurement
Display reaches a maximum,
thereby
moving the
la
ser beam to the hypotenuse of the triangle
described
above
and
eliminating cosine
error
.
Procedure
1. '
At
the
"nea
r
end
of travel", make
sure
the return bearns from
the
Optics are completely
over
lapped
.
a.
Position the Retroreflccl()r within 5 mm
(.
2
in
.)
of
the
Int
erferometer
.
b.
Till
and
rolate
the
laser
Head slightly.
If
there
is
any
change
in
the
Measurement
Display's reading
the
return
beam
s from
the
Optics are not completely
over
lapped and
centered
on
the
laser
H
ead
's
re
t
urn
port.
c. Adjust
the
Optics until
the
reading
doesn't change.
2. Move
10
the
"far
end
of
travel".
3. Rotate
and
then
tilt
the
laser
Head slightly while watching the Measurement Display.
SlOP
moveme
nt
when
a maximum
va
l
ue
is found
in
each
axis
.
