1. RMT CONT Connector: Connecting point for th e
05508-60021 Remote Co ntrol Unit.
2. MA TER rAL TEMPERATURE Connecto rs: Connecting point (sl
for the Material Temperature Sensor{s 1.
3, AIR SENSOR Connec tor : Connecting point for the Air Sensor.
4, LASER SOURCE Connecto r: Co nnecting po int for the cable
between the Measurement Display and the Laser Head,
5.
ENG LI SH-METRIC Sw itch: Determines the units of measurement s,
either Engli sh (inches. degrees F) or Metric ( millimetre s. degrees C).
6, I EEE STD 488 PORT C onnector : Connec tin g point (or HP-IB cable(s ). if
used.
HP - IA is a H ew lett-Packard implementation of the I EEE 468
Sta n da rd Interface. It is u sed to co nnect other equipmen t to the
Measurement Display
unit.
7, POWER LINE Module : Conne c ting point for line powe r co rd. Also
contains the line fuse. a nd a l ine voltage selector.

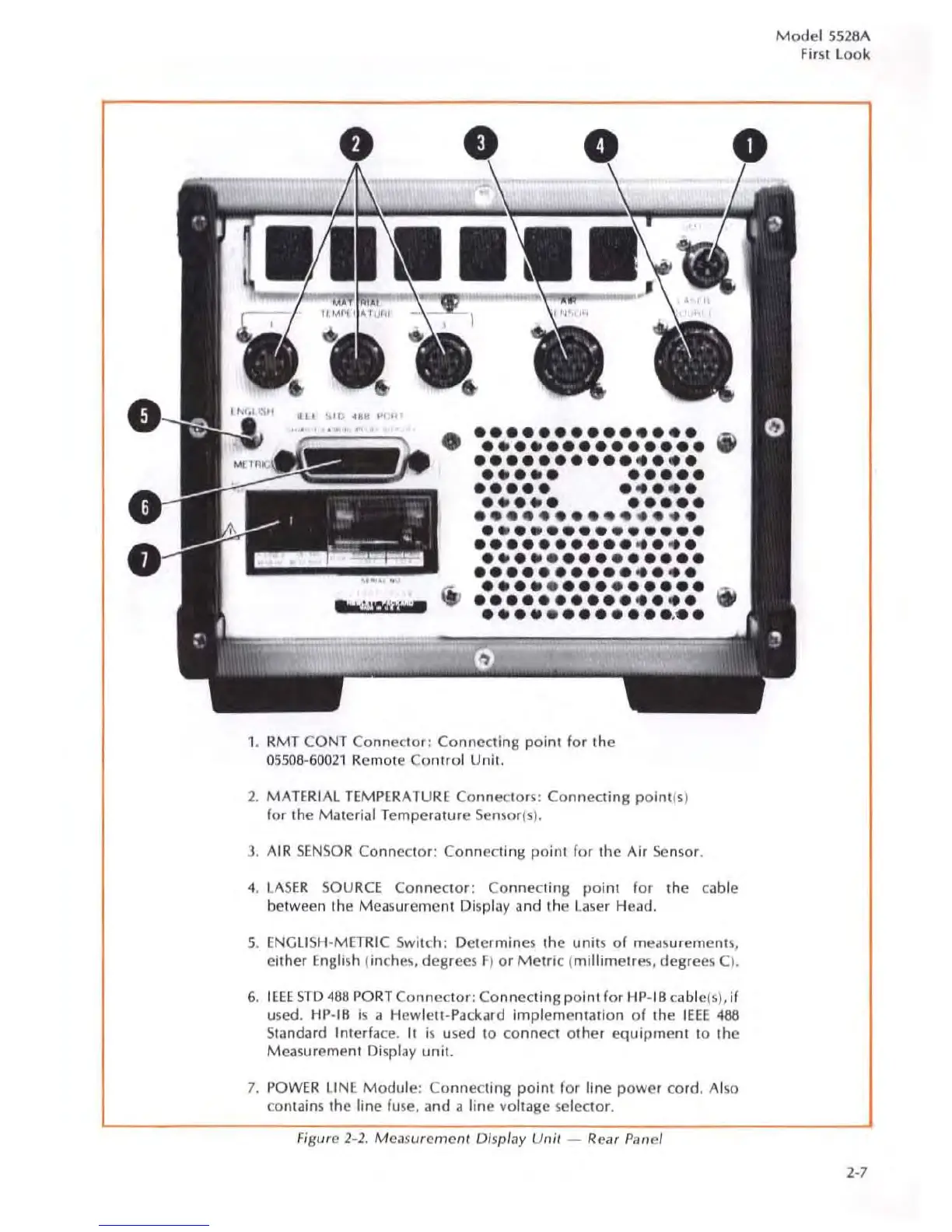

Figure 2- 2. Meas urement Di splay Unit - Rear Panel
