Model 552 8A
First l oo k
2-22
I I IHI I I I Ixl x·1 I
(3

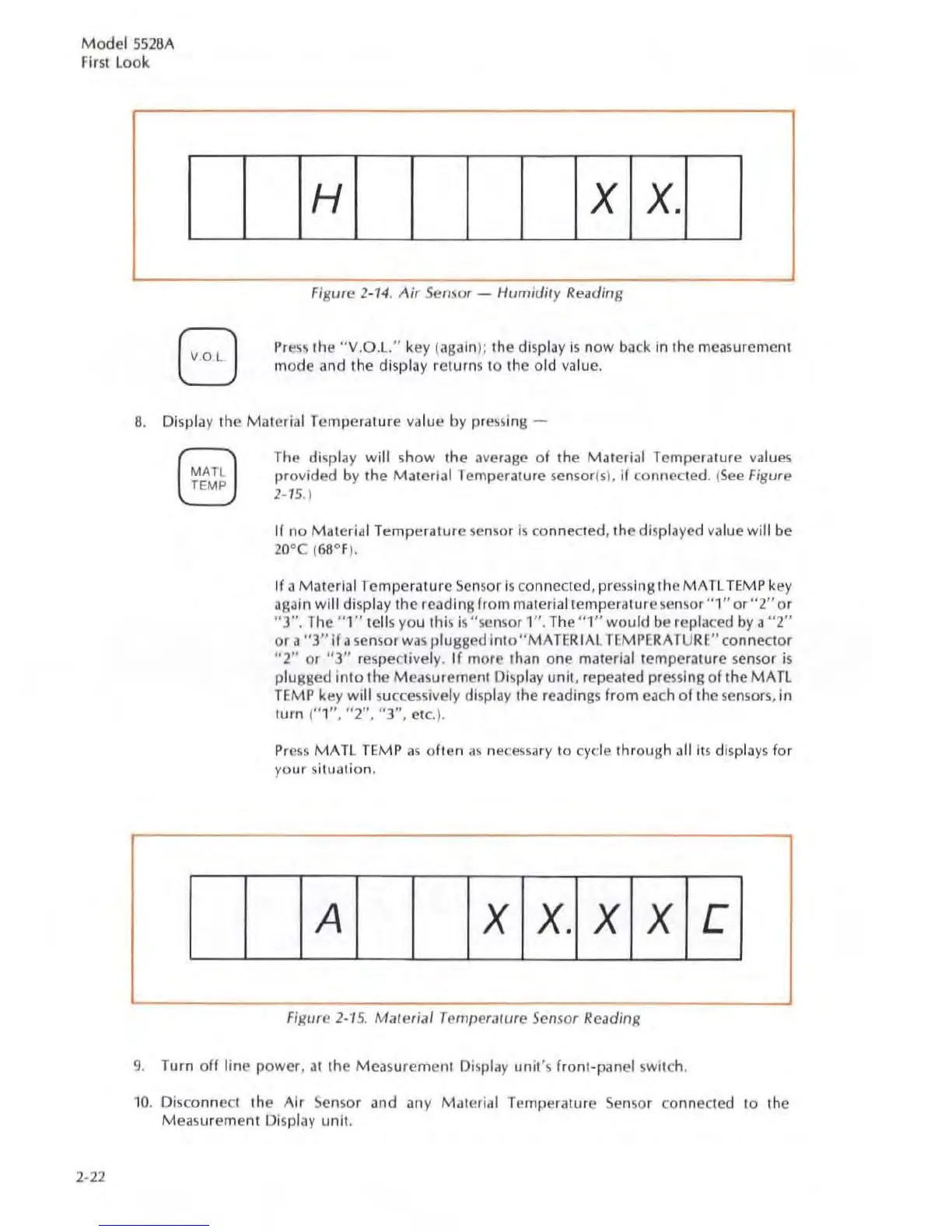

Fi g ure 2-14. Air Sensor - Humidily Reading
Pre ss the "V.D.l." key (again ); the display is now back in the meas urement
mode and the display returns to the old va lu e.
8. Display the Material Temperature va lu e by pressinH -
Q
~
The display w il l s how the average of the Material Temperature val ues
provided by the Material Tempe ra1Ure sensor(s ), if connec t ed. (See Figure
2-15 .)
If no Material T empera tu re sensor is co nne cted, Th e di splayed va lu e w ill be
200C (68°F ).
If a Material T empe ratur e Sensor is conn ected, pressing the MA Tl TEMP key
again
wi ll display the reading frorn material temp erature sensor "1" 0, "2" or
"3". The "1" te ll s you this is "se nsor 1". The"1 " would be replaced by a "2"
or a "3 " if a sensor was plugged in to "MA TERIAl TEMPERATURE " conn ector
"2" or "3" respectively. If more than one material t empera ture sensor is
plugged inlo the Measurement Displ ay unit. r epea t ed pressing of the MATl
TEMP key w ill successively di s pl3Y the r ead in gs from each of the sensors, in
turn
("1", "2", "3", etc .).
Pre ss MATl TEMP as of l en as ne cessary to cycle thr ough all i ts displays for
your
si1Uation.
Figure 2- 1 S. Maferial TemperafUre Sen s or Reading
9. Turn off line power , al the Meas u rement Displ ay unit's fro nt-panel swi tch.
10. Disconne ct the Ai r Sensor and any Material Temperature Sensor co nne ct ed to the
Measurement Display unit.
