HP 5528A User Manual

Mode l 5528A
Physic al Set· Up of the la ser Head and Tripod
For h or i zo nt al ro ta li on ( turn ing) of the la ser H ead -
For
coarse a dju stme nt -
1. Unlock the H orizon tal Rotation Coa r se Adjustment lo ck lever on the Tripod.
2. Turn th e la ser Head so it is pointing in the seneral dire c ti on you want.
3. l ock the Ho ri zo nt al Rota tion Coa r se Adjustment lo ck lever on the Tripod.
For
fine adjus tm e nt -
Turn
the Horizontal Rotation Fin e Adjust knob o n the miniature Cross S lide A ssem bl y at the
rear of the Mounting Plate. Th ere is no lock for th is assemb l y.
HO RI ZONTAL ,/"
TRANSLA TIO N
CRANK
VE RTI CAL /
MOTION
LOCK
LEVelLIN G FOOT
./ HORIZONTAL
/" ROTATION
FINE
ADJUST
-
------ HORIZONTAL
ROTATION
COARSE
ADJ
LOCK LEVER
VERTICAL
TRANSLATION
HANDWHEEl

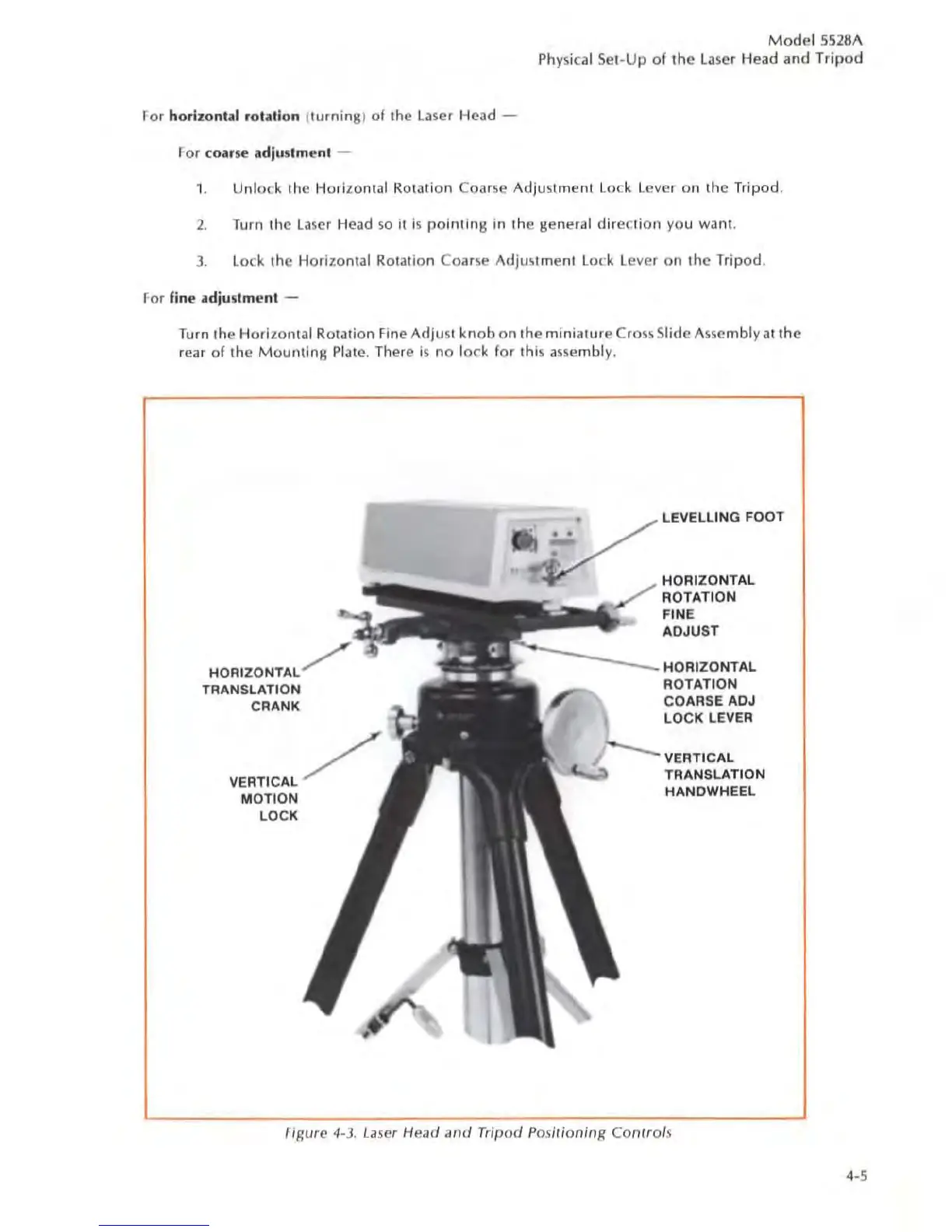

figure 4·3. Laser Hearl and Tripod Pos itioning Contro ls
4-5
