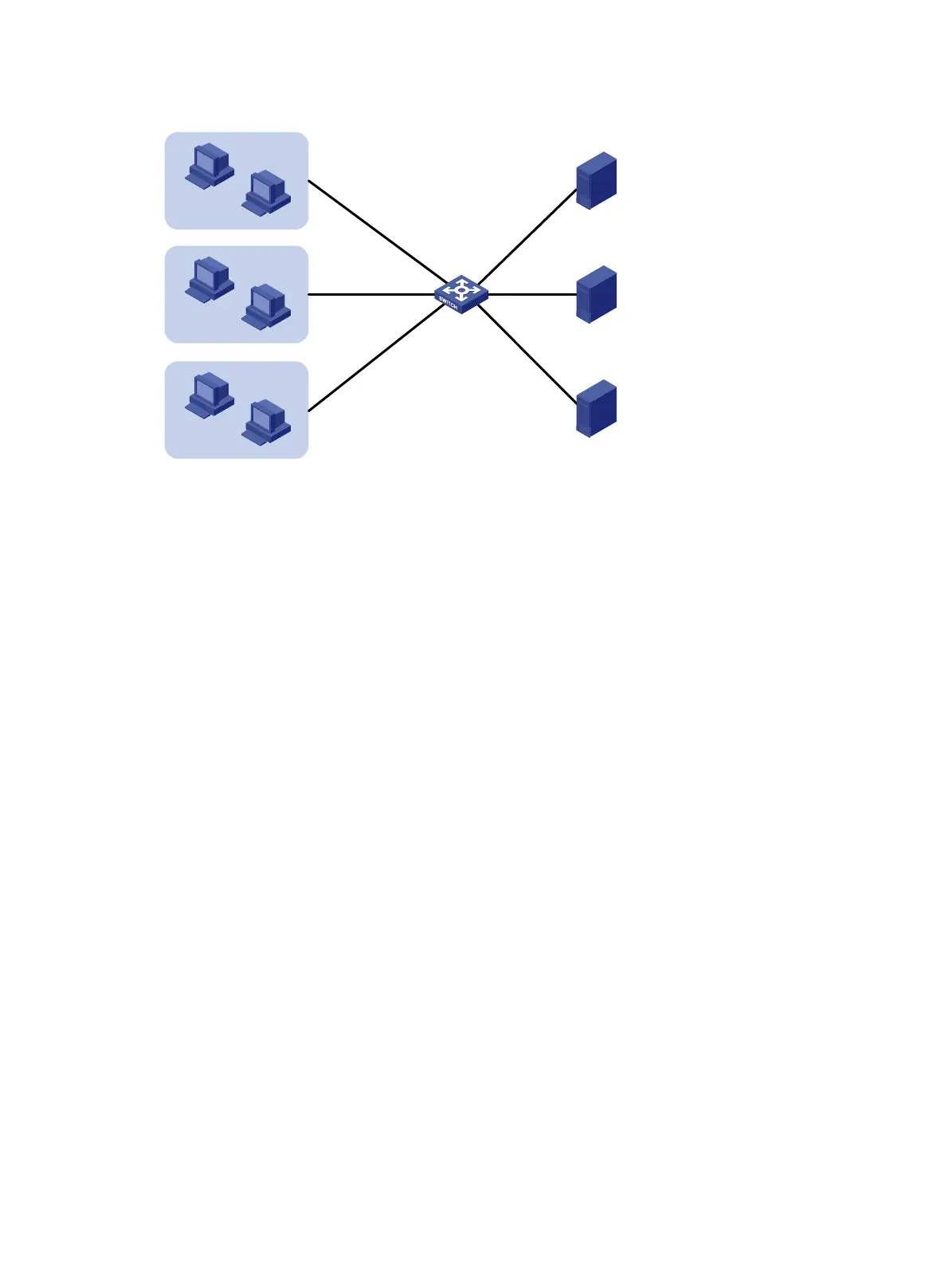

Figure 64 Network diagram
Configuration procedure
# Create remote source group 1.
<DeviceA> system-view
[DeviceA] mirroring-group 1 remote-source
# Configure Ten-GigabitEthernet 1/0/1 through Ten-GigabitEthernet 1/0/3 as source ports of the
remote source group.
[DeviceA] mirroring-group 1 mirroring-port ten-gigabitethernet 1/0/1 to
ten-gigabitethernet 1/0/3 both
# Configure an unused port (Ten-GigabitEthernet 1/0/5, for example) of Device A as the reflector port
of the remote source group.
[DeviceA] mirroring-group 1 reflector-port ten-gigabitethernet 1/0/5
This operation may delete all settings made on the interface. Continue? [Y/N]:y
# Create VLAN 10, and assign ports Ten-GigabitEthernet 1/0/11 through Ten-GigabitEthernet 1/0/13
to VLAN 10.
[DeviceA] vlan 10
[DeviceA-vlan10] port ten-gigabitethernet 1/0/11 to ten-gigabitethernet 1/0/13
[DeviceA-vlan10] quit
# Configure VLAN 10 as the remote probe VLAN of the remote source group.
[DeviceA] mirroring-group 1 remote-probe vlan 10
