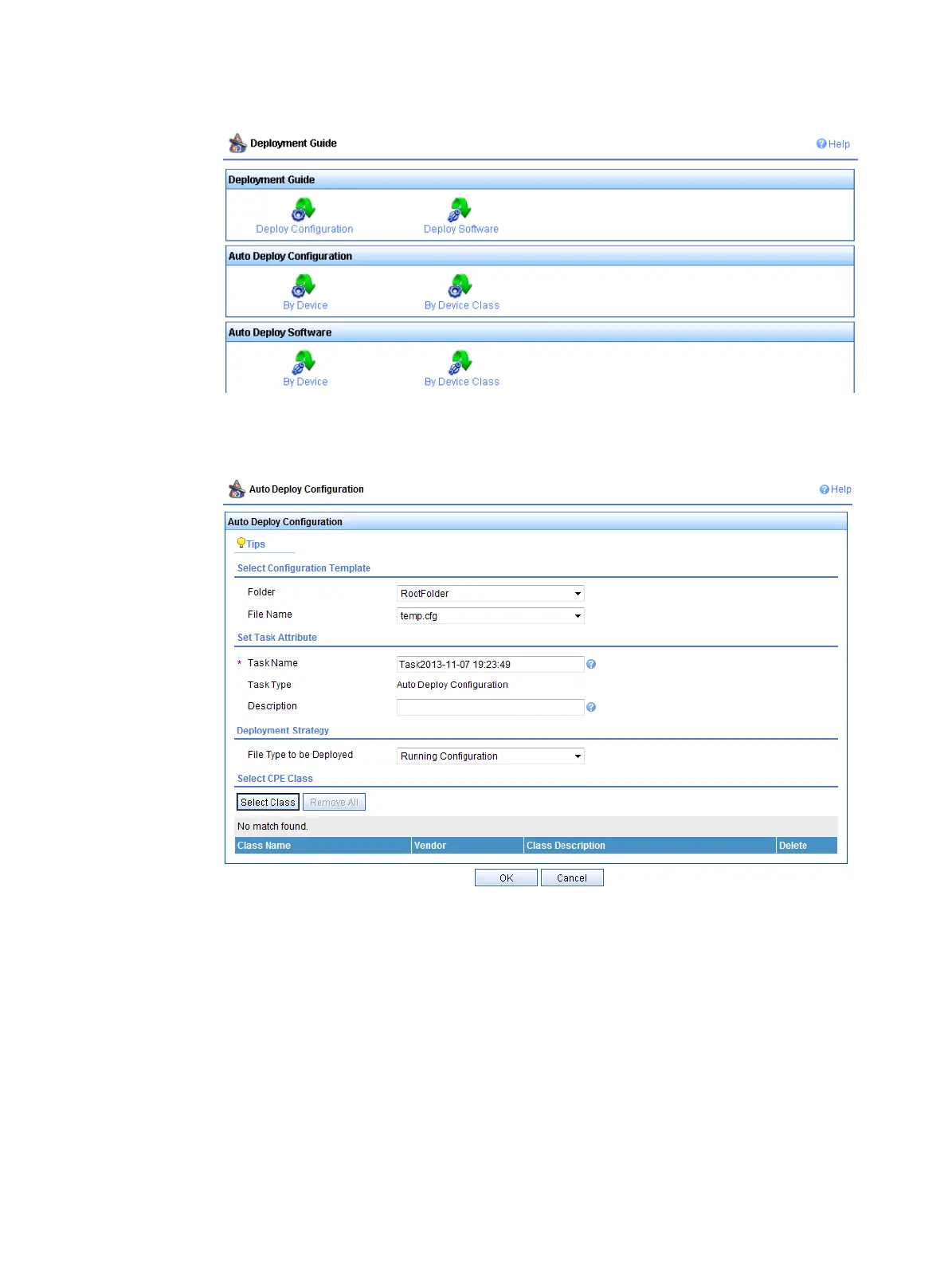

Figure 16 Deployment Guide

c. On the Auto Deploy Configuration page, click Select Class.

Figure 17 Configuring auto deployment

d. On the Device Class page, select Device_A, and then click OK.
