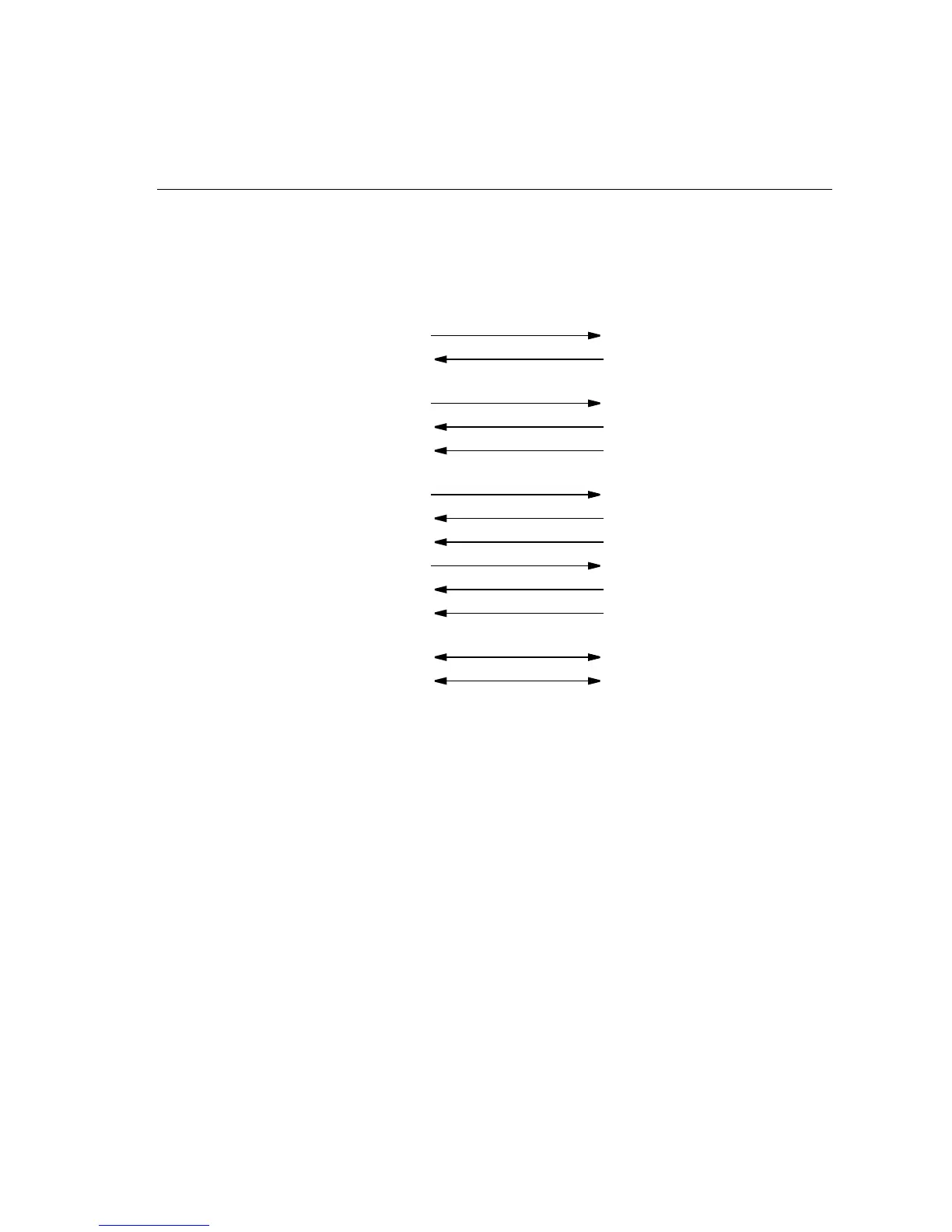

RS-232-D Cable
10
RS-232-D Cable
Part number 5061-4958
103 TX 2 2 TX
104 RX 3 3 RX
113 TSE/DTE 24 24 TSE/DTE
114 TSE/DCE 15 15 TSE/DCE
115 RSE 17 17 RSE
105 RTS 4 4 RTS
106 CTS 5 5 CTS
109 DCD 8 8 DCD
- 108 DTR 20 20 DTR
- 107 DSR 6 6 DSR
- 125 RI 22 22 RI
-
- 102 SG 7 7 SG
- 101 SHIELD 1 1 SHIELD
SUB D 25 PIN MALE
CONNECTOR
DTE-SIDE
SUB D 25 PIN MALE
CONNECTOR
DCE-SIDE
