30

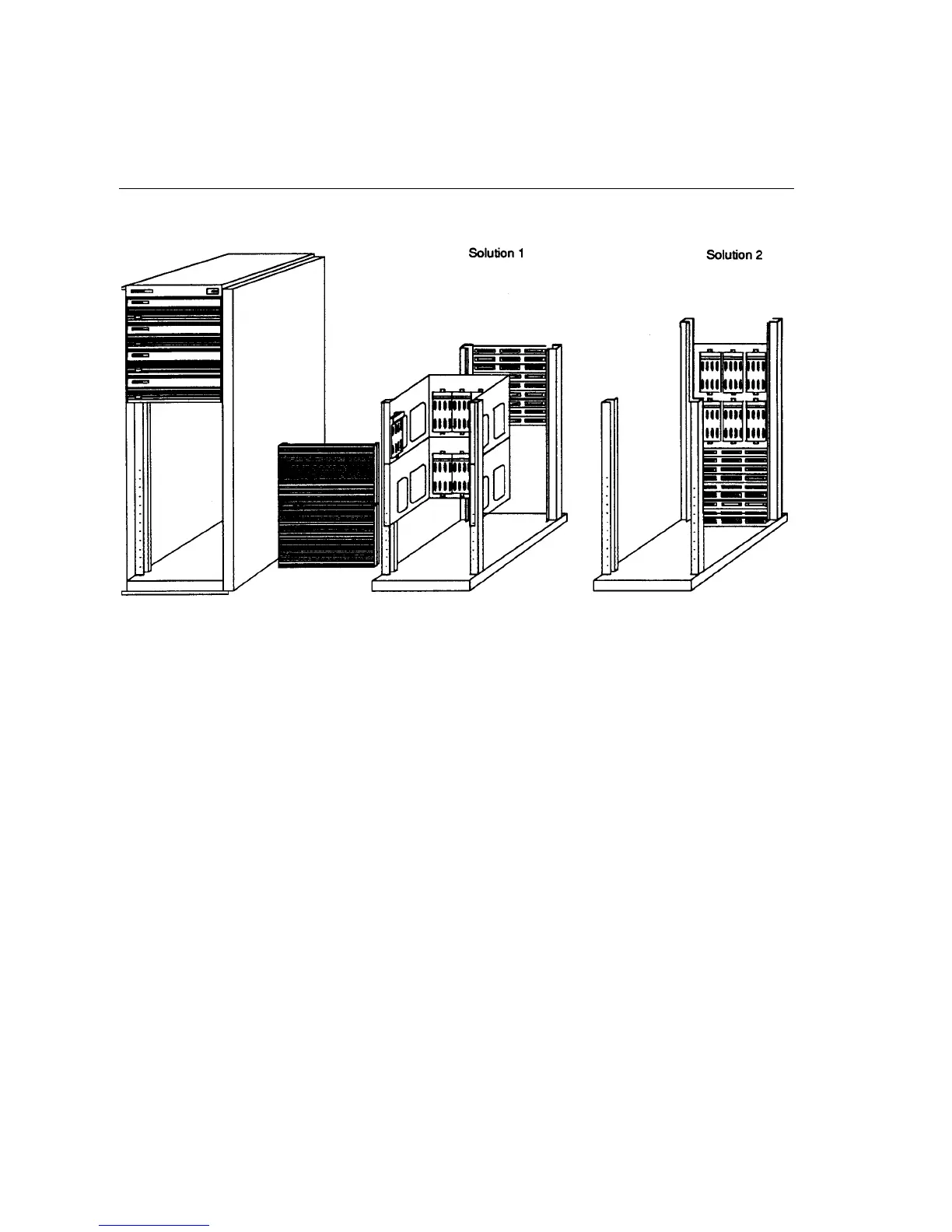

Four DTC 72MX with 272 ports in a 1.6m rack
5
Four DTC 72MX with 272 ports in a 1.6m rack
Solution 1
Front: 2 x J209A MDP Mounting Kits
7 x Modem Distribution Panels
Rear: 9 x RJ45 Direct Distribution Panels
Solution 2
Front: 20 x Filler Panels
Rear: 2 x C2792A MDP Mounting Kits
7 x Modem Distribution Panels
9 x RJ45 Direct Distribution Panels
