2

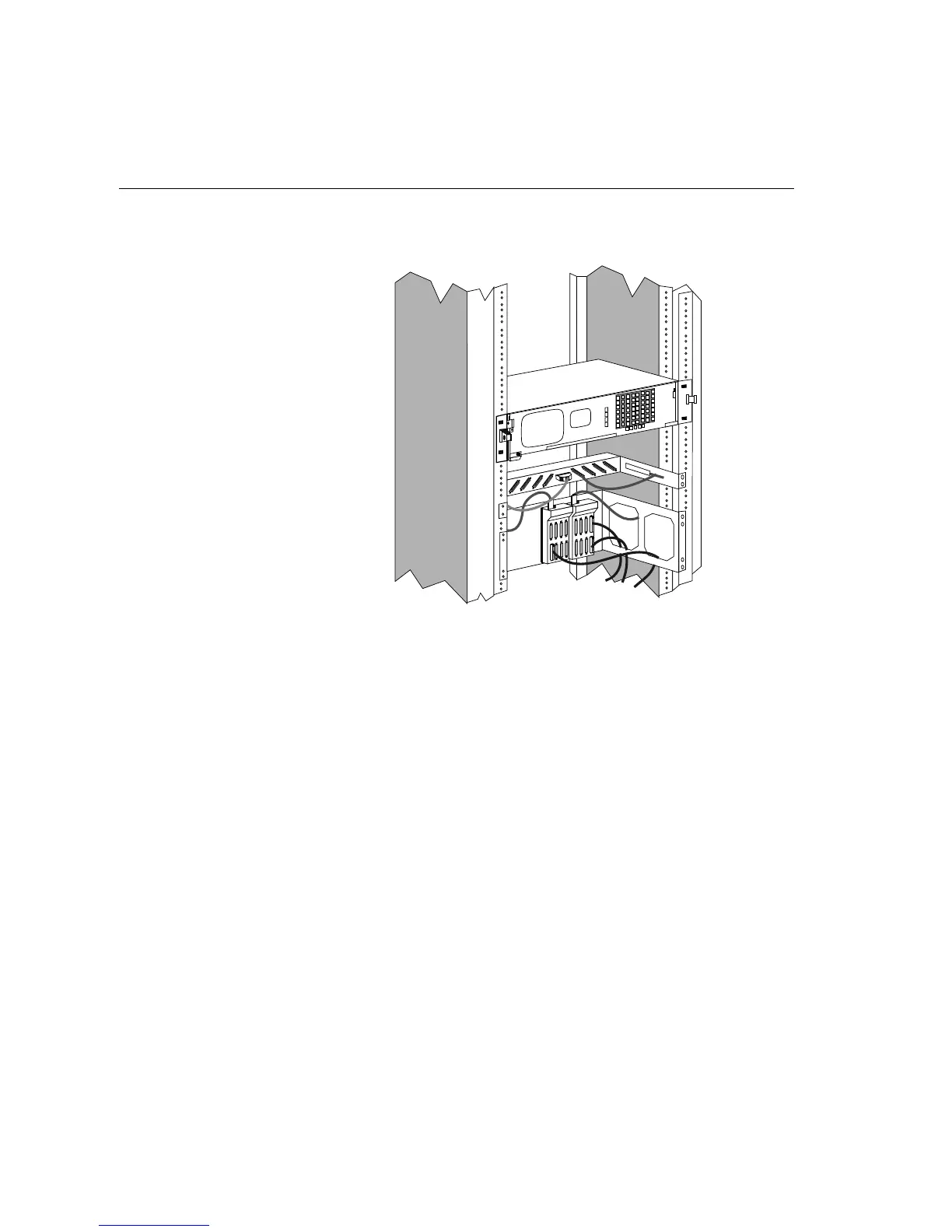

DTC 72MX with example connections
1
DTC 72MX with example connections
This figure shows a DTC 72MX mounted in a system rack, with distribution
panels for multiple connections to modems and asynchronous devices.
The front panel of the DTC 72MX has been removed.
