HP 800 User Manual

61

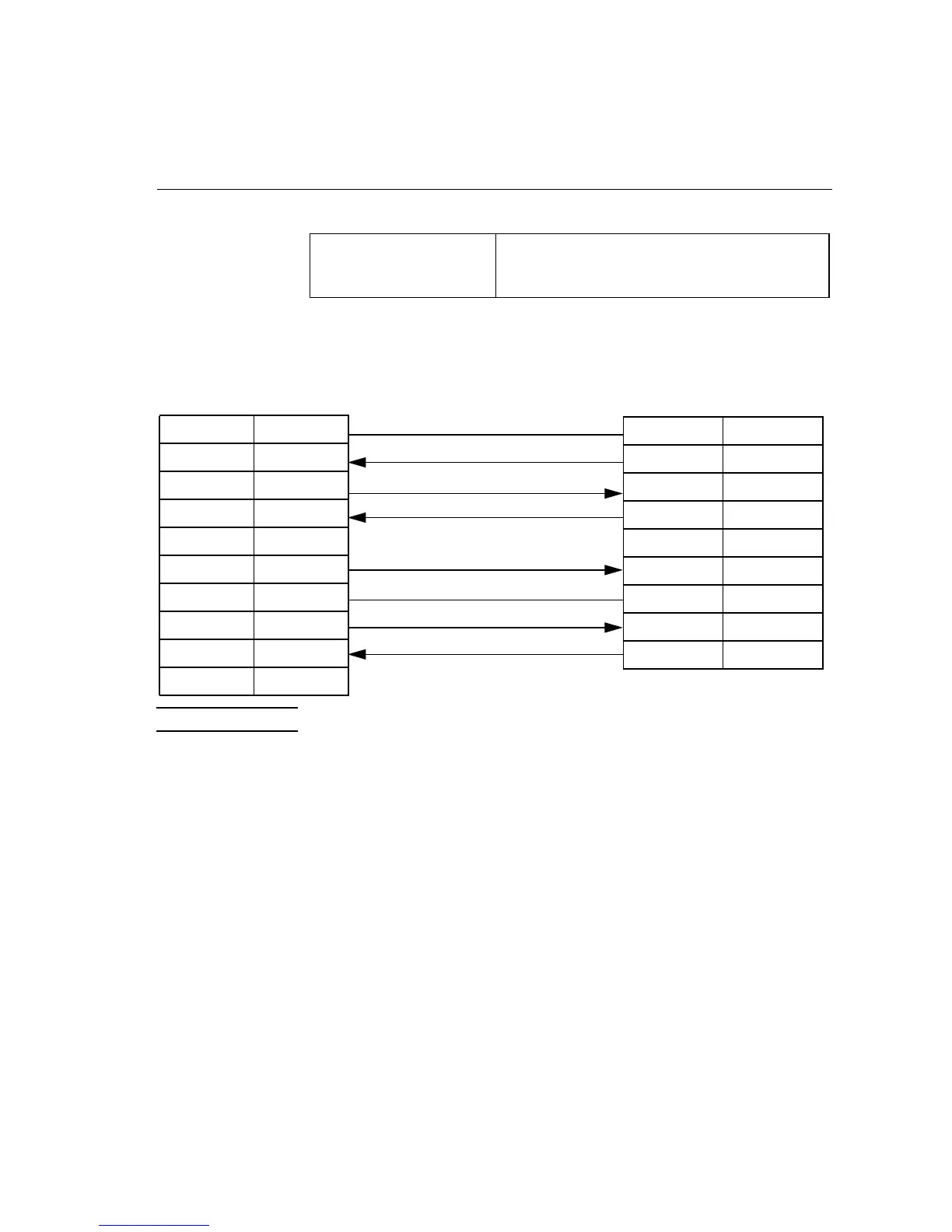

RS-232 connection
7
Note To be used with US modem behavior only.
Recommended HP cable: HP 40220 to HP2334/5 for printer access
(depends upon termtype used HP3000 and upon
type of printer).
25-pin male connector to DTC
1 - PGND -
2 - RD INPUT
3 - TD OUTPUT
4 - DCD INPUT
5 - GPO OUTPUT
6 - DTR OUTPUT
7 - SGND -
8 - RTS OUTPUT
20 - DSR INPUT
22 - CTS INPUT
25-pin female connector to
HP 2334/5
1 - PGND -
3 - TD OUTPUT
2 - RD INPUT
8 - DCD OUTPUT
6 - DRS OUTPUT
20 - DTR INPUT
7 - SGND -
4 - RTS INPUT
5 - CTS OUTPUT
