HP 83751A - Leveling with Detectors;Couplers;Splitters

I
-
Leveling with detectors/couplers/splitters
1. Connect the equipment as shown in Figure 2-1.
SYNTHESIZED SWEEPER
DIRECTIONAL COUPLER
OR POWER SPLITTER)
LEVELED OUTPUT
pg417ab

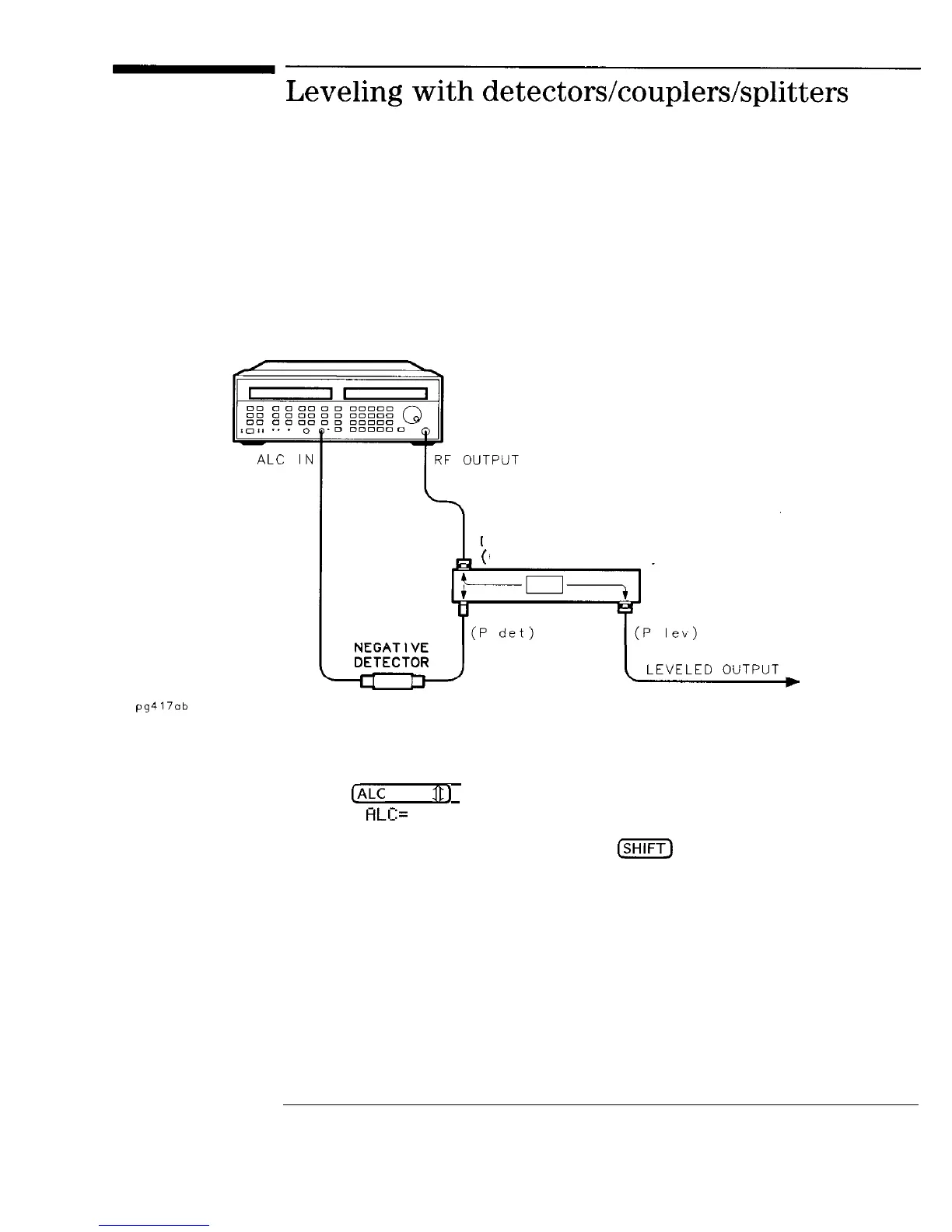

Figure 2-1. ALC Circuit Externally leveled
2. Press [ALC MODE 8) repeatedly until the MARKER/SWEEP/STATUS display
shows HLC= Diode. Note that the EXT ALC annunciator is lit.
3. Enter the coupling factor by selecting m EXT CAL and then entering
the desired number.
2-3
-
