Model 8901B Performance Tests

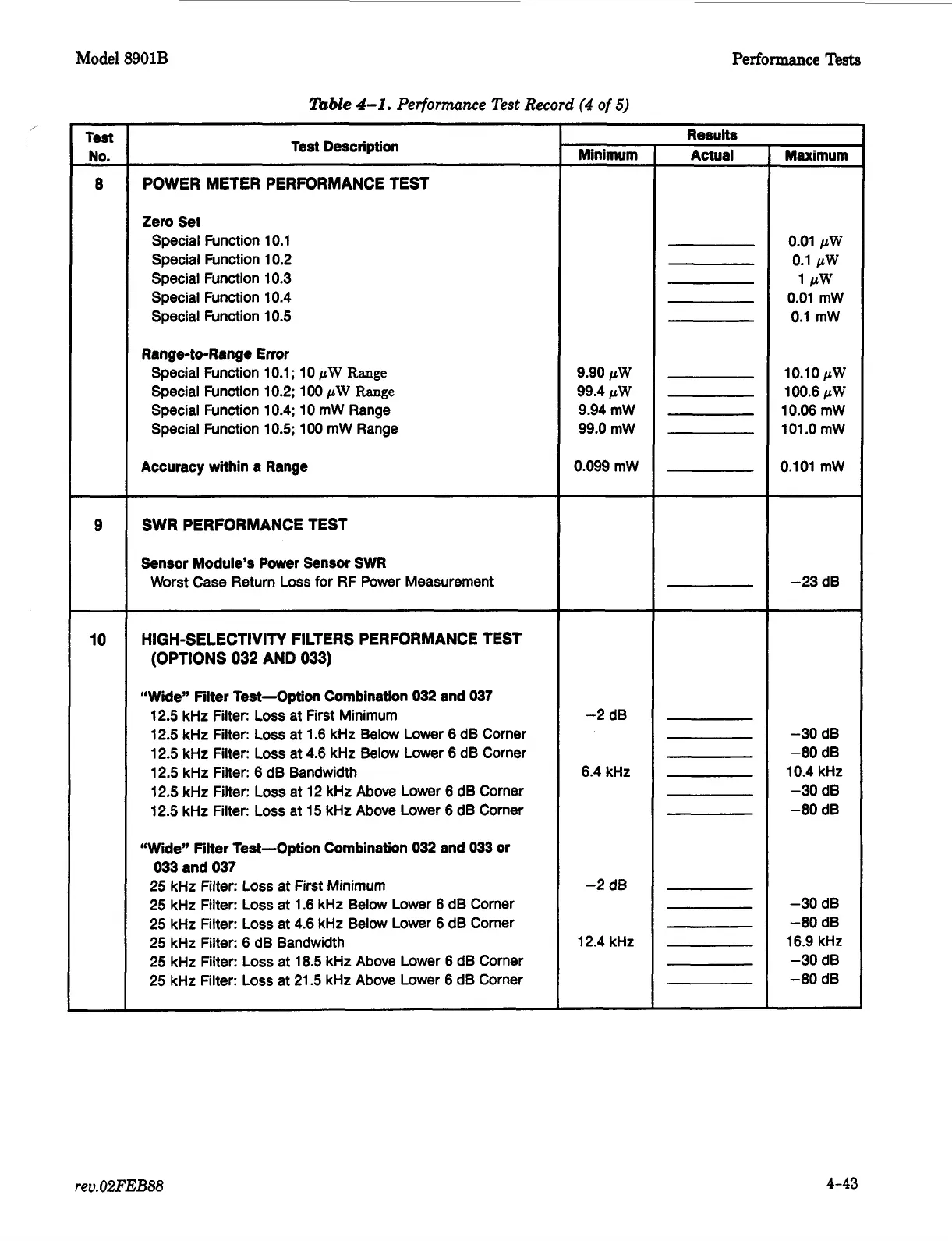

lbble 4-1. Performance Test Record (4 of 5)
Test
No.
8
-
-
9
-
10
-
Test Description
POWER METER PERFORMANCE TEST
Zero Set
Special Function 10.1
Special Function 10.2
Special Function 10.3
Special Function 10.4
Special Function 10.5
Range-to-Range Error
Special Function 10.1 ; 10 pW Range
Special Function 10.2; 100 pW Range
Special Function 10.4; 10 mW Range
Special Function
10.5; 100 mW Range
Accuracy within a Range
SWR PERFORMANCE TEST
Sensor Module’s Power Sensor SWR
Worst Case Return Loss for RF Power Measurement
Results
Minimum
9.90 pw
99.4 pw
9.94 mW
99.0 mW
0.099 mW
HIGH-SELECTIVITY FILTERS PERFORMANCE TEST
(OPTIONS 032 AND 033)
“Wide” Filter Test-Option Combination 032 and 037
12.5 kHz Filter: Loss at First Minimum
12.5 kHz Filter: Loss at 1.6 kHz Below Lower 6 dB Comer
12.5 kHz Filter: Loss at 4.6 kHz Below Lower 6 dB Corner
12.5 kHz Filter: 6 dB Bandwidth
12.5 kHz Filter: Loss at 12 kHz Above Lower 6 dB Corner
12.5 kHz Filter: Loss at 15 kHz Above Lower 6 dB Comer
“Wide” Filter Test-Option Combination 032 and 033 or
033 and 037
25 kHz Filter: Loss at First Minimum
25 kHz Filter: Loss at 1.6 kHz Below Lower 6 dB Corner
25 kHz Filter: Loss at 4.6 kHz Below Lower 6 dB Corner
25 kHz Filter: 6 dB Bandwidth
25 kHz Filter: Loss at 18.5 kHz Above Lower 6 dB Corner
25 kHz Filter: Loss at 21.5 kHt Above Lower 6 dB Corner
-2 dB
6.4 kHz
-2 dB
12.4 kHz
Actual Maximum
0.01 pw
0.1 pw
1 PW
0.01 mW
0.1 mW
10.10 pw
100.6 pW
10.06 mW
101.0 mW
0.101 mW
-23 dB
-30 dB
-80 dB
10.4 kHz
-30 dB
-80 dB
-30 dB
-80 dB
16.9 kHz
-30 dB
-80 dB
