HP A5800 Series Installation Guide

107
PoE+ (2 slots), A5800-48G-PoE+ TAA (2 slots), A5800-48G-PoE+ (1 slot), A5800-48G-PoE+ TAA (1 slot),
A5800-24G-PoE+, and A5800-24G-PoE+TAA.

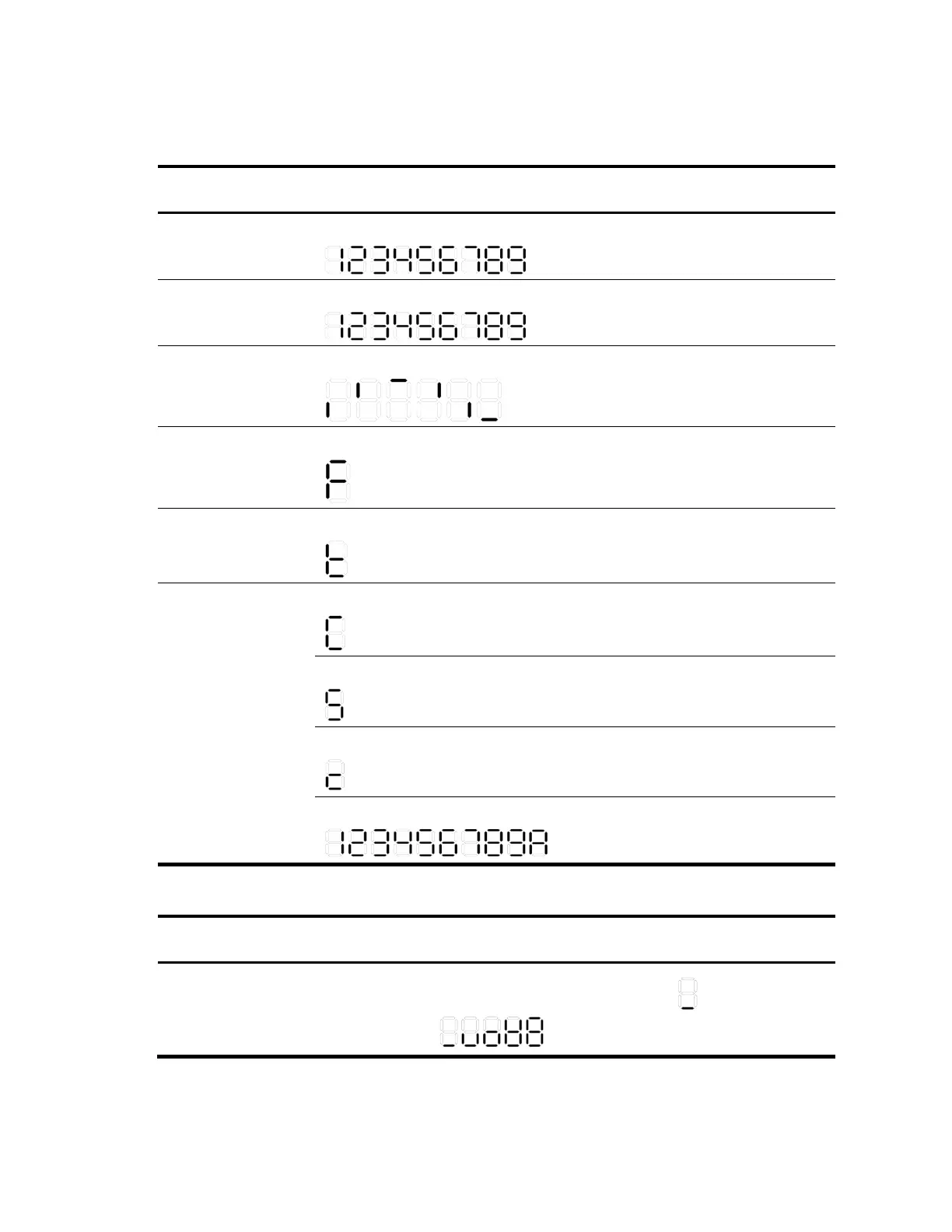

Table 30 Seven-segment LED description (I)
System status LED
(SYS) status
Seven-segment LED (Unit) status
Description
Flashing green
The LED displays numbers one by one.
POST is running, and the LED
displays the ongoing test item ID.
Flashing red
The LED displays flashing numbers.
POST has failed, and the LED flashes
the ID of the failed test item.
Flashing green
A bar rotates clockwise around the LED.
Software is loading.
Steady red
The LED displays a flashing F character.
The switch is experiencing a fan
failure.
Steady red
The LED displays a flashing t character.
The switch is in an over-temperature
condition.
Steady green
The LED displays a capital C character.
The switch is the command switch in
a cluster.
The LED displays an S character.
The switch is a member switch in a
cluster.
The LED displays a lowercase c character.
The switch is a candidate switch for
a cluster.
The LED displays a number.
The member ID of the switch (the
character A represents 10).
Table 31 Seven-segment LED description (II)
Port mode LED
(Mode) status
System status LED
(SYS) status
Seven-segment
LED (Unit) status
Description
Flashing green (1
Hz) (PoE mode)
Steady green
The LED displays
different signs.
0 - 20%
21 - 40%
41 - 60%
61 - 80%
81 - 100%
For example, the
sign indicates that
the switch is outputting 0 to 20% of the
maximum PoE output power.
