Connecting an AC power cord to the switch
This section applies to the A5800-48G-PoE+ (1 slot), A5800-48G-PoE+ TAA (1 slot), A5800-24G-PoE+,
A5800-24G-PoE+TAA, A5800-48G (1 slot), A5800-48G TAA (1 slot), A5800-24G, and A5800-24G
TAA switches.
To connect an AC power cord to these switches:
1. Connect one end of the AC power cord to the AC-input power receptacle on the switch (see Figure
36 or Figure 37).
2. Connect the other end of the power cord to the AC power outlet.

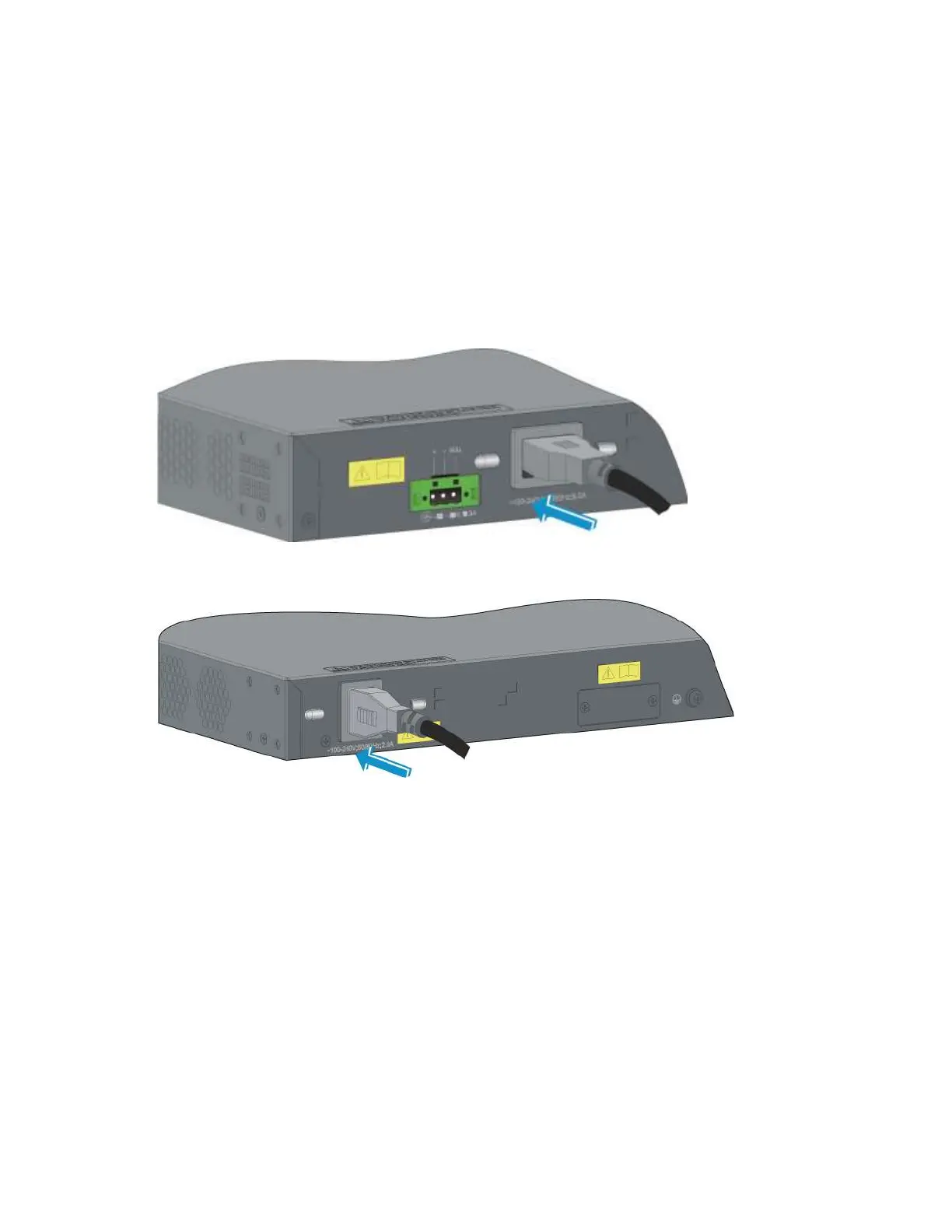

Figure 36 Connecting the AC power cord to the switch
Figure 37 Connecting the AC power cord to the switch
Connecting the switch to a –54 VDC output RPS
This section applies to the A5800-48G-PoE+ (1 slot), A5800-48G-PoE+ TAA (1 slot), A5800-24G-PoE+,
and A5800-24G-PoE+TAA switches.
To connect these switches to the RPS that provides –54 VDC output:
1. Unpack the RPS power cord, identify the plug for connecting to the switch, correctly orient the plug
with the RPS receptacle on the switch chassis, and insert the plug into the receptacle (see callout 1
in Figure 38).
The receptacle is foolproof. If you cannot insert the plug into the receptacle, re-orient the plug rather
than use excessive force to push it in.
2. Tighten the screws on the plug with a flat-blade screwdriver to secure the plug in the RPS receptacle
(see callout 2 in Figure 38).
3. Connect the other end of the power cord to the RPS.
