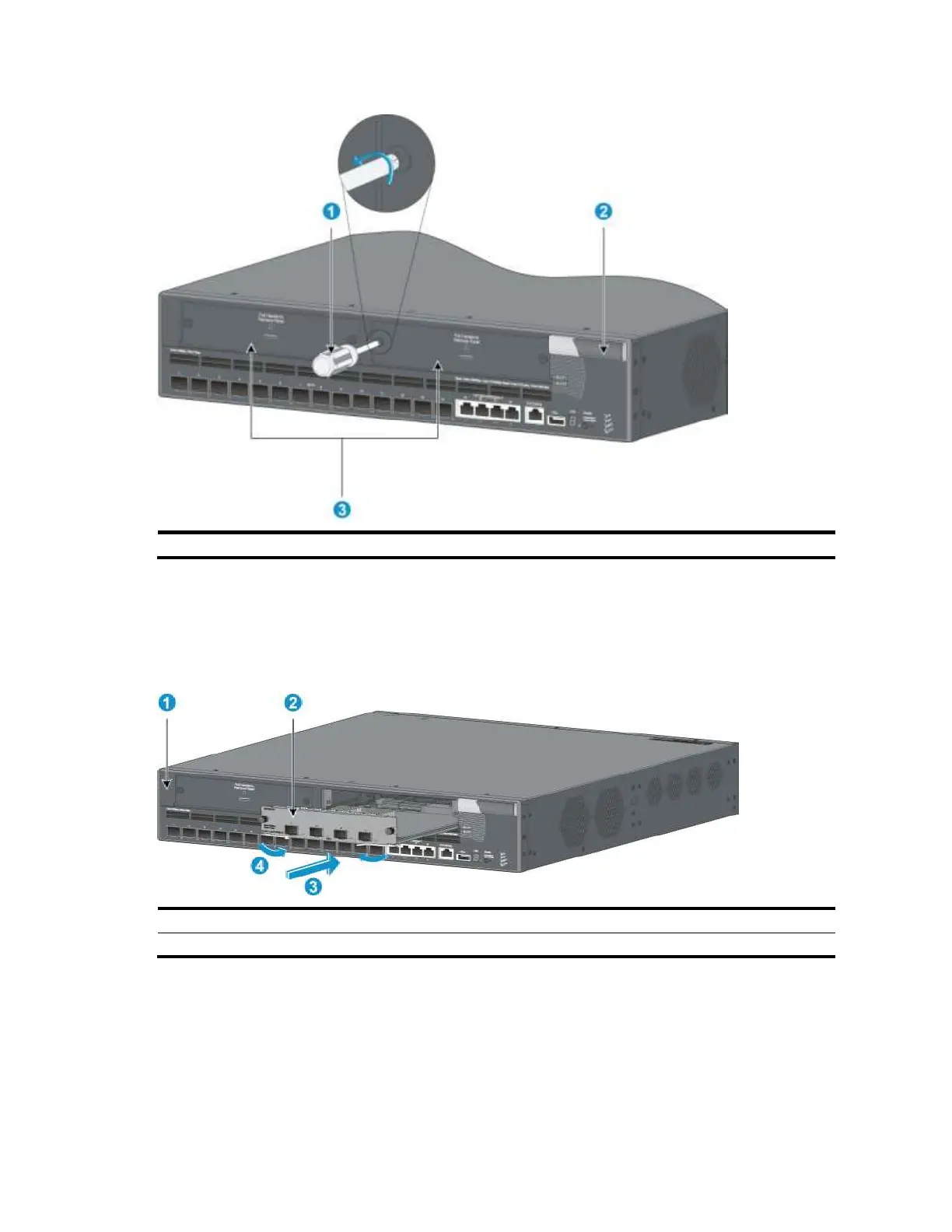

Figure 48 Removing the filler panel over an interface card slot
4. Unpack the interface card and make sure that the ejector levers are perpendicular to the card
panel.
5. Gently push the interface card in along the slot guide rails until the interface card has good contact
with the switch chassis, and push the ejector levers inward.
Figure 49 Installing an interface card
(3) Push the interface card
(4) Push the ejector levers inward
6. Tighten the captive screws with a Phillips screwdriver to attach the interface card in the slot.
