220

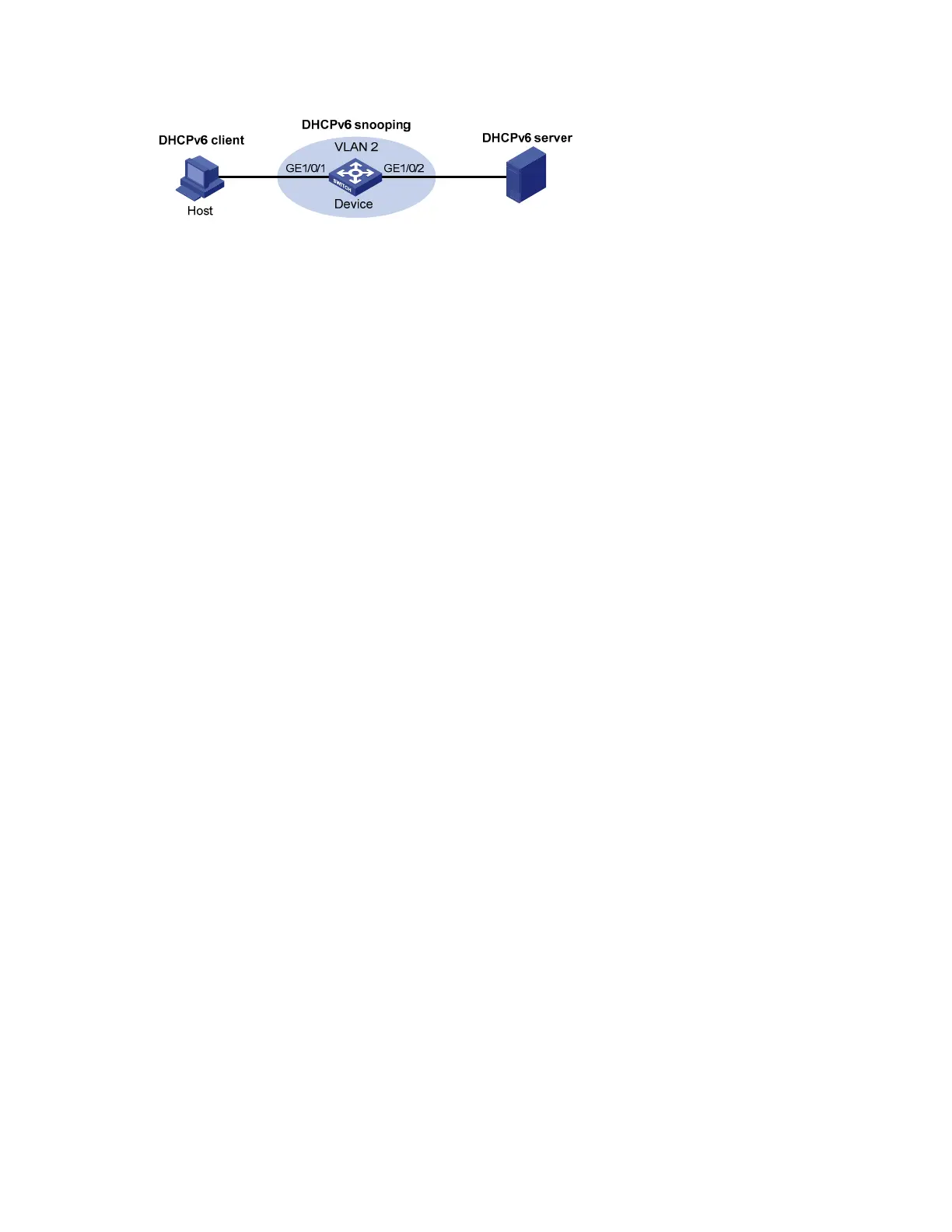

Figure 71 Network diagram for configuring dynamic IPv6 source guard binding by DHCPv6 snooping
Configuration procedure
1. Configure DHCPv6 snooping.
# Enable DHCPv6 snooping globally.
<Device> system-view
[Device] ipv6 dhcp snooping enable
# Enable DHCPv6 snooping in VLAN 2.
[Device] vlan 2
[Device-vlan2] ipv6 dhcp snooping vlan enable
[Device-vlan2] quit
# Configure the port connecting to the DHCP server as a trusted port.
[Device] interface gigabitethernet 1/0/2
[Device-GigabitEthernet1/0/2] ipv6 dhcp snooping trust
[Device-GigabitEthernet1/0/2] quit
2. Configure the IPv6 source guard function.
# Configure the IPv6 source guard function on GigabitEthernet 1/0/1 to filter packets based on both the
source IP address and MAC address.
[Device] interface gigabitethernet 1/0/1
[Device-GigabitEthernet1/0/1] ipv6 verify source ipv6-address mac-address
[Device-GigabitEthernet1/0/1] quit
Verification
# Display the dynamic IPv6 source guard binding entries generated on port GigabitEthernet 1/0/1.
[Device] display ipv6 source binding
Total entries found: 1
MAC Address IP Address VLAN Interface Type
040a-0000-0001 2001::1 2 GE1/0/1 DHCPv6-SNP
# Display all DHCPv6 snooping entries to see whether they are consistent with the dynamic IP source
guard entries generated on GigabitEthernet 1/0/1.
[Device] display ipv6 dhcp snooping user-binding dynamic
IP Address MAC Address Lease VLAN Interface
============================== ============== ========== ==== ==================
2001::1 040a-0000-0001 286 2 GigabitEthernet1/0/1
--- 1 DHCPv6 snooping item(s) found ---
The output shows that a dynamic IPv6 source guard entry has been generated on port GigabitEthernet
1/0/1 based on the DHCPv6 snooping entry.
