The RSE-X1s of the device are hot-swappable.
When two RSE-X1s are installed on device, the ACT LED (green) is on.
For more information about the RSE-X1 LEDs, refer to Table 1-11 in Chapter 1 “Router
Overview.”
Removing an RSE-X1
1) For a device configured with only one RSE-X1, you need to power off the device before
removing the RSE-X1. Online removal of the RSE-X1 may cause damages to the RSE-X1,
FIPs, and HIMs/MIMs.
2) For a device configured with two RSE-X1s, you can remove one of the RSE-X1s when both of
them are operating normally.
To remove the active RSE-X1, you are recommended to use the slave switchover command
to implement manual active/standby switchover in system view of the active RSE-X1. For details
about this command, refer to HA in the System Volume of HP SR6600 Routers User Manual.
To remove the standby RSE-X1, follow steps mentioned below.
Follow these steps to remove an RSE-X1:
Step1 Face the front panel of the router.
Step2 Locate the RSE-X1 to be removed. The figures below illustrate how to remove the RSE-X1 in
Slot 5.
Step3 Loosen the captive screws counterclockwise with a Philips screwdriver until all spring pressure
is released.

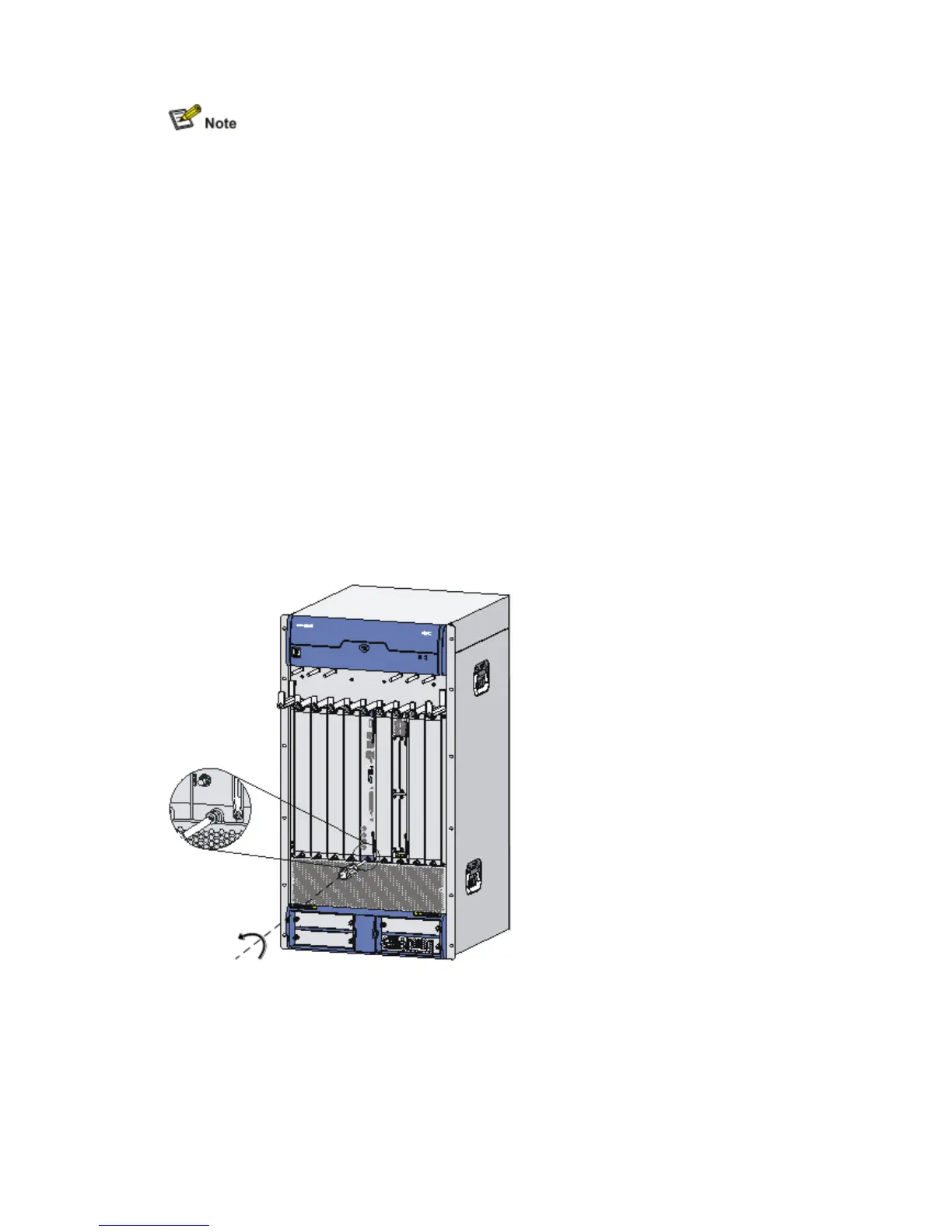

Figure 4-18 Loosen the captive screws on the RSE-X1
Step4 Pull the two ejector levers at both ends of the RSE-X1 outward to release the RSE-X1, and
then gently pull the RSE-X1 out along the slide rails.
