Removing and Replacing the Cover

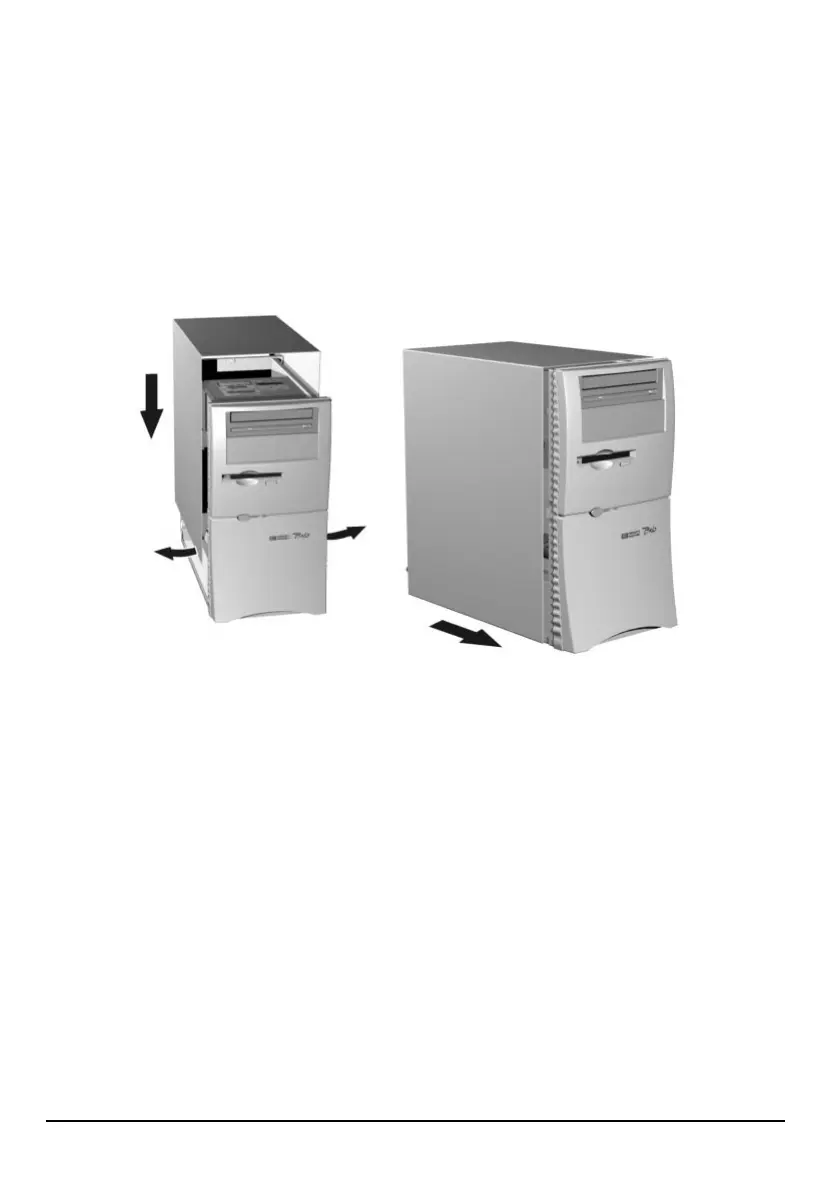

Replacing the Cover
1
Pull the bottom edges of the PC cover apart slightly.
2
Lower the cover onto the PC, leaving a gap of about 1cm (0.3 inches) between the
cover and the front of the PC.
3
Check that the cover is correctly held in place with the metal tabs positioned inside
the guide rails.
4
Slide the cover towards the front of the PC.
5
Tighten the three screws on the back of the computer.
➁
➁➁
➁
➀
➀➀
➀
➃
➃➃
➃
