5–10 Maintenance and Service Guide
Removal and Replacement Procedures

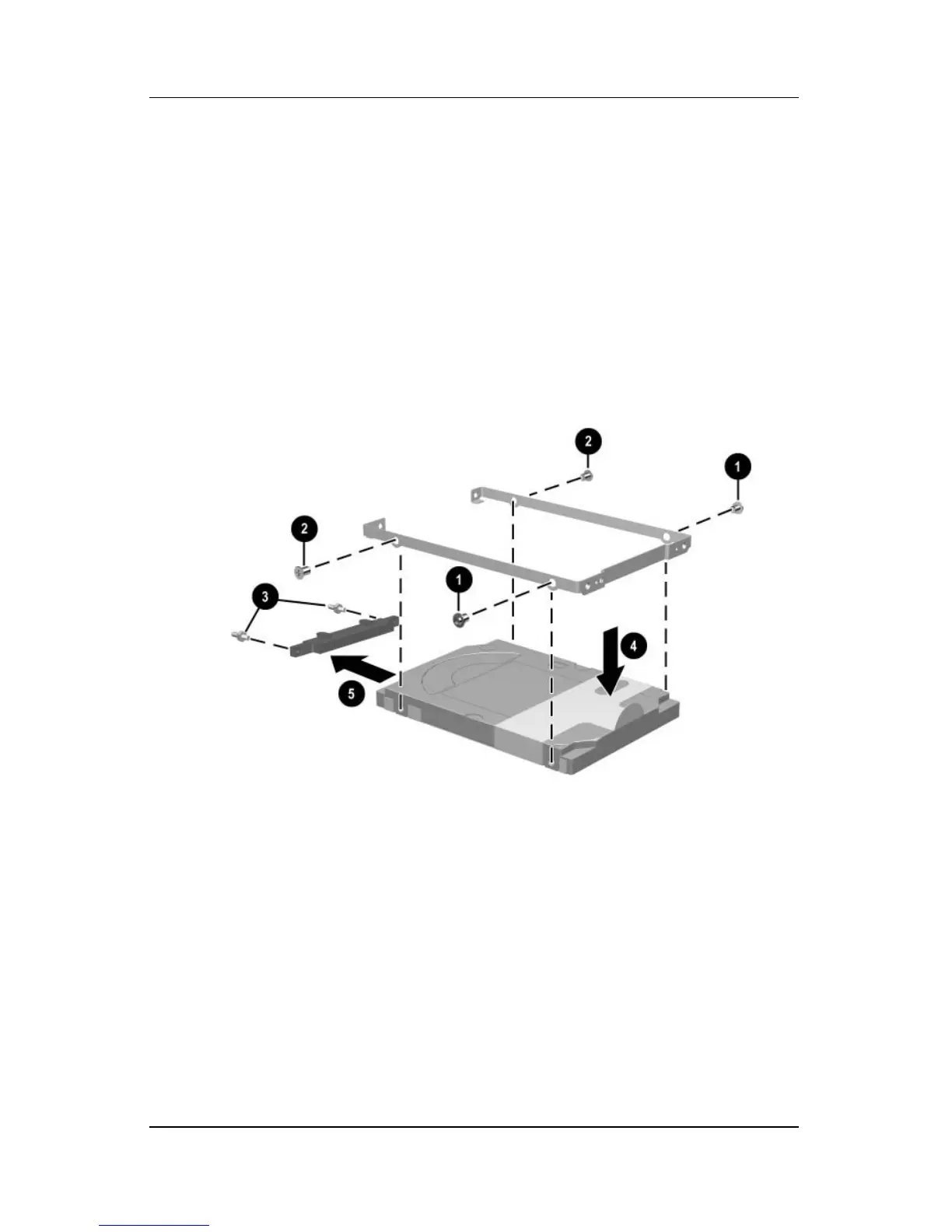

g. Remove the two T5M2.5×4.0 screws 1 and the
two PM3.0×3.5 screws 2 that secure the hard drive to
the hard drive frame.
h. Use a 4.0-mm socket to remove the two M2.0×10.0
alignment pins 3 that secure the hard drive to the hard
drive frame.
i. Remove the hard drive 4 from the hard drive frame.
j. Remove the hard drive connector 5 from the hard drive.
Disassembling the Hard Drive
Reverse the above procedure to assemble and install the
hard drive.
