Removal and Replacement Procedures
Maintenance and Service Guide 5–35
5.18 Display Assembly
1. Prepare the notebook for disassembly (refer to Section 5.3).
2. Remove the keyboard (refer to Section 5.9).
3. Disconnect the wireless antenna cables from the Mini PCI
wireless communications board (refer to Section 5.12).
4. Remove the LED switch cover (refer to Section 5.15).

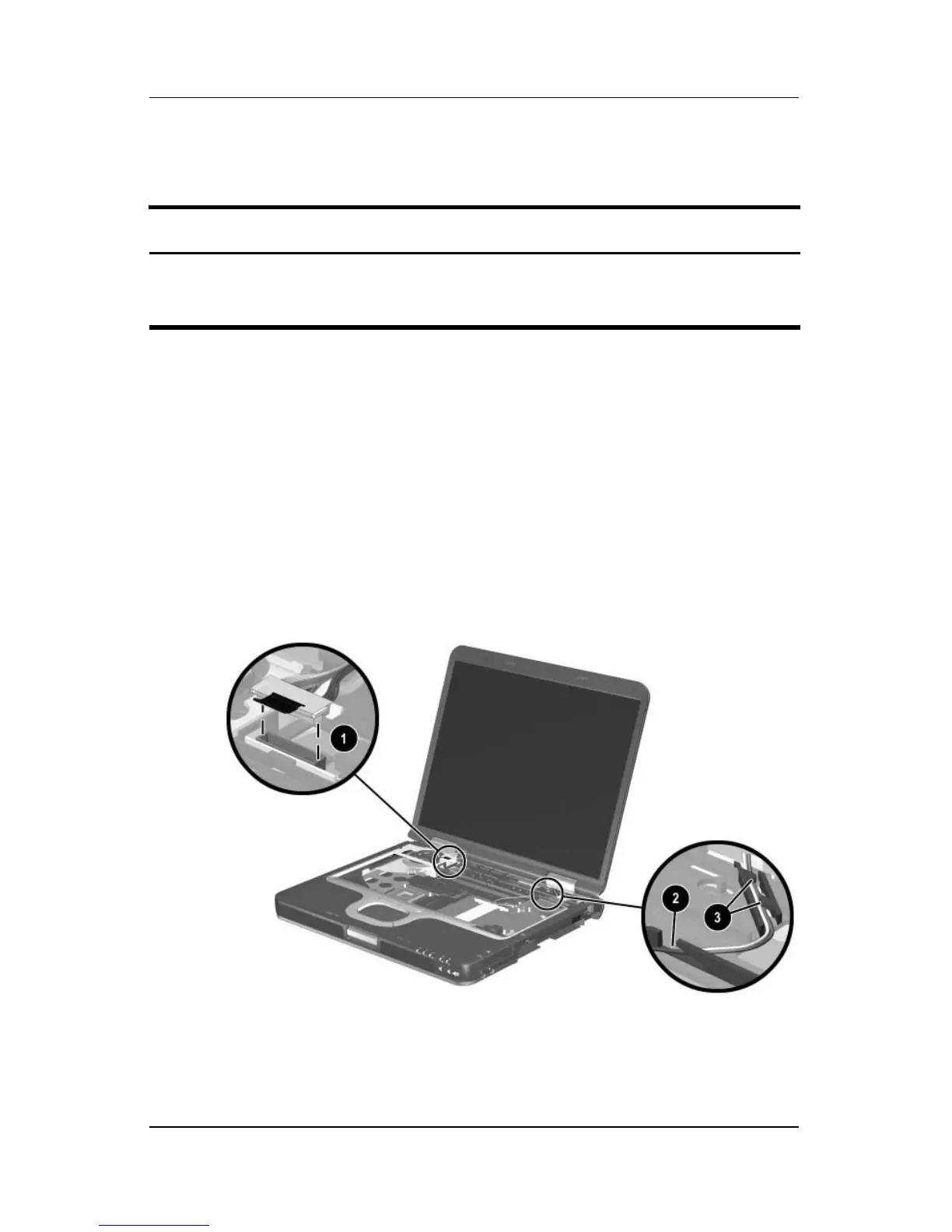

5. Disconnect the display cable 1 from the system board.
6. Remove the wireless antenna cables from the opening 2 and
the clips 3 in the top cover.
Disconnecting the Display Cables
Spare Part Number Information
15.0-inch, UXGA, TFT
15.0-inch, SXGA+, TFT
15.0-inch, XGA, TFT
345060-001
345059-001
345058-001
To Next Page
