5–38 Maintenance and Service Guide
Removal and Replacement Procedures
5.19 Top Cover
1. Prepare the notebook for disassembly (refer to Section 5.3).
2. Remove the keyboard (refer to Section 5.9).
3. Remove the LED switch cover (refer to Section 5.15).
4. Remove the display assembly (refer to Section 5.18).
5. Turn the notebook upside down with the front facing you.
6. Remove the 17 T8M2.0×6.0 screws that secure the top cover
to the notebook.

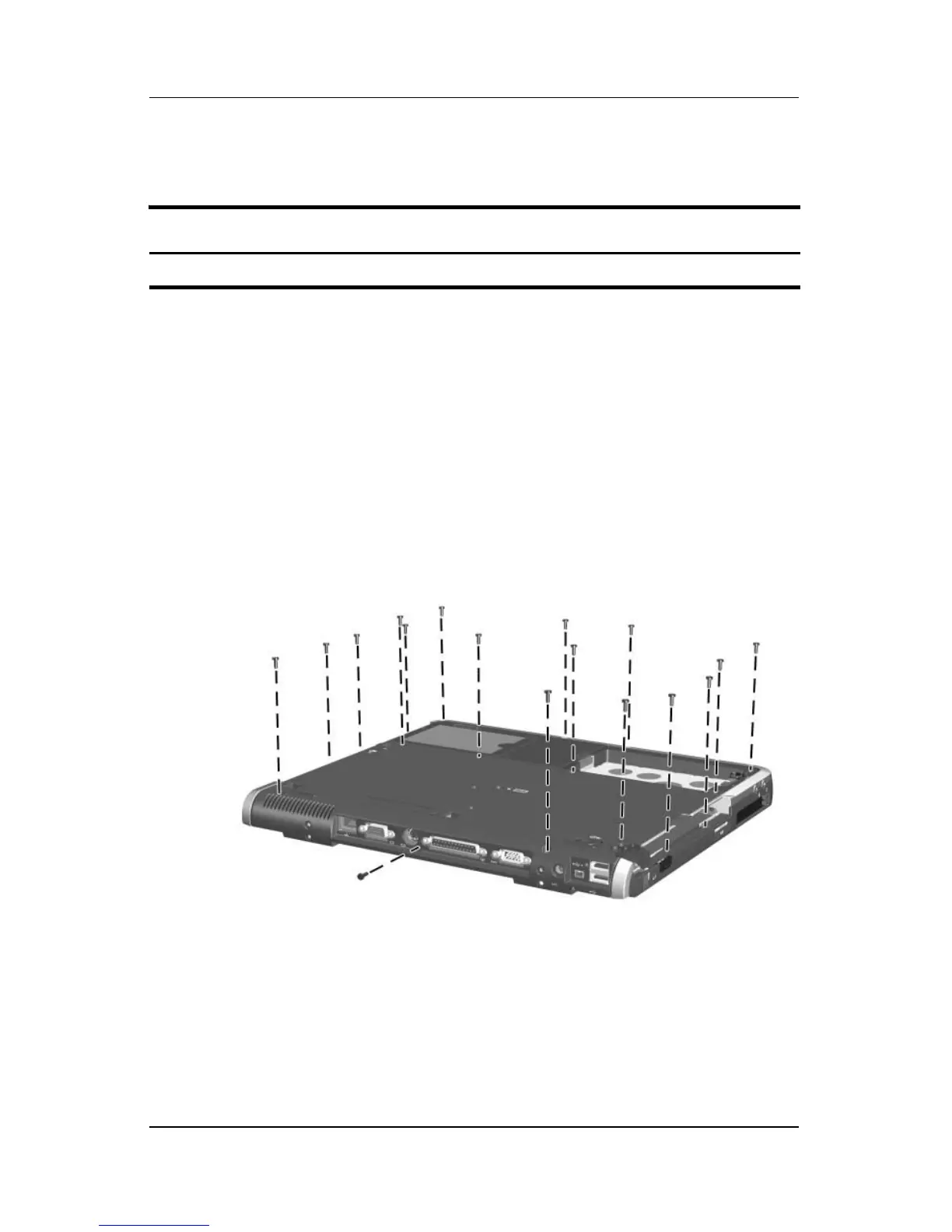

Removing the Top Cover Screws
Spare Part Number Information
Top cover (includes TouchPad and speaker) 345061-001
