Removal and Replacement Procedures
Maintenance and Service Guide 5–23
5.11 Modem Board
1. Prepare the notebook for disassembly (refer to Section 5.3).
2. Release the keyboard (refer to Section 5.9).
3. Remove the two T8M2.0×4.0 screws 1 that secure the
modem board to the notebook.
4. Lift up on the right side of the modem board 2 to disconnect
the board from the system board.

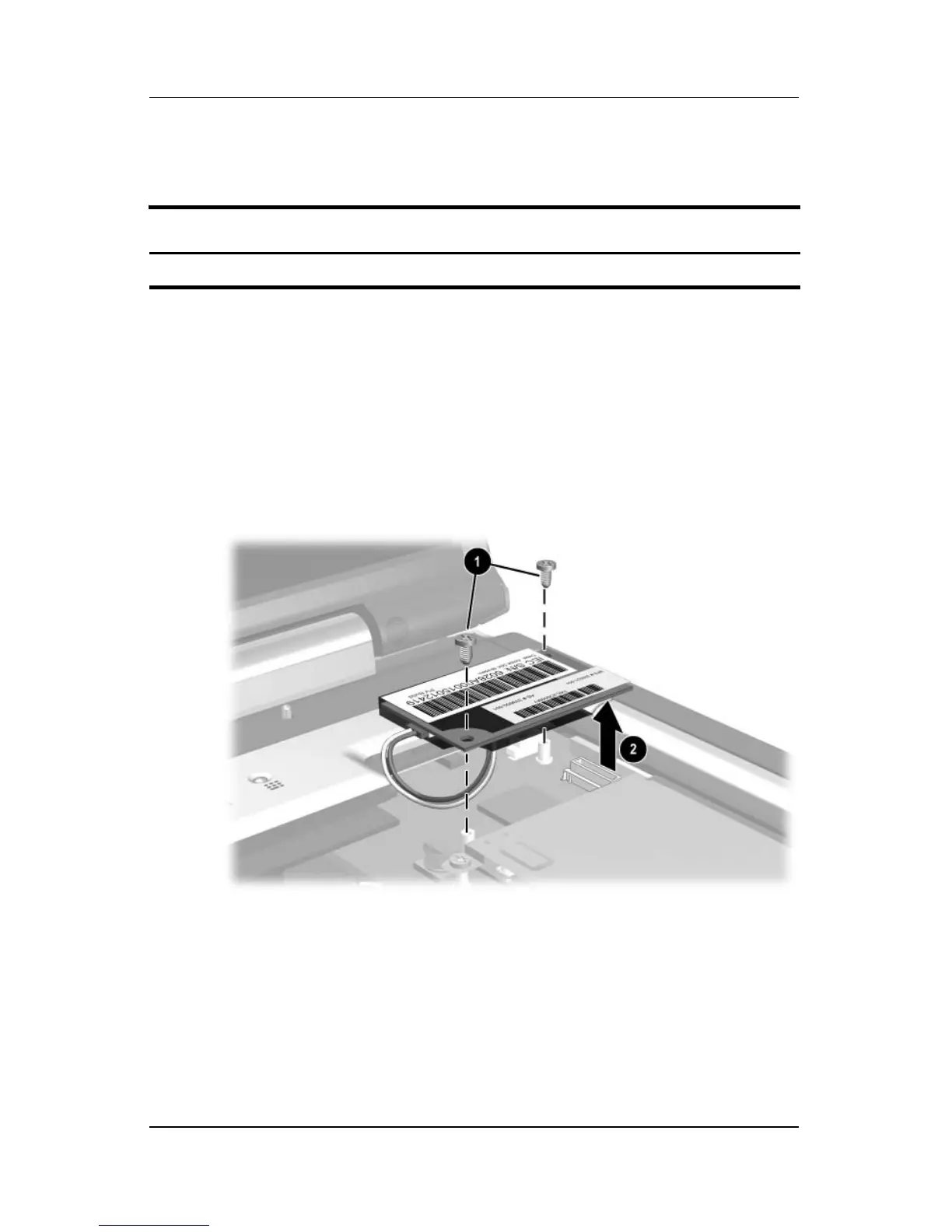

Removing the Modem Board Screws
Spare Part Number Information
Modem board 325521-001
