2–18 Maintenance and Service Guide
Troubleshooting

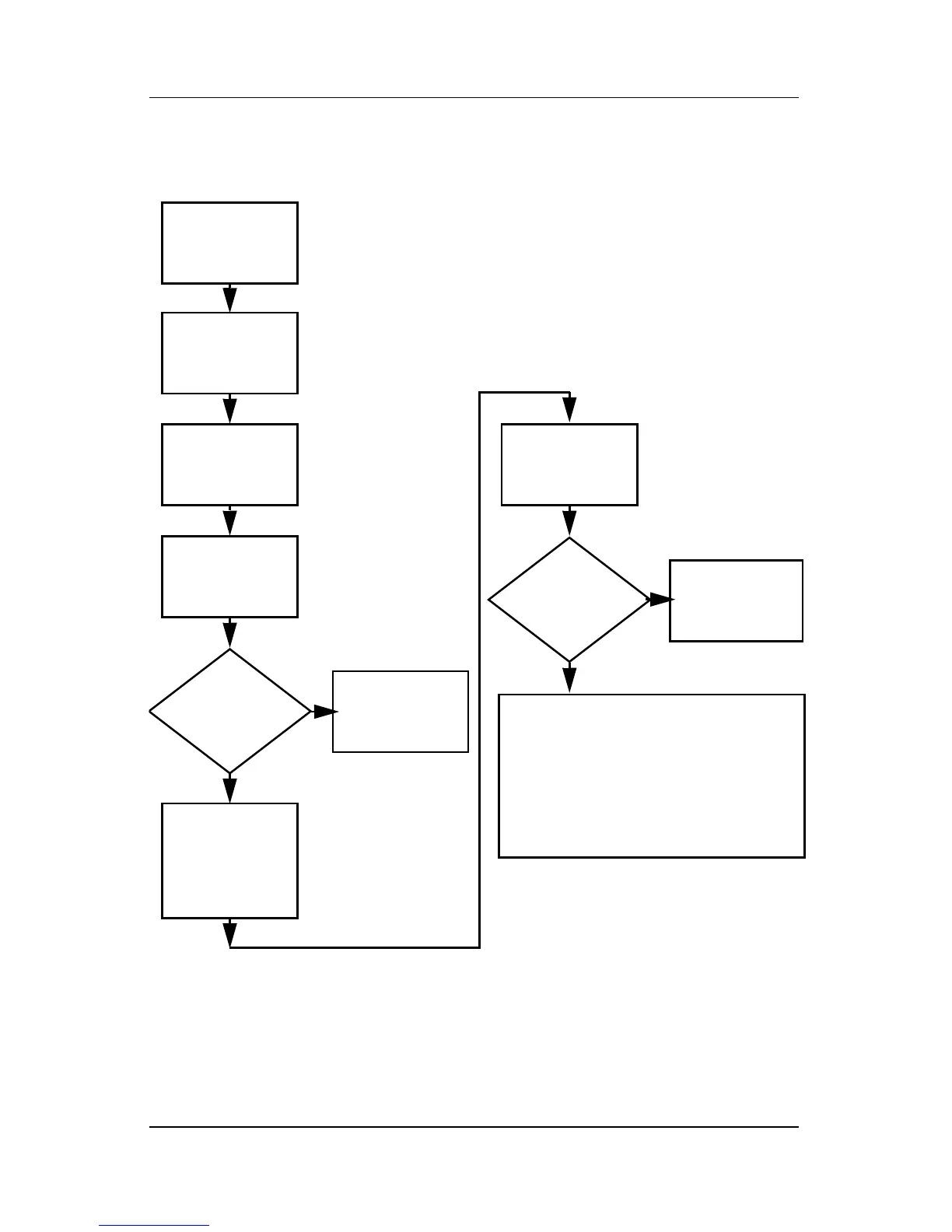

Flowchart 2.8—Nonfunctioning Port Replicator
Y
N
Reseat power
cord in Port
Replicator and
power outlet.
N
Replace the following Port Replicator
components one at a time. Check notebook
operation after each replacement.
1. Power supply
2. I/O board
3. Backplane board
4. Switch box
5. Port Replicator motor mechanism
Check voltage
setting on Port
Replicator.
Reseat monitor
cable connector at
Port Replicator.
Reinstall
notebook into Port
Replicator.
Port
Replicator
operating?
Port
Replicator
operating?
Remove
notebook, reseat
all internal parts,
and replace any
damaged items in
Port Replicator.
Done
Done
Y
Nonfunctioning
Port Replicator.
To Next Page
