5–34 Maintenance and Service Guide
Removal and Replacement Procedures
5.17 Security Module (TPM)
1. Prepare the notebook for disassembly (refer to Section 5.3).
2. Remove the LED switch cover (refer to Section 5.15).
3. Remove the PM3.5×3.0 screw 1 that secures the security
card to the system board.
4. Lift the security module straight up 2 to disconnect it from
the system board.

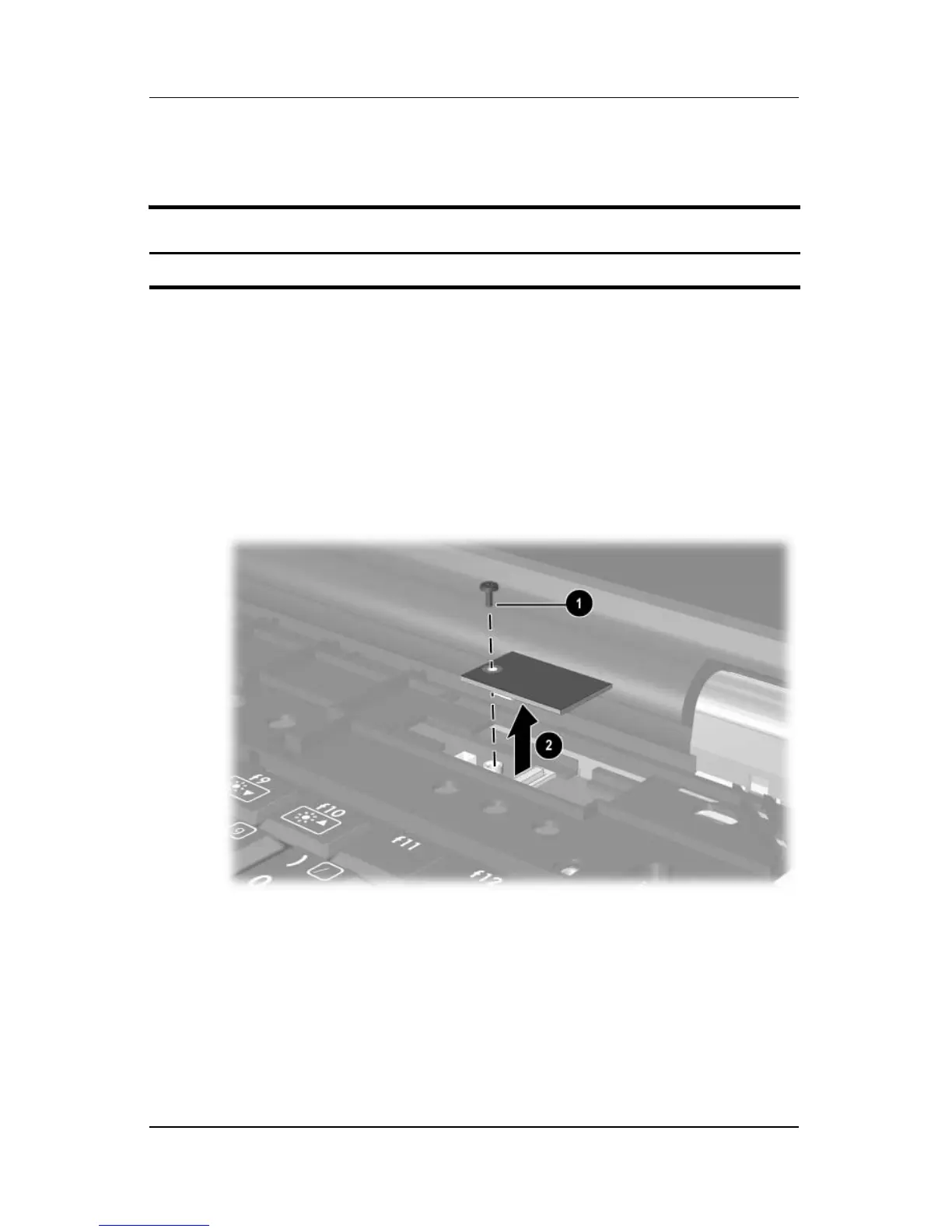

Removing the TPM Security Module
Reverse the above procedure to install the security card.
Spare Part Number Information
Security Module (TPM) 345856-001
