Removal and Replacement Procedures
Maintenance and Service Guide 5–39

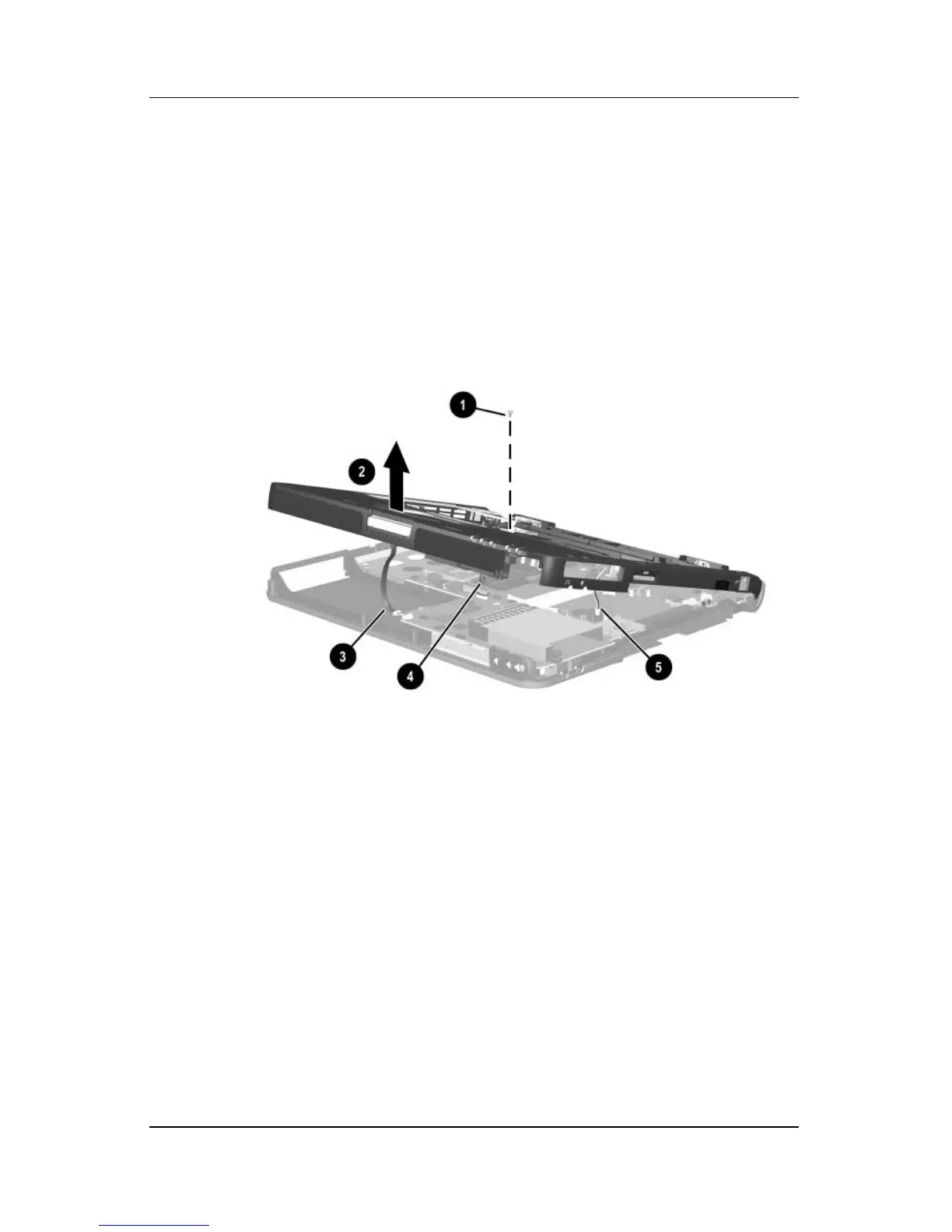

7. Turn the notebook right-side up with the front facing you.
8. Remove the TM2.0×4.0 screw 1 near the fan that secures
the top cover to the notebook.
9. Lift the front edge of the top cover 2 until the speaker
cable 3, TouchPad cable 4, and microphone cable 5 are
accessible.
Releasing the Top Cover
