5–40 Maintenance and Service Guide
Removal and Replacement Procedures
10. Disconnect the speaker 1 and microphone cables 2.
11. Release the ZIF connector 3 to which the TouchPad cable is
attached and disconnect the TouchPad cable 4 from the
system board.

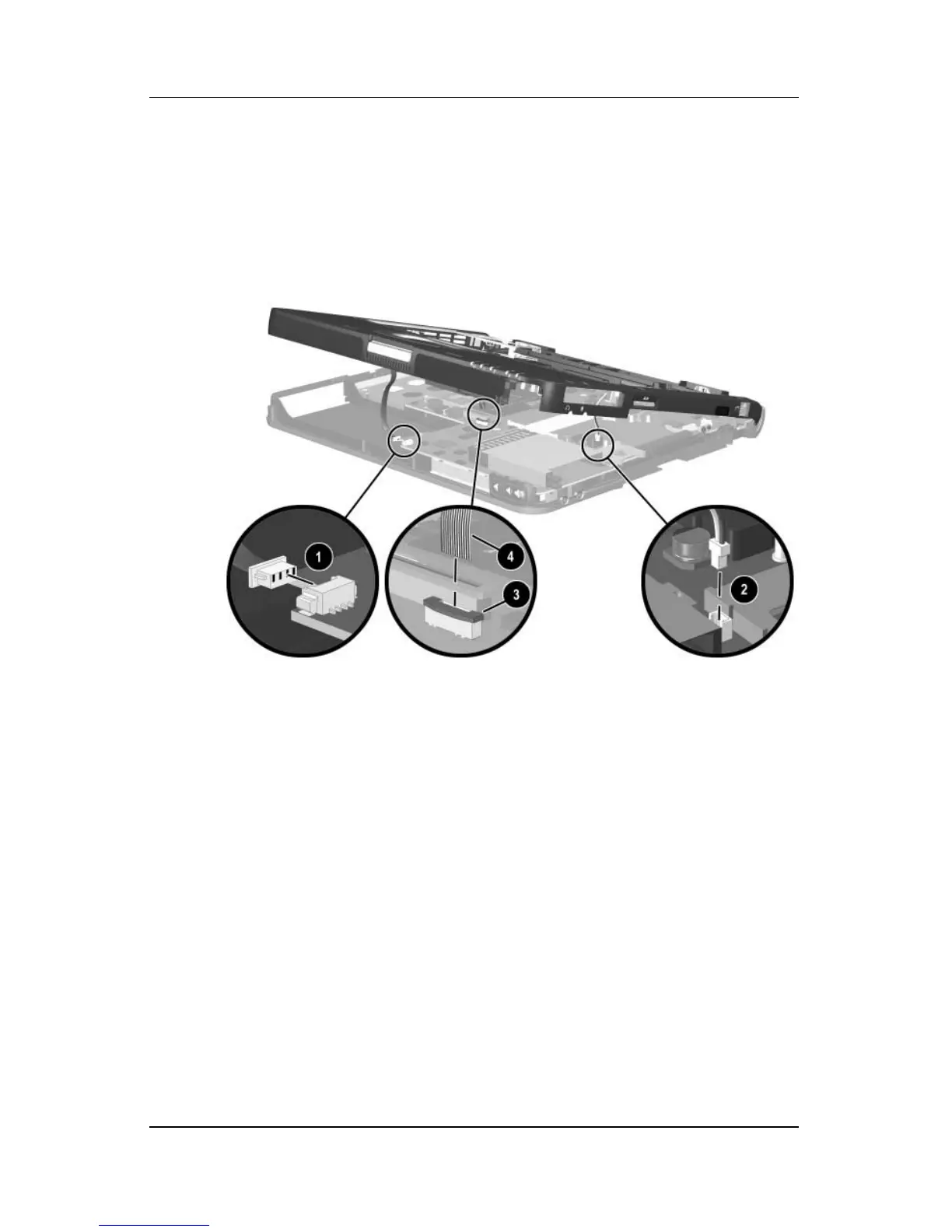

Disconnecting the Top Cover Cables
12. Remove the top cover.
Reverse the above procedure to install the top cover.
