5ā30 Maintenance and Service Guide
Removal and Replacement Procedures

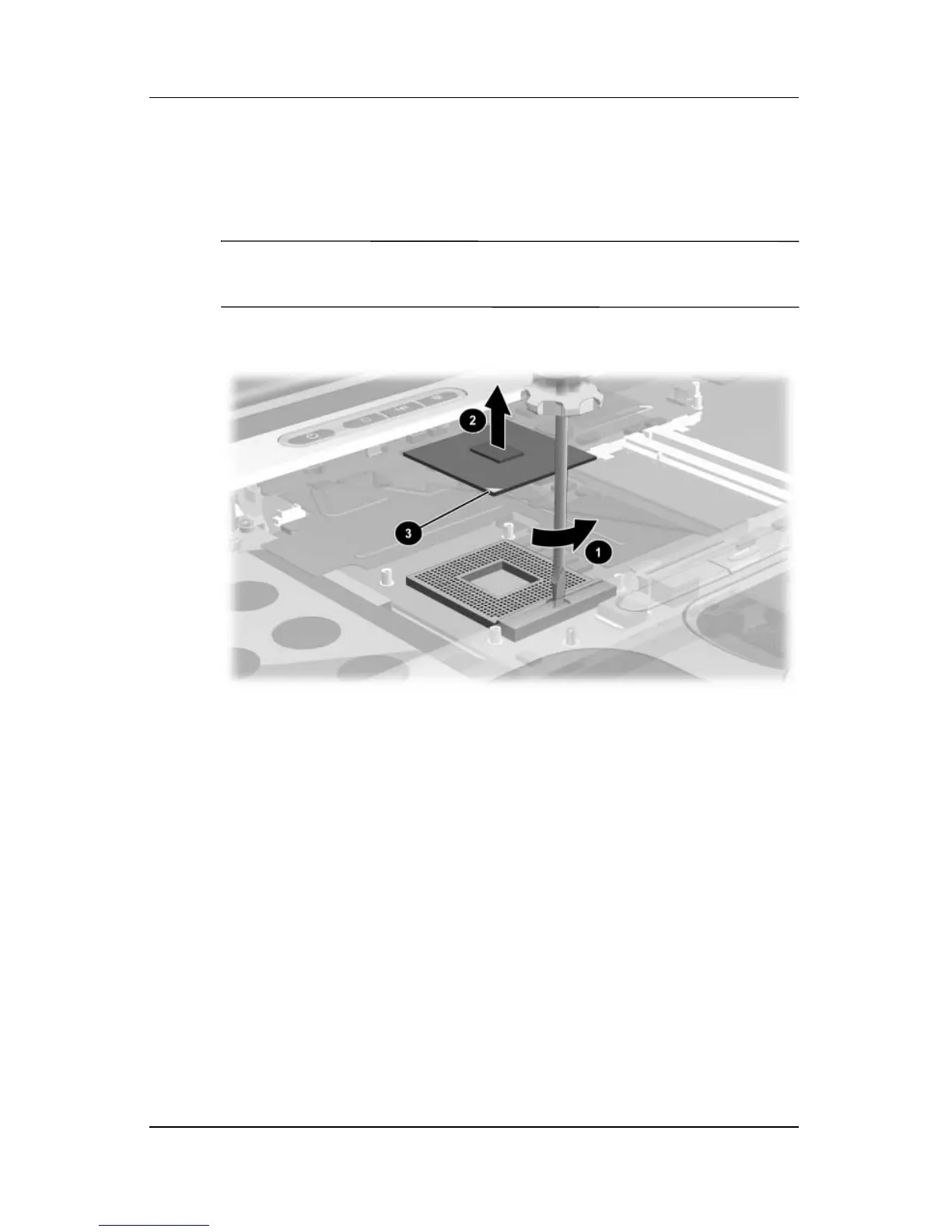

4. Use a flat-bladed screwdriver to turn the processor locking
screw one-quarter turn counterclockwise 1.
5. Remove the processor from the system board socket 2.
ā
Note that the gold triangle 3 on the processor should be aligned
in the front left corner when you install the processor.
Removing the Processor
Reverse the above procedure to install the processor.
