Removal and Replacement Procedures
Maintenance and Service Guide 5–45

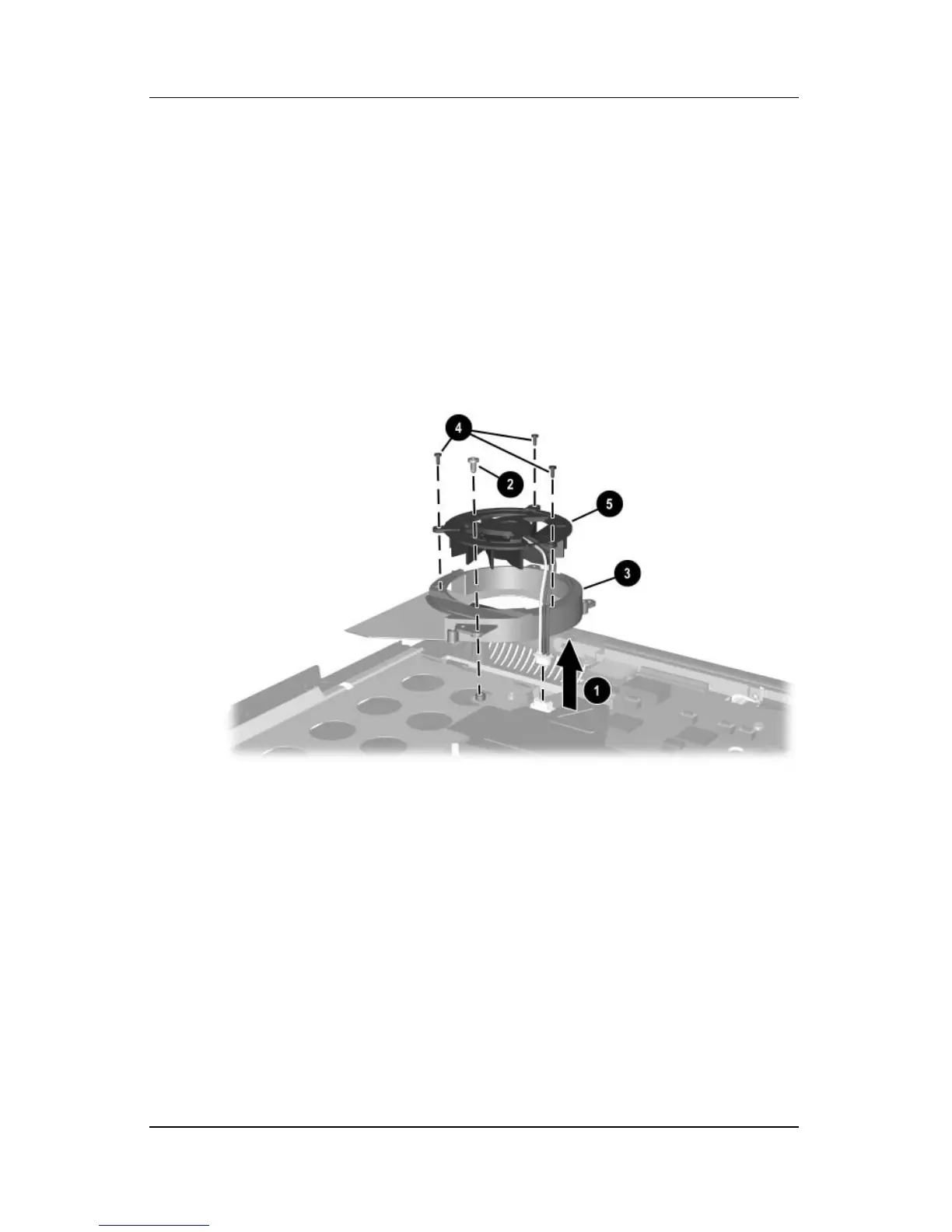

2. Disconnect the fan cable 1.
3. Remove the T8M2.0×4.0 screw 2 that secures the fan
assembly to the notebook.
4. Remove the fan assembly 3 from the notebook.
5. Remove the three PM1.5×4.0 screws 4 that secure the
fan to the fan housing.
6. Remove the fan 5.
Removing the Fan
Reverse the above procedure to install the fan.
