C–4 Maintenance and Service Guide
Screw Listing

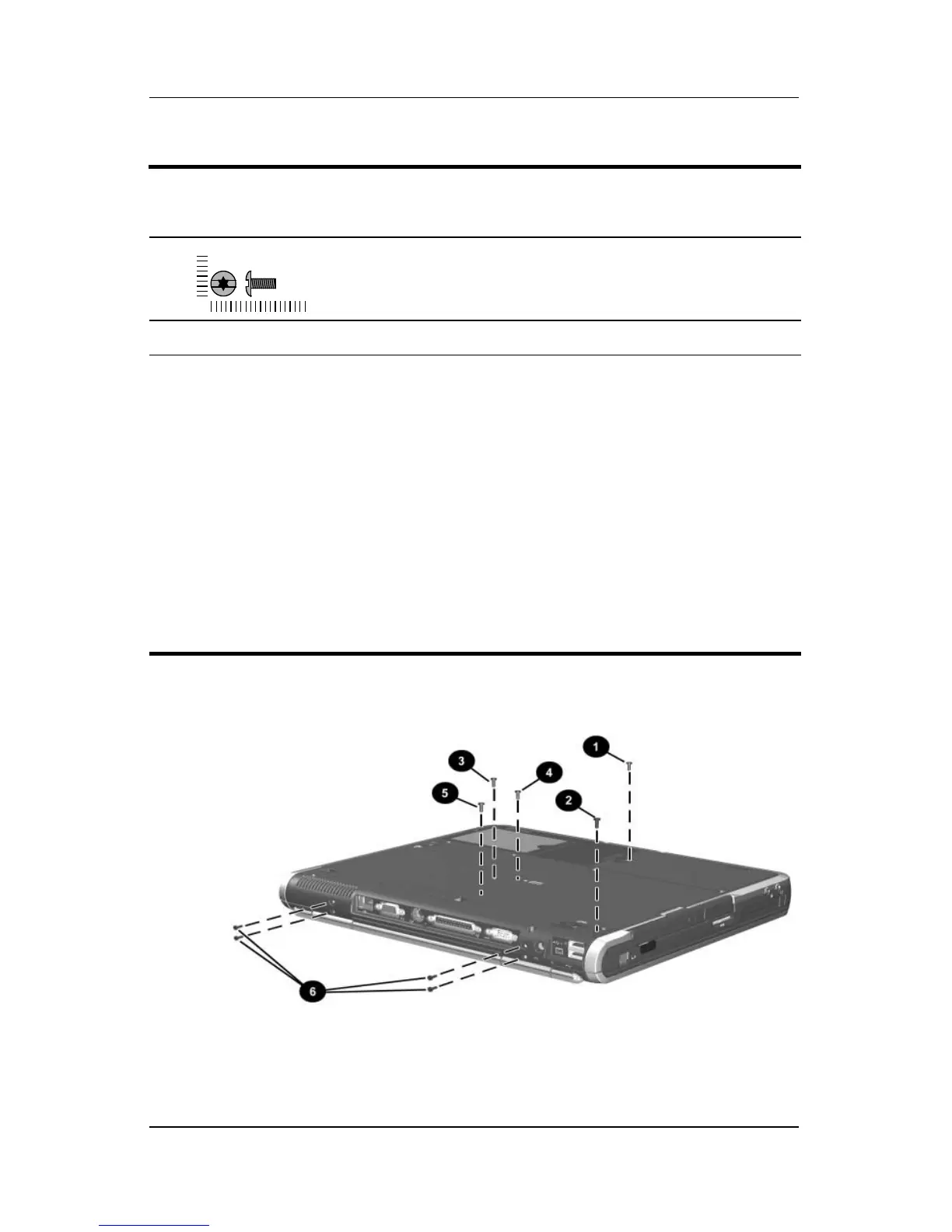

Torx T8M2.0×6.0 Screw Locations
Table C-4
Torx T8M2.0×6.0 Screw
Color Qty. Length Thread
Head
Width
Black 27 6.0 mm 2.0 mm 5.0 mm
Where used:
1 One screw that secures the hard drive cover to the notebook
(documented in Section 5.3)
2 One screw that secures the Bluetooth cover to the notebook
(documented in Section 5.6)
3 One screw that secures the optical drive to the notebook
(documented in Section 5.8)
4 One screw that secures the keyboard to the notebook
(documented in Section 5.9)
5 One screw that secures the LED switch cover to the notebook
(documented in Section 5.15)
6 Four screws that secure the display assembly and hinge covers to the
notebook (documented in Section 5.18)
mm
