Memory Modules
Hardware and Software Guide 9–7
7. Remove the base enclosure cover.
8. Turn the tablet PC display-side up with the front toward you
and open it.

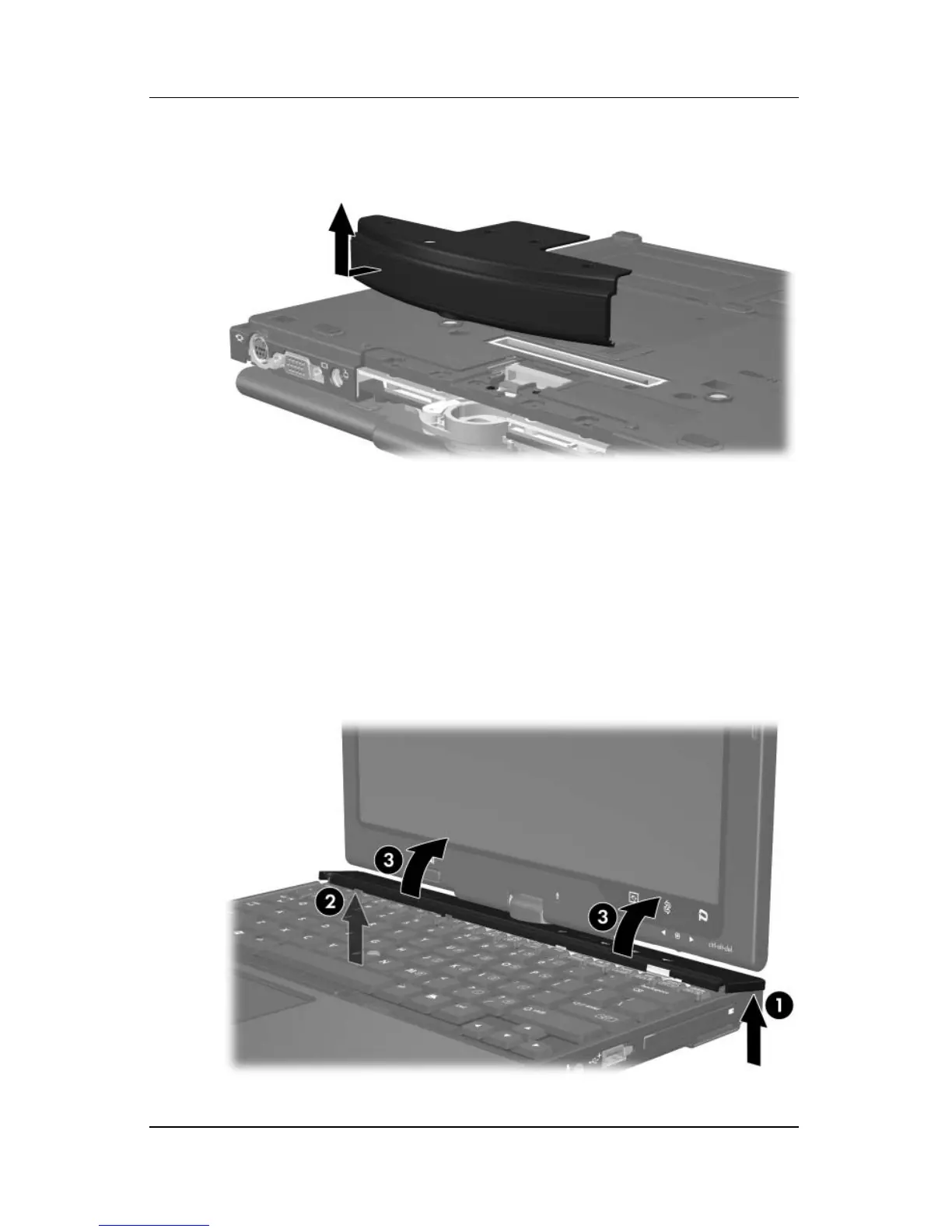

9. Lift up the right rear corner edge 1 and then the left rear
corner edge 2 of the keyboard cover to release the rear edge
of the cover from the tablet PC.
10. Tilt the keyboard cover up from the front edge 3 to release
the front edge of the cover from the tablet PC.
