Memory Modules
Hardware and Software Guide 9–13
19. To insert a new memory module into the memory
module
slot:

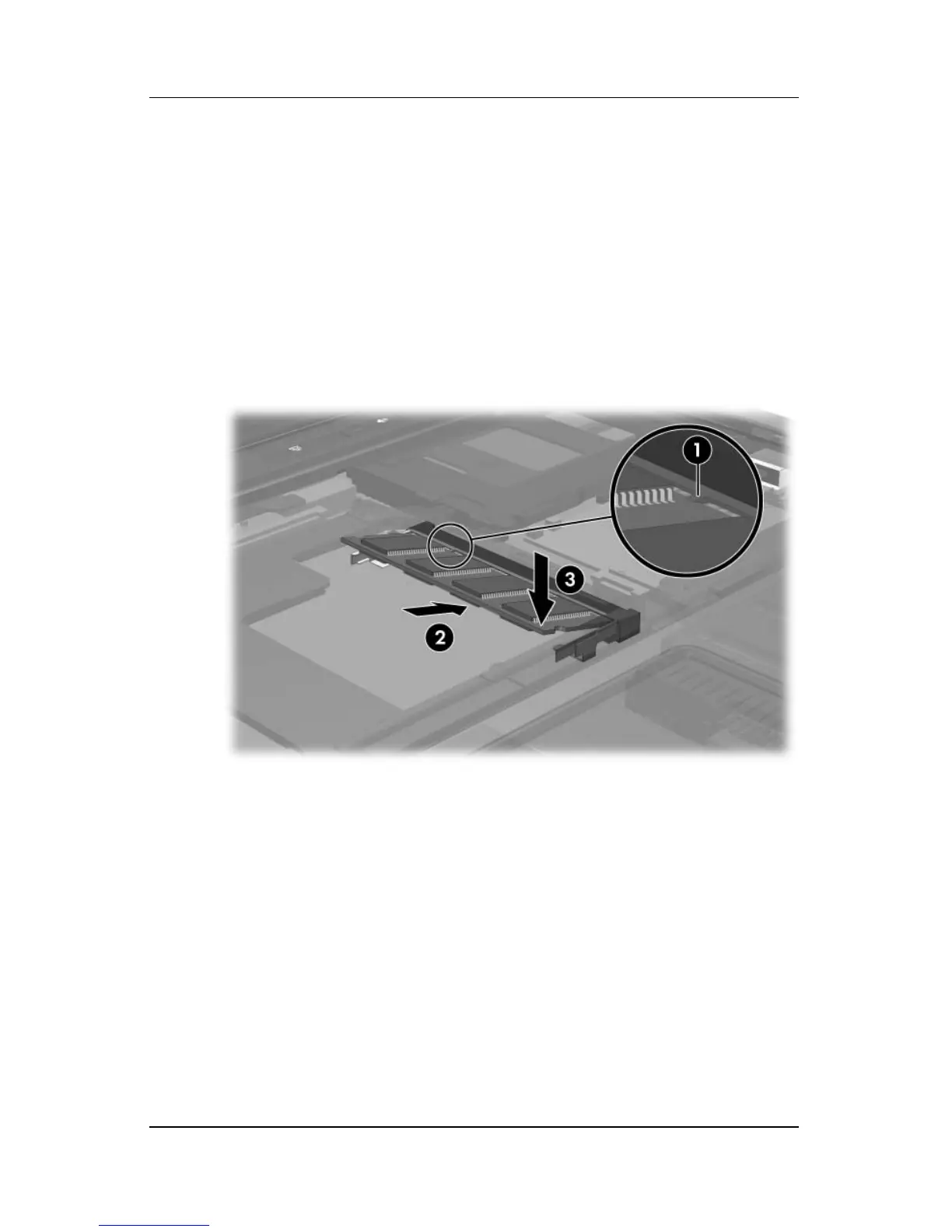

a. Align the keyed (notched) edge 1 of the module with the
tab in the expansion slot.
b. Press the module into the slot 2 from a 45-degree angle
until it is seated.
c. Press the module 3 downward until the retention clips
snap into place.
