Removal and Replacement Procedures
DIMMs
The ProLiant DL360 Generation 3 server ships standard with two Double Data Rate (DDR)
Synchronous DRAM (SDRAM) Dual Inline Memory Modules (DIMMs) installed in DIMM
sockets 1 and 2 (Bank A). Figure 2-35 and Table 2-2 show the location of the DIMM slots on
the system board.
Observe the following guidelines when installing additional memory:
•
•
•
•
•
DDR SDRAM DIMMs must be 266 MHz, PC2100, 3.3 volts, and 72-bits wide, with
Error Correction Code (ECC). No other DIMMS are compatible with the server.
Use only 256-MB, 512-MB, 1-GB, or 2-GB DDR SDRAM DIMMs.
DIMMs must be installed in pairs and be of the same size. Install DIMMs only in one
direction. Be sure to match the notch on the module with the tab on the DIMM slot.
Before seating the DIMM in the slot, ensure that the module key is fully inserted.
Use only HP DDR SDRAM DIMMs. DIMMs from other sources may affect data
integrity.
Install DDR SDRAM DIMM modules one at a time, in sequential order, starting with
DIMM socket 1.

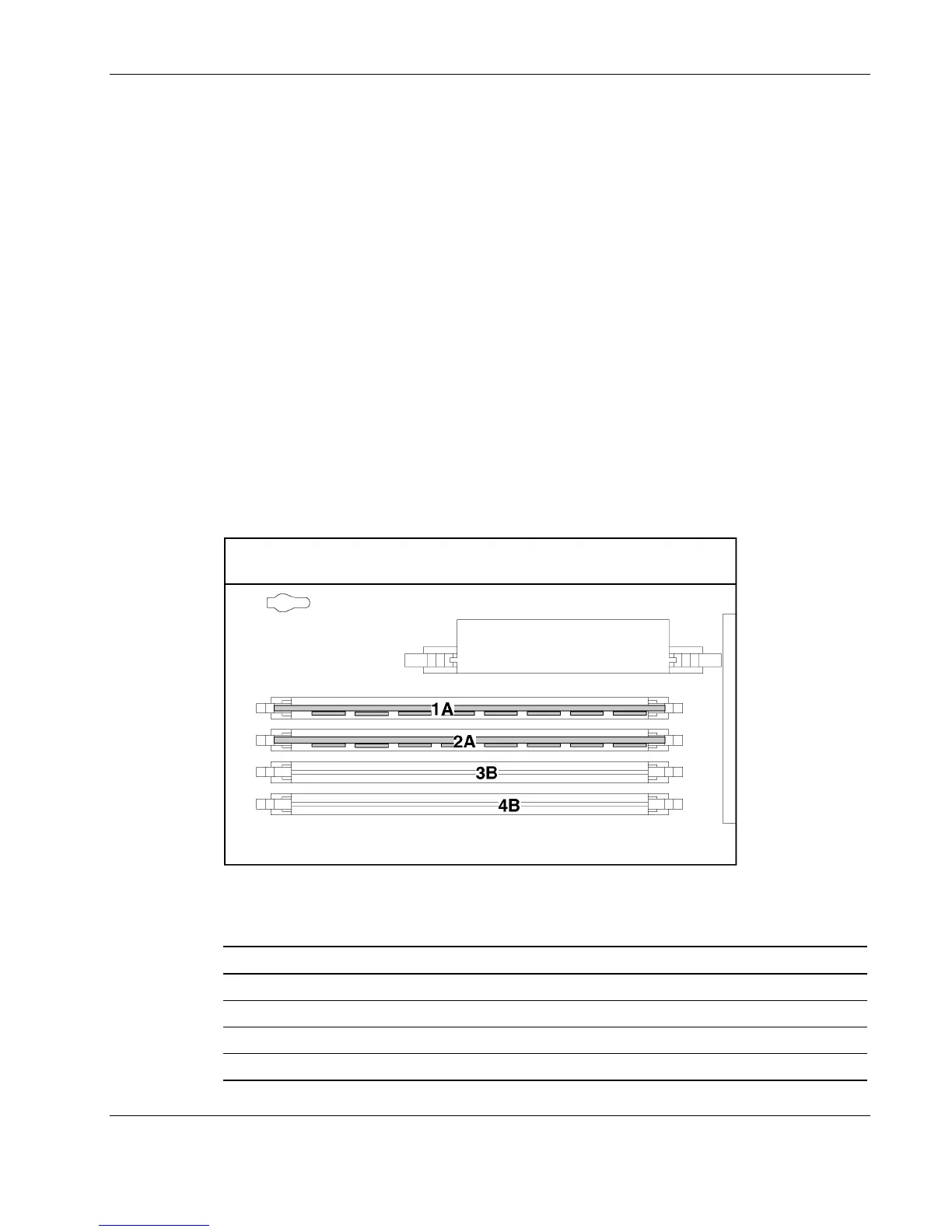

Figure 2-35: DIMM sockets identified on the system board
Table 2-2: DIMM Socket Identification
Item Description
1A DIMM socket 1A populated
2A DIMM socket 2A populated
3B DIMM socket 3B
4B DIMM socket 4B
HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide 2-31
