Illustrated Parts Catalog
Table 1-1: Mechanical Components Spare Parts List
Item Description Spare Part Number
1 Access panel 307526-001
2
Plastics kit
a) Power supply fan baffle
b) Left bezel
305451-001
3
Hardware kit
a) Power supply blank
b) PCI blank
305452-001

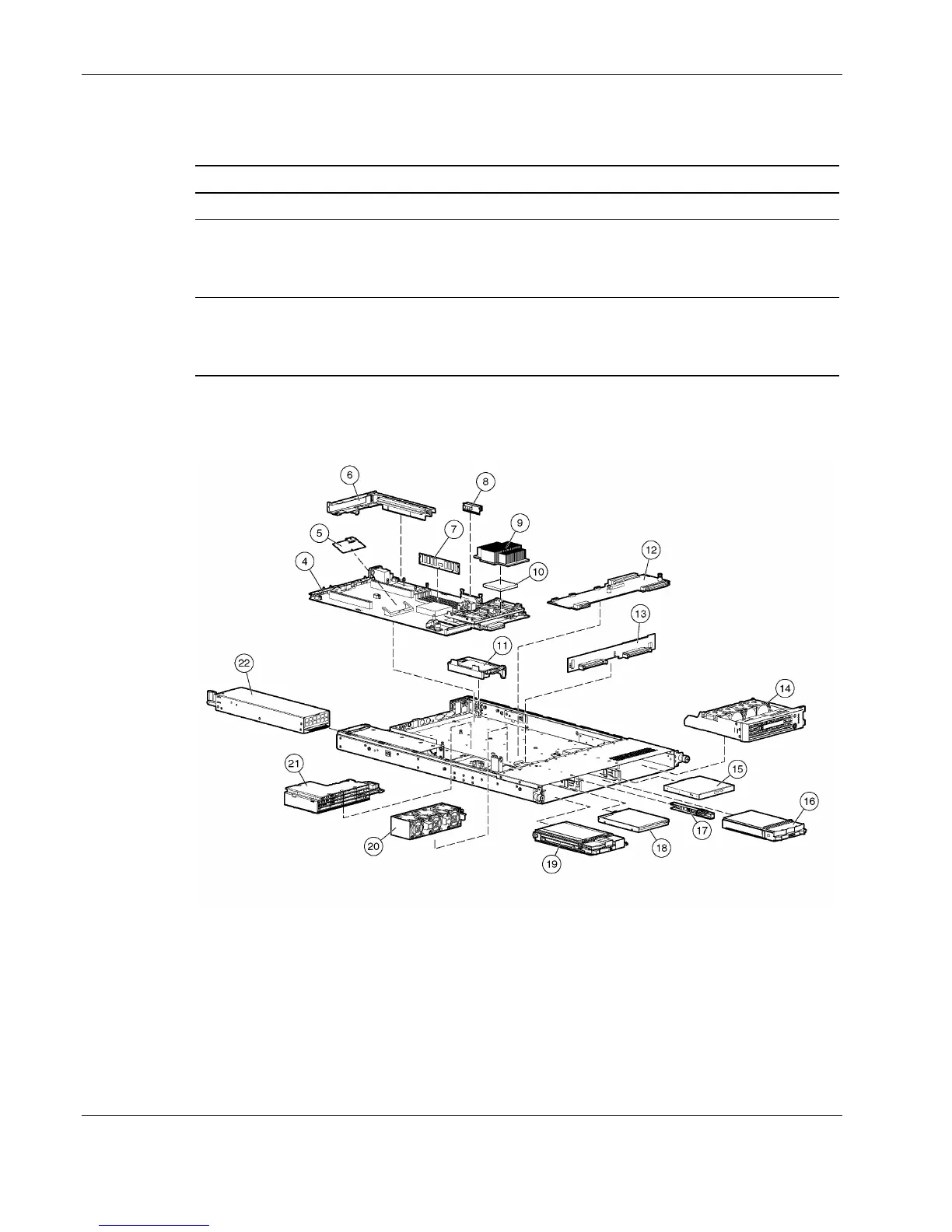

System Components Exploded View
Figure 1-2: System components exploded view
1-2 HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide
