Removal and Replacement Procedures
8. Press in the retaining clips on either side of the I/O system fan assembly (1) and lift the
assembly from the chassis (2).

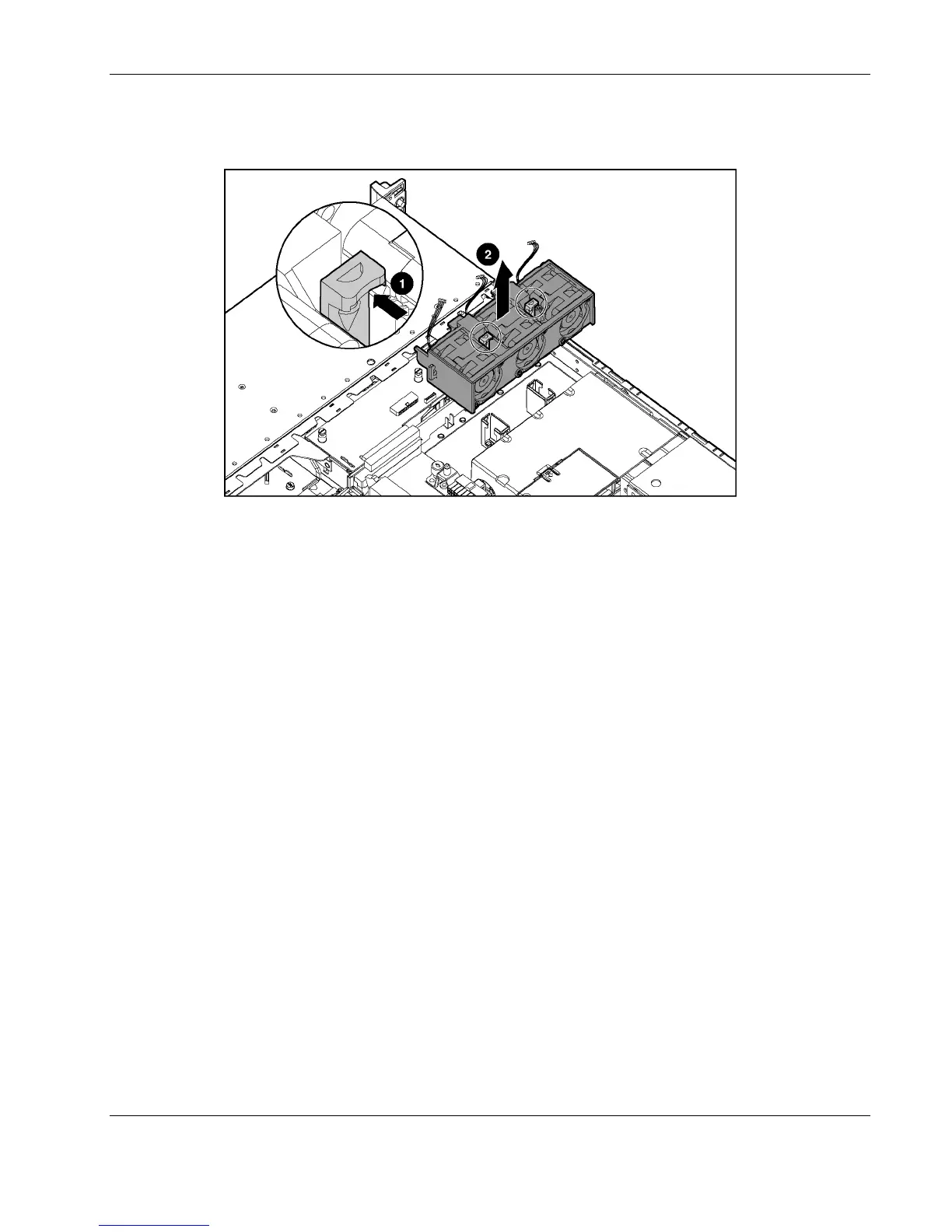

Figure 2-27: Removing the I/O system fan assembly
Reverse steps 1 through 8 to replace the fan assembly.
Power Converter Module
To remove the power converter module:
1. Power down the server. Refer to “Powering Down the Server” earlier in this chapter.
2. Remove the server from the rack. Refer to “Removing the Server from the Rack” earlier
in this chapter.
3. Remove the access panel. Refer to “Server Access Panel” earlier in this chapter.
HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide 2-25
